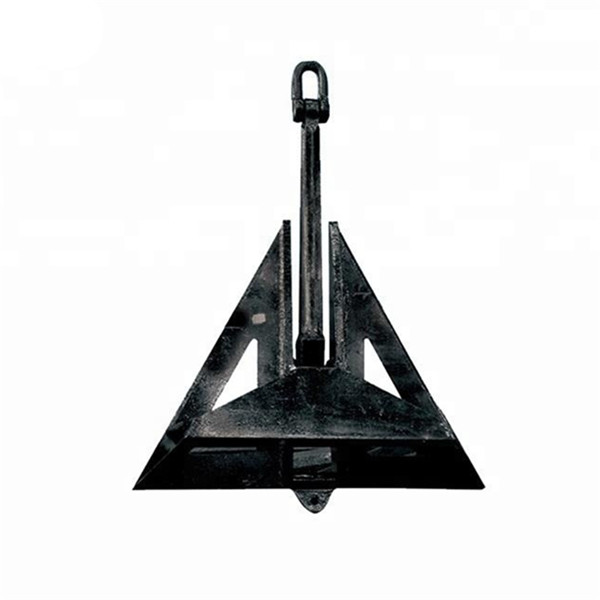

High Horse Power Delta 100kg 20000kg Marine Boat Anchors For Tanker Bulker

High Horse Power Delta 100kg 20000kg Marine Boat Anchors For Tanker Bulker

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS BV LR
Model Number: Delta

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Another Name: Delta HHP High Horse Power Certificate: CCS ABS LR DNV
Weight: 100-20000kg Surface: Black Painted
Usage: Ship Vessel Boat Anchor Application: Marine Boat
Marine Class: BV KR RINA Packing: Naked
High Light:

100kg Marine Boat Anchors

,

20000kg Marine Boat Anchors

,

20000kg high holding power anchor

Product Description

High Horse Power Delta 100kg 20000kg Marine Boat Anchors For Tanker Bulker

Marine Boat Anchors Delta HHP High Horse Power For Tanker Bulker





Specification



NOMINAL
WEIGHT
SIZE(mE)
A B C D E F
300 1200 960 1080 457 1380 45
500 1500 1200 1350 571 1725 50
750 1780 1400 1600_ 665 2110 510
1000 1875 1500 1686 714 2155 62
1500 2250 1800 2024 840 2677 68
2000 2363 1890 2124 900 2715 82
2500 2540 2030 2280 965 2880 82
3000 2700 2160 2430 1028 3105 90
4000 2975 2380 2650 1130 3395 100
5000 3250 2600 2922 1238 3735 110
6000 3450 2760 3060 1316 3923 110
7000 3575 2860 3216 1361 4116 117
7500 3650 2925 3290 1390 4210 117
8000 3730 2990 3360 1420 4300 130
9000 3950 3160 3555 1504 4543 135
10000 4100 3280 3690 1561 4715 140
12000 4300 3440 3942 1638 5017 145
13500 4670 3720 4195 1765 5535 150
15000 4845 3875 4355 1830 5513 150






High Horse Power Delta 100kg 20000kg Marine Boat Anchors For Tanker Bulker 0High Horse Power Delta 100kg 20000kg Marine Boat Anchors For Tanker Bulker 1



Anchor



Anchor generally refers to ship anchor, which is the main component of anchoring equipment. The iron boat anchoring equipment is connected to the boat with iron chains, and the anchor is dropped to the bottom of the water to make the boat stop stable.



There are many types of anchors, and large holding power anchors are commonly used in drilling platforms, as shown in Figure 1. The main feature of this anchor is that its grip can only be guaranteed when the pulling force is horizontal. If the pulling force has a vertical component, the grip is reduced, and the anchor claw will be pulled out of the soil. Experiments show that the grip force of the anchor handle turned up 6° began to decrease, and the grip force of the anchor handle turned up 12° decreased significantly. Therefore, the lower end of the anchor chain must be tangent to the seabed when anchoring, otherwise there is a danger of anchoring. Lifting the anchor is to take advantage of this feature. Pull the anchor chain upward to lift the anchor handle. The anchor loses its grip and finally breaks out.



JUVI Company



1. Chongqing Juvi Marine Machinery Company is an integrated marine technology company that presently specializes in productdesign,production, and sales.

Juvi company is administered by the marine equipment production systems.



2. Our products have sold to regions as far away as Europe, North America and Asia, among others.



3. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience. From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.
