Weight 9Tons Motor Power 75KW Rated Pull 200KN Marine Anchor Winch

Weight 9Tons Motor Power 75KW Rated Pull 200KN Marine Anchor Winch

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Hydraulic Anchor Winch Application: Ship Marine Boat Vessel Yacht
Type 1: Electric Type 2: Hydraulic
Type 3: Diesel Rope: Pp / Steel Wire Rope
Warranty: 1 Year Packing: Wooden Packing
High Light:

75KW marine anchor winch

,

200KN marine anchor winch

,

9Tons marine anchor winch

Product Description

Weight 9Tons Motor Power 75KW Rated Pull 200KN Marine Anchor Winch

Mooring Anchor Winch Wire Rope Single Double Warping Head Tanker Bulker





Specification



Rated pull(KN) Rated speed(m/min) Drum capacity(mm x m) Braking force(KN) Motor power(KW) Weight(T)
20 12 15 x 200 60 11 2.5
30 16 x 200 90 15 3
50 22 x 220 150 22 3.5
80 28 x 220 240 37 4
100 30 x 220 300 45 5
125 32 x 220 375 55 5.5
150 36 x 220 450 75 6
200 10 39.5 x 350 600 75 9
250 43 x 450 750 90 12.5
320 8 47 x 550 960 90 18
400 52 x 600 1000 110 22
500 9 56 x 600 750 180 25

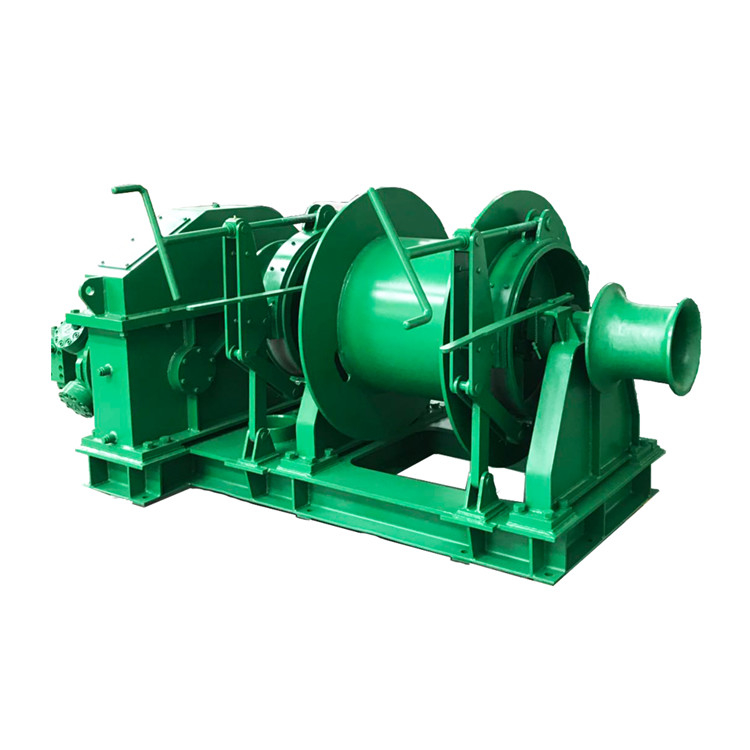

Weight 9Tons Motor Power 75KW Rated Pull 200KN Marine Anchor Winch 0



Scrap standard of winch wire rope



The steel wire ropes used in the hoist, including phosphate coated steel wire rope, galvanized steel wire rope and smooth steel wire rope.



1. Diameter reduction;
Diameter wear exceeding 40% should be scrapped, and the coefficient should be reduced if it does not exceed 40%.
2. Surface corrosion;
When the surface corrosion of the entire wire rope is obvious to the naked eye, the wire rope cannot be used.
3. Structural damage;
The whole strand of wire rope should be scrapped, and the wire rope with broken wires should be used with a lower coefficient.
4. Overload;
Wire rope used for overload shall not be used.



Winch



A winch is a light and small lifting device that uses a reel to wind a steel wire rope or chain to lift or tow heavy objects, also known as a winch. The hoist can lift heavy objects vertically, horizontally or tilt. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building and mine hoisting. It is widely used because of its simple operation, large rope winding volume and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing.



Hidden danger of winch



The winch has the advantages of large carrying capacity, stable and reliable hoisting, and a wide range of operating speeds. It is widely used. However, due to the lack of awareness and effective methods for the safe use of the winch, production accidents are often caused.



The hoist is not firmly fixed and the ground anchor is not firmly set, causing the hoist to shift and overturn.



There is no protective device on the drum to prevent the wire rope from slipping off or the protective device is set unreasonably and unreliably, causing the wire rope to leave the hoist.



The end of the wire rope is not fixed or the fixing does not meet the requirements, causing the wire rope to fall off.



The winch brake failed and could not be positioned.



Inaccurate positioning of the shaft end of the rope drum causes fatigue fracture of the shaft.

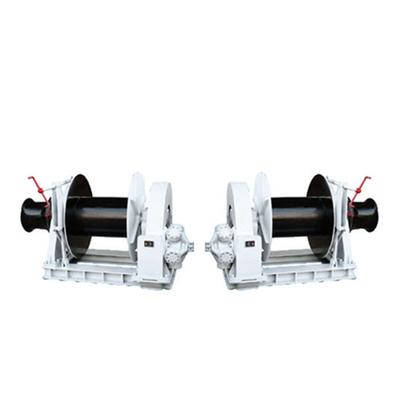

Weight 9Tons Motor Power 75KW Rated Pull 200KN Marine Anchor Winch 1
