Gearbox Motor Control Lever Band Brake 20KN 30KN Yacht Marine Electric Winch

Gearbox Motor Control Lever Band Brake 20KN 30KN Yacht Marine Electric Winch

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Electric Anchor Winch Application: Ship Marine Boat Tanker Bulker
Type 1: Electric Type 2: Hydraulic
Type 3: Diesel Rope: Rope
Warranty: 1 Year MOQ: 1 Set
High Light:

20KN Marine Electric Winch

,

30KN Marine Electric Winch

,

20KN electric yacht winches

Product Description

Gearbox Motor Control Lever Band Brake 20KN 30KN Yacht Marine Electric Winch

Electric Winch For Boat Ship Vessel Yacht With Gearbox Motor Control Lever Band Brake





Specification



Rated pull Rated speed Drum capacity Braking force Motor power Weight
(KN) (m/min) (mm x m) (KN) (KW) (T)
20 12 15 x 200 60 11 2.5
30 12 16 x 200 90 15 3
50 12 22 x 220 150 22 3.5
80 12 28 x 220 240 37 4
100 12 30 x 220 300 45 5
125 12 32 x 220 375 55 5.5
150 12 36 x 220 450 75 6
200 10 39.5 x 350 600 75 9
250 10 43 x 450 750 90 12.5
320 8 47 x 550 960 90 18
400 8 52 x 600 1000 110 22
500 9 56 x 600 750 180 25

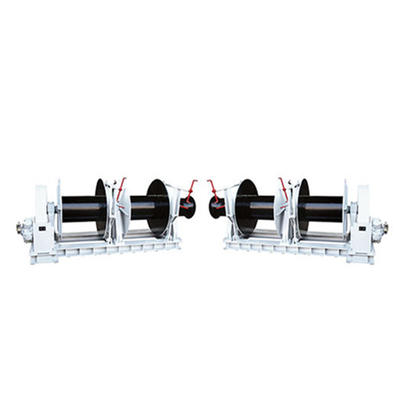

Gearbox Motor Control Lever Band Brake 20KN 30KN Yacht Marine Electric Winch 0



Slow winch: A winch with a wire rope rated speed of about 7-12m/min on the drum.
Fast winch: a winch with a wire rope rated speed of about 30m/min on the drum.
Electric winch: A winch that uses an electric motor as power and drives the drum to rotate.
Speed-regulating winch: a winch with adjustable speed control.
Hand winch: A winch that uses manpower as the power to rotate the drum through a driving device.

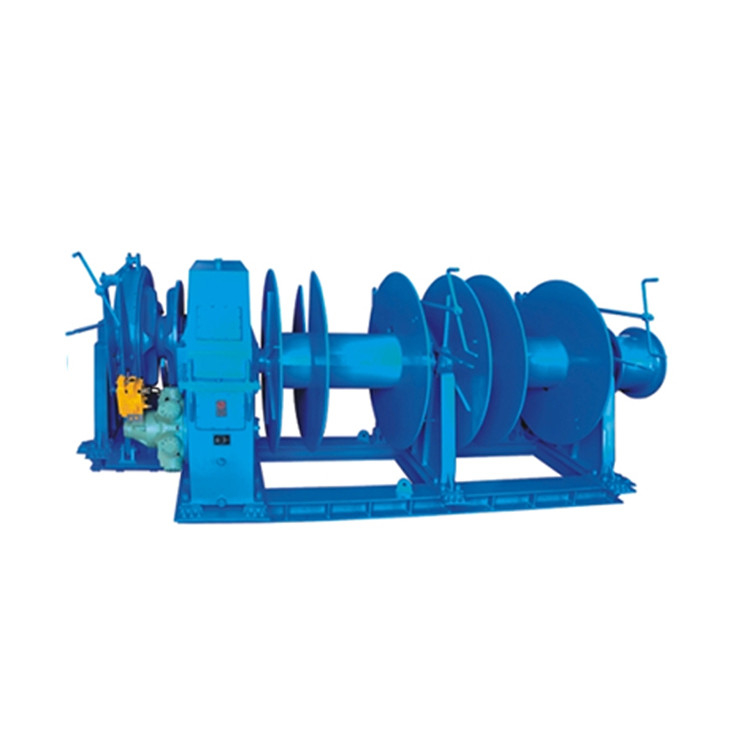

Gearbox Motor Control Lever Band Brake 20KN 30KN Yacht Marine Electric Winch 1



Classification of winch



Large-tonnage non-standard hoist: mainly used for hoisting, pulling, pushing and dragging heavy objects. Such as the installation and disassembly of various large and medium-sized concrete, steel structure and mechanical equipment. Its structure is characterized by orderly arrangement of wire ropes, reliable installation with cranes, suitable for road and bridge projects such as wharfs, bridges, ports, and large-scale factories and mines installation equipment. It is a way to use external force (such as electric motors) to drive him to run, and then use electromagnetic brakes and locks. The brake controls it to not run freely without power. At the same time, after being driven by the motor to decelerate, it drives a wheel to run, on which a steel cable or other things can be wound.



Generally, the hoist that lifts more than 30 tons is a large-tonnage hoist. There are only a few large-tonnage hoist technologies in China, and the maximum tonnage is 65 tons. Mainly subdivided into JK (fast), JM, JMW (slow), JT (speed regulation), JKL, 2JKL hand-controlled fast and other series of winches, which are widely used in industry and mining, metallurgy, lifting, construction, chemical industry, roads and bridges, hydropower Installation and other lifting industries.



JUVI Company



Our products have sold to regions as far away as Europe, North America and Asia, among others. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience.



From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.
