• Length 220mm Mooring Chains Diameter 16mm Marine Boat Accessory
  • Length 220mm Mooring Chains Diameter 16mm Marine Boat Accessory
Length 220mm Mooring Chains Diameter 16mm Marine Boat Accessory

Length 220mm Mooring Chains Diameter 16mm Marine Boat Accessory

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS,BV,LR,ABS,KR
Model Number: JVL-3

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: $6.5/meter
Packaging Details: Standard export package
Delivery Time: 25-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000meters/Month
Get Best Price Contact Now

Detail Information

Material: Steel Color: Black
Size: Customized Application: Marine/Ship/Vessel
Product Name: Stud Link Chain Cables Diameter: 16mm-132mm
Packing: Standard Exported Package Warranty: 1 Year
High Light:

220mm Marine Boat Accessory

,

JVL-3 16mm Marine Boat Accessory

,

220mm Marine Anchor Chain

Product Description

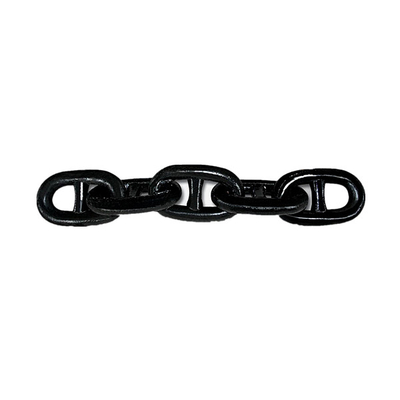

Length 220mm Mooring Chains Diameter 16mm Marine Boat Accessory

Vessel Chains Ship Equipments Steel Anchor Chain Grade Stud Mooring Chains Stud Link Chain Cables





Features:


* Three materials for your reference: Carbon steel, stainless steel, Galvanized steel
* Can be customized according to customer needs
* 24-hour online service
* For more details, please feel free to contact Customer Service.



Contact Debbie Liu for more details!



Chian Equipment Tables
Stud Link Chain Cables Anchor for Ship Towing Lines Mooring Lines
Diameter (mm) Total Length (mm) Number Anchor H.H.P Anchor Length (m) MBL (KN) Quantity Length (m) MBL (KN)
Grade1 Grade2 Grade3 Weight (kg)
14 12.5 220 2 180 135 180 100 3 80 35
16 14 220 2 240 180 180 100 3 100 40
17.5 16 247.5 2 300 225 180 100 3 110 40
19 17.5 247.5 2 360 270 180 100 3 110 45
20.5 17.5 275 2 420 315 180 100 3 120 50
22 19 275 2 480 360 180 100 3 120 55
24 20.5 302.5 2 570 430 180 110 3 120 60
26 22 20.5 302.5 3 660 495 180 130 4 120 65
28 24 22 330 3 780 585 180 150 4 120 70
30 26 24 357.5 3 900 675 180 175 4 140 80
32 28 24 357.5 3 1020 765 180 200 4 140 85
34 30 26 385 3 1140 855 180 225 4 140 95
36 32 28 385 3 1290 970 180 250 4 140 100
38 34 30 412.5 3 1440 1080 180 275 4 140 110
40 34 30 412.5 3 1590 1195 190 305 4 160 120
42 36 32 440 3 1740 1305 190 340 4 160 130
44 38 34 440 3 1920 1440 190 370 4 160 145
46 40 36 440 3 2100 1575 190 405 4 160 160
48 42 36 467.5 3 2280 1710 190 440 4 170 170
50 44 38 467.5 3 2460 1845 190 480 4 170 185
52 46 40 467.5 3 2640 1980 190 520 4 170 200
54 48 42 495 3 2850 2140 190 560 4 170 215
56 50 44 495 3 3060 2295 200 600 4 180 230
58 50 46 495 3 3300 2475 200 645 4 180 250
60 52 46 522.5 3 3540 2655 200 690 4 180 270
62 54 48 522.5 3 3780 2835 200 740 4 180 285
64 56 50 522.5 3 4050 3040 200 785 4 180 305
66 58 50 550 3 4320 3240 200 835 4 180 325
68 60 52 550 3 4590 3445 220 890 5 190 325
70 62 54 550 3 4890 3670 220 940 5 190 335
73 64 56 577.5 3 5250 3940 220 1025 5 190 350
76 66 58 577.5 3 5610 4210 220 1110 5 190 375
78 68 60 577.5 3 6000 4500 220 1170 5 190 400
81 70 62 605 3 6450 4840 240 1260 5 200 425
84 73 64 605 3 6900 5175 240 1355 5 200 450
87 76 66 605 3 7350 5515 240 1455 5 200 480
90 78 68 632.5 3 7800 5850 260 1470 6 200 480
92 81 70 632.5 3 8300 6225 260 1470 6 200 490
95 84 73 632.5 3 8700 6525 260 1470 6 200 500
97 84 76 660 3 9300 6975 280 1470 6 200 520
100 87 78 660 3 9900 7425 280 1470 6 200 550
