400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad

400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: D Rubber Fender Certificate: CCS ABS LR DNV BV KR RINA
Processing Service: Moulding Feature: Durable,Sealing Performance,Wear Resistance
Type 1: D Fender / DA Arch Fender/ V Fender/ Cell Fender Type 2: Cone Fender/ Cylindrical Fender/ Ladder Fender
Type 3: Roller Fender/ Square Fender/ W Fender/ Wing Fender Accessories: Plate, Nut, Bolt, Washer.
High Light:

400x1000mm Arch rubber fender

,

400x1500mm Arch rubber fender

,

400x2000mm Arch rubber fender

Product Description

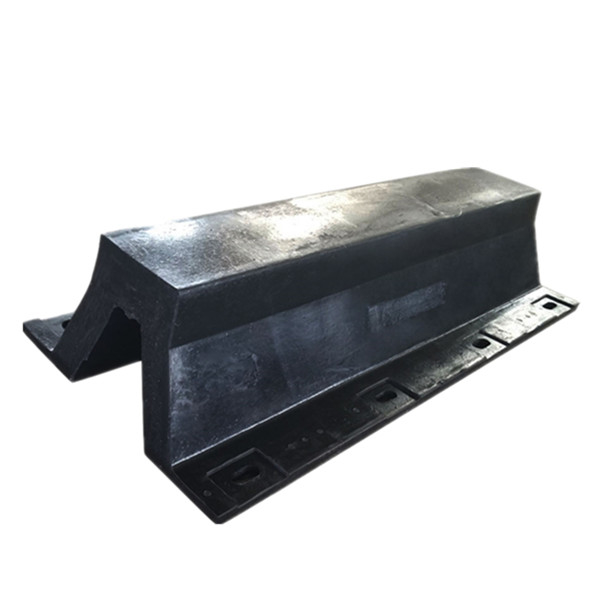

400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad

DA Super Arch Rubber Fender Wuth UHMW-PE Face Pad For Ship Vessel Port Dock Berthing





Specification



Spec Size
H L L1 C Q n B b1 b2
TLT-BA200x1000 200 1000 1100 120 860 1 145 320 400
TET-BA200x1500 200 1500 1600 120 680 2 145 320 400
TLT-BA200*2000 200 2000 2100   620 3 145 320 400
TLT-BA200x2500 200 2500 2600 122.5 785 4 145 320 400
TLT-BA200x3000 200 3000 3100   715 5 145 320 400
TLTBA200x3500 200 3500 3600 120 672 1 145 320 400
TILT-BA250x1000 250 1000 1125   865 2 164 410 500
TLT-BA250x1500 250 ;1500 1625 132.5 680 3 164 410 500
TLT-BA250*2000 250 2000 2125 132.5 620 4 164 410 500
TLT-BA250x2500 250 2500 262 127.5 790 5 164 410 500
TLT-BA250x3000 250 3000 3125 1325 715 1 164 410 500
TLT-BA250x3500 250 3500 3625 130 673 2 164 410 50O
TLT-BA300x1000 300 1000 1150 140 870 3 225 490 600
TLT-BA300x1500 300 1500 1650   685 4 225 490 600
TLT-BA300x2000 300 2000 2150 137.5 625 5 225 490 600
TLT-BA300x2500 300 2500 2650 140 790 1 22S 490 600
TLTBA300x3000 300 3000 3150,   715 2 225 490 600
TLFBA300x3500 300 3500 3650 140 674 3 225 490 600
TLT-BA400x1000 400 1000 1200 150 900 4 300 670 800
TLT-BA400x1500 400 1500 1700 150 700 5 300 670 800
TLT-BA400x2000 400 2000 2200 1475 635 1 300 670 800
TLT-BA400x2500 400 2500 2700 150 800 2 300 670 800
TLT-BA400x3000 400 3000 3200 150 725 3 300 670 800
TLT-BA400x3500 400 3500 3700 150 680 4 300 670 800
TLT-BA500x1000 500 1000 1250   930 5 375 840 1000
TLT-BA500x1500 500 1500 1750 160 715 1 375 840 1000
TLT-BA500*2000 500 2000 2250 157.5 645 2 375 840 1000
TLT-BA500x2500 500 2500 2750 160 810 3 375 840 1000
TLT-BA500x3000 500 3000 3250 165 730 4 375 840 1000
TLT-BA500x3500 500 3500 3750 160 686 5 375 840 1000
TLT-BA600x1000 60 1000 1300   960 1 450 1010 1200



1. Higher Energy: Absorption with lower Reaction Force than normal V type Rubber Fender.



2. More reasonable structure with high durability.



3. Flexible and convenient installation, wide selection of sizes and performances.



4. Front Panel with UHMW-PE Face Pad could be Installed on the top of fender to reduce surface pressure and friction factor with ship which keeps lower shear strength while vessel berthing.

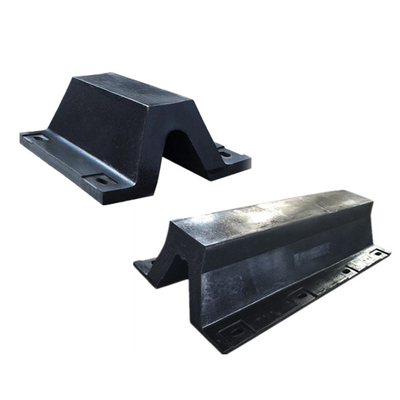

400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad 0400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad 1

400x1000mm 400x1500mm Arch Rubber Fender With UHMW-PE Face Pad 2

Rubber fender



Rubber fenders, also known as rubber handguards, are installed on piers or ships to absorb collision energy between ships and piers or ships when they are docked or moored, and protect ships and piers from damage.



Transport and storage



1. Transportation



1) The mode of chord protection is automobile transportation.



2) During the loading and unloading process, the fender should be properly hoisted. It should be kept clean, not thrown or bumped, or hooked, punctured, or scratched with hard objects. The fender must be placed firmly.



3) The placed goods should be tied firmly to ensure that the goods are not shifted or loosened during the entire transportation process.



4) After the goods arrive at the designated place, use suitable lifting equipment to unload the truck to avoid damage and collision.



2. Storage



1) When storing rubber fender products, avoid direct sunlight, avoid rain and snow, and avoid contact with acids, alkalis, oils and organic solvents; keep the storage temperature at -15℃-40℃ away from the heat source 1 meter away .



2) The fender storage area is about 400 square meters. Examples of the selection of marine inflatable rubber fenders for small and medium-sized and large ships. The size of the inflatable rubber fender ranges from 500×1000 mm to 4500×12000 mm, including all standard and non-standard sizes.
