Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender

Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: BV, CCS, etc
Model Number: Cell Rubber Fender

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Nude packing/ Pallet
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Rubber Fender Super Cell Rubber Fender For Jetty Port Dock Material: 100% Original Rubber Fender
Class Certificate: ABS, BV, CCS Application: Marine Dock, Port, Jetty
Type: Cell Rubber Fender MOQ: 1PC
Size: Customized Color: Black
High Light:

3000mm cell rubber fender

,

800mm cell rubber fender

,

18500kg cell rubber fender

Product Description

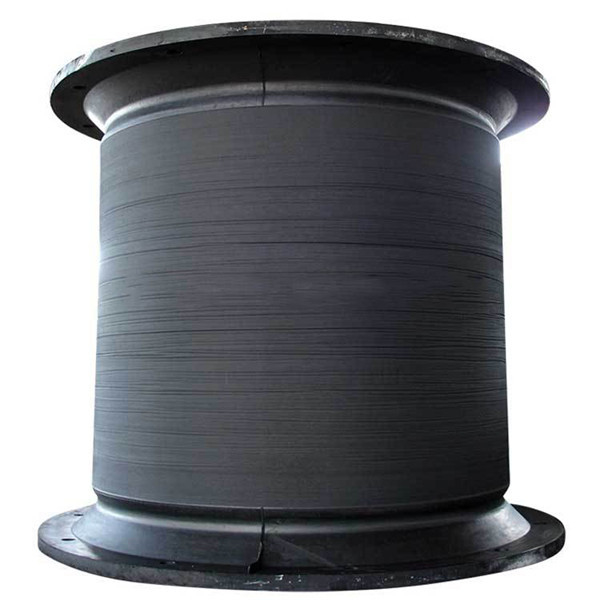

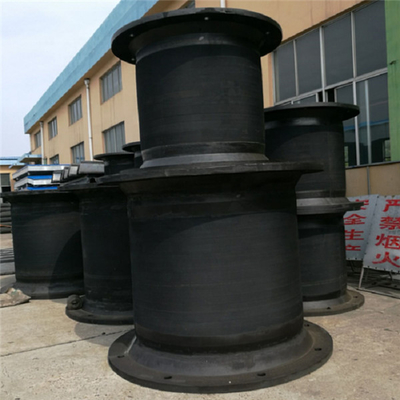

Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender

Marine Rubber Fender Super Cell Rubber Fender For Jetty Port Dock​





Features of Cell Rubber Fender



1. High energy absorption with low reaction force.

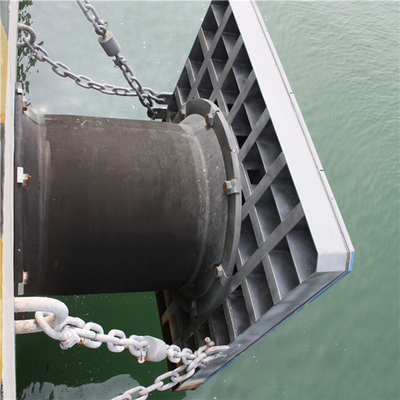

2. Frontal Panel can reduce the surface pressure to the ship, surface pressure could be controlled below 200KN/m2, t is suited to berth large ship.
3. UHMW-PE pad is fixed with Frontal Panel to lower the friction factor between ship and fender system, this can effectively extend the service life of fender system through reducing the shear force.
4. Super Cell Rubber Fender has excellent multi direction angular performance.



The correction factor of Reaction Force and Energy Absorption while slant compression for Super Cell Rubber Fender, it's for reference only.





Specifications



Unit: mm

Spec. H Dia.1 Dia. 2 n Dia. d MD L Weight
(kg)
500H 500 550 650 4 32 24 300 111
630H 630 700 840 4 39 30 330 230
800H 800 900 1050 6 40 32 360 412
1000H 1000 1100 1300 6 47 39 430 825
1150H 1150 1300 1500 6 50 42 500 1210
1250H 1250 1450 1650 6 53 45 500 1500
1450H 1450 1650 1850 6 61 52 570 2310
1600H 1600 1800 2000 8 61 52 570 3030
1700H 1700 1900 2100 8 66 56 620 3700
2000H 2000 2000 2200 8 74 64 700 5260
2250H 2250 2300 2550 10 74 64 700 7500
2500H 2500 2700 2950 10 74 64 700 10750
3000H 3000 3150 3350 12 90 76 800 18500





Our Rubber Fender Type



Super cell rubber fender, Cone rubber fender, Arch V rubber fender, V rubber fender, cylinder rubber fender, Tug rubber fender for ship, D type rubber fender, GD(Wing-D) rubber fender, ME elements rubber fender, Ladder rubber fender, Floating fender, foam filled fender, Pneumatic rubber fender, roller fender, Square fender, BF fender, corner fender, TT π rubber fender, W fender





Introduction



The rubber fender is an elastic buffer device used on the edge of a wharf or ship. It is mainly used to slow down the impact force between the ship and the wharf or ship during berthing or mooring, and reduce or eliminate damage to the ship and wharf.

1. Cylindrical rubber fender

Features: Low reaction force, small surface pressure, reasonable energy absorption; strong adaptability to ship rolling and pitching when berthing, not affected by the size of the ship, wide use, convenient installation and maintenance, especially suitable for old-fashioned wharves.

2. Semi-circular (D type) rubber fender

Features: moderate reaction force, higher energy absorption than cylindrical type; easier to install and work; due to the small bottom width, it is especially suitable for frame-type docks and shipboard installations.

3. DO type rubber fender

Features: The reaction energy absorption is higher than that of the D-type fender; the installation strength and service life are greatly improved than that of the D-type fender; it is suitable for frame-type docks.

Arched (V-shaped) rubber fender features: moderate reaction force, high energy absorption; firm installation and convenient; Suitable for all types of terminals.

4. DA type rubber fender

Features: High energy absorption and low reaction force; The product has higher stress dispersion and long service life; The front end is equipped with a defensive plate to reduce surface pressure; Complete specifications and various installation methods; Easy to replace.

5. Drum rubber fender

Features: low reaction force and large energy absorption; surface pressure below 25 tons/m2; small reduction in mechanical properties of inclined compression; drum-shaped rubber fender: features low reaction force and large energy absorption; easy installation; generally suitable for large and medium-sized pier.





Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender 0Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender 1Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender 2Berth Large Ship Height 3000mm Length 800mm Cell Rubber Fender 3
