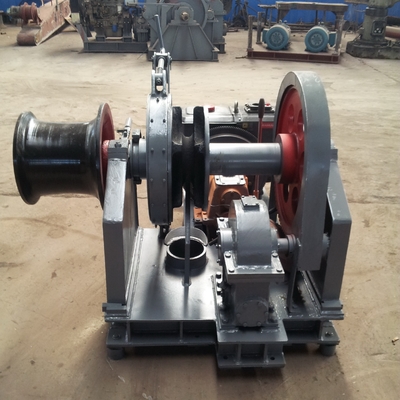

Drum Capacity 8x100m / 30x200m Remote Control Marine Electric Winch

Drum Capacity 8x100m / 30x200m Remote Control Marine Electric Winch

Product Details:

Place of Origin: China
Brand Name: JV
Certification: LR,CCS,ABS,BV,KR,IRS
Model Number: JVL-17

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $1500-15000/Set
Packaging Details: Standard export package
Delivery Time: 45-65 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Application: Ship Power Source: Electric
Capacity: 60-7500KN Product Name: Electric Marine Winch
Color: Matte Black Or Customer Requirement Material: Steel
Warranty: 1 Year Power: 12v/24v
High Light:

8x100m Marine Electric Winch

,

30x200m Marine Electric Winch

,

8x100melectric mooring winch

Product Description

Drum Capacity 8x100m / 30x200m Remote Control Marine Electric Winch

2 Ton Electric Winch Marine Electric Winch High-Speed Electric Winch Remote Control Electric Mooring Winch



Electric Winch



Electric winches are widely used in places with heavy work and large traction requirements. The electric motor of the single-drum electric winch (pictured) drives the drum through the reducer, and a brake is installed between the electric motor and the input shaft of the reducer. In order to meet the needs of lifting, traction, and rotation, there are also double drum and multi-drum winches.



Marine winches series: marine electric winches, marine pneumatic winches, marine ladder winches, marine hand-cranked winches, marine steel rope winches, and marine explosion-proof double drum winches.



Winch



A winch is a light and small lifting device that uses a reel to wind a steel wire rope or chain to lift or tow heavy objects, also known as a winch. The hoist can lift heavy objects vertically, horizontally, or tilt. There are three types of winches: manual winches, electric winches, and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building, and mine hoisting. It is widely used because of its simple operation, large rope winding volume, and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing.



The hidden danger of winch



The winch has the advantages of large carrying capacity, stable and reliable hoisting, and a wide range of operating speeds. It is widely used. However, due to the lack of awareness and effective methods for the safe use of the winch, production accidents are often caused.



The hoist is not firmly fixed and the ground anchor is not firmly set, causing the hoist to shift and overturn.



There is no protective device on the drum to prevent the wire rope from slipping off or the protective device is set unreasonably and unreliably, causing the wire rope to leave the hoist.



Special winch models



1, Hydraulic winch

2, Frequency conversion winch

3, Double drum winch

4, Hand brake lever-type double brake winch

5, Hoist with stopper

6, Double brake winch



Main specification and parameter for Electric mooring winch
Specification of Electric Winch
Rated Pull
(kN)
Rated Speed
(m/min)
Drum Capacity
(m)
Motor Power
(Kw)
5KN
5
≥12
Φ8x100
3/1.2
50KN
50
≥15
Φ20.5x180
30/30/22
100KN
100
≥15
Φ30x200
45/45/30
200KN
200
≥9.6
Φ41x250
60/60/45
400KN
400
≥7.8
Φ56x250
85/85/64
600KN
600
≥6
Φ64x250
85/85/65
1000KN
1000
≥4
Φ95x250
85/85/66
2000KN
2000
≥4
Φ100x250
180/180/135
