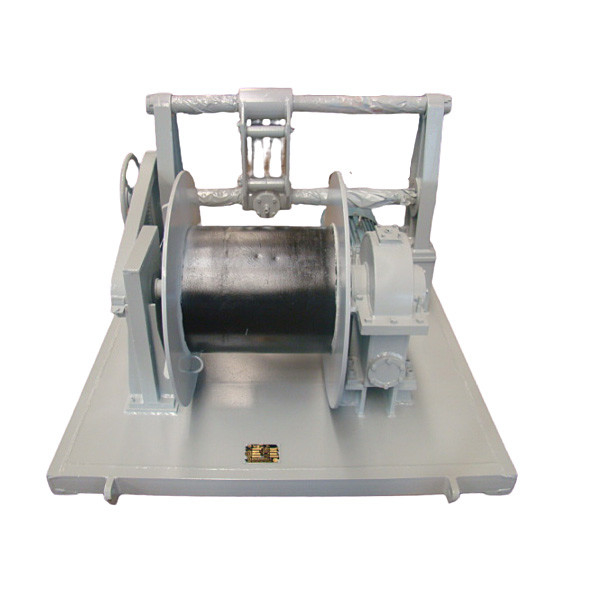

5 Ton Pole Changing Rated Pull 50kN DC12V / 24V Marine Electric Winch

5 Ton Pole Changing Rated Pull 50kN DC12V / 24V Marine Electric Winch

Product Details:

Place of Origin: China
Brand Name: JV
Certification: LR,CCS,ABS,KR
Model Number: JVL-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $1500-15000/Set
Packaging Details: Standard export package
Delivery Time: 45-65 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Application: Boat Power Source: Electric
Product Name: 12/24v Electric Boat Winch Marine Drum Anchor Winch For Sale Color: Customer Requirement
Motor: 12v/24v Rope Capacity: 10-100T
Warranty: 1 Year Voltage: DC12V/24V
High Light:

50kN Marine Electric Winch

,

DC12V Marine Electric Winch

,

50kN electric mooring winch

Product Description

5 Ton Pole Changing Rated Pull 50kN DC12V / 24V Marine Electric Winch

Ship Electric Power Winch Vessels Pole-Changing Electric Mooring Winch 5 Ton Electric Winch





Product description:



This product is suitable for ship mooring, lifting and towing heavy objects in offshore platforms and engineering fields.


Technical features:


1. Manual brake: During the use of the winch, the brake system is equipped with manual brake and manual brake.
2. Convenient operation: The winch control valve and air motor are combined design, only one control handle can be operated, and the speed of the winch can be controlled at the same time.
3. Pneumatic clutch device: by operating the lever valve, you can control the four operating states of the reel and the anchor rope barrel to be separated, synchronized, and completely separated



Ship winch



Marine winches are light and small lifting equipment (see hoisting machinery) that use a reel to wind a wire rope or chain to lift or tow heavy objects, also known as a hoist. The winch can be used alone or as a component in machinery such as lifting, road construction, and mine hoisting. It is widely used because of its simple operation, large rope winding volume, and convenient displacement.



There are two types of winches, manual and electric. The transmission mechanism of the handle rotation of the manual winch is equipped with a stopper (ratchet and pawl), which can keep the heavy object in the required position. The manual winch used for assembling or lifting heavy objects should also be equipped with safety handles and brakes. Manual winches are generally used in places with small lifting capacity, poor facility conditions, or no power supply.

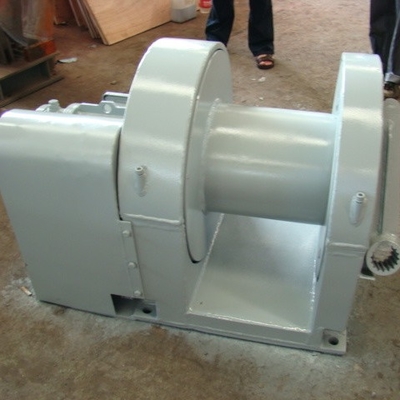

Electric winches are widely used in places with heavy work and large traction requirements. The electric motor of the single-drum electric winch (pictured) drives the drum through the reducer, and a brake is installed between the electric motor and the input shaft of the reducer. In order to meet the needs of lifting, traction, and rotation, there are also double drum and multi-drum winches.



Main specification and parameter for Electric mooring winch
Specification of Electric Winch
Rated Pull
(kN)
Rated Speed
(m/min)
Drum Capacity
(m)
Motor Power
(Kw)
5KN
5
≥12
Φ8x100
3/1.2
50KN
50
≥15
Φ20.5x180
30/30/22
100KN
100
≥15
Φ30x200
45/45/30
200KN
200
≥9.6
Φ41x250
60/60/45
400KN
400
≥7.8
Φ56x250
85/85/64
600KN
600
≥6
Φ64x250
85/85/65
1000KN
1000
≥4
Φ95x250
85/85/66
2000KN
2000
≥4
Φ100x250
180/180/135
