280KN 1400RPM Flywheel Advance Gear Box For Large Engineering Boats

280KN 1400RPM Flywheel Advance Gear Box For Large Engineering Boats

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Model Number: HCD2700

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Marine Gearbox ADVANCE Application: Ship Marine Boat Vessel Yacht
Input Speed: 500-1400r/min Control Way: Push-and-pull Flexible Shaft, Electrically, Pneumatically
Rated Thrust: 280KN Flywheel: Depend On Engine Flywheel
Center Distance: 630mm Bell Housing: NO
High Light:

280KN advance gear box

,

1400RPM advance gear box

,

630mm advance gear box

Product Description

280KN 1400RPM Flywheel Advance Gear Box For Large Engineering Boats

1400RPM Advance Gear Box For Large Fishing Tug Engineering Boats 280KN Flywheel





Specification



Input speed 500-1400r/min
Reduction ratio 3.65,4.042,4.5,5.05 Trans. capacity 2.05kw/r/min
5.476 1.96kw/r/min
6.105 1.7kw/r/min
Control way Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust 280KN
Center distance 630mm
L×W×H 1400x1780x1530mm
Net weight 6000kg
Flywheel Depend on engine flywheel
Bell housing NO

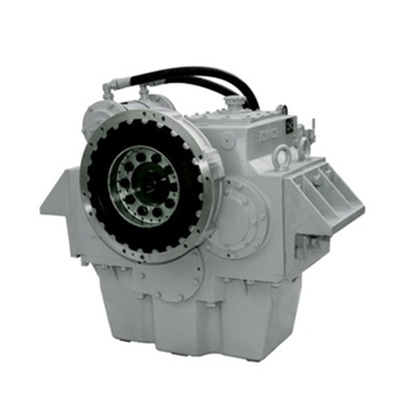

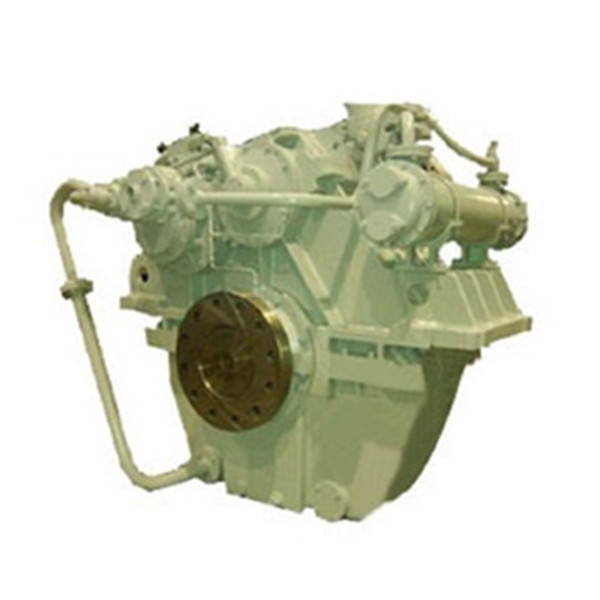

Marine Gearbox HCD2700 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.



Marine Gearbox HCD2700 is suitable for large fishing, tug and various engineering boats.



280KN 1400RPM Flywheel Advance Gear Box For Large Engineering Boats 0280KN 1400RPM Flywheel Advance Gear Box For Large Engineering Boats 1



Gearbox



Gearboxes have a wide range of applications, such as in wind turbines. Gearboxes are an important mechanical component that is widely used in wind turbines. Its main function is to transfer the power generated by the wind wheel under the action of wind to the generator and make it get the corresponding speed.



Generally, the rotation speed of the wind wheel is very low, far less than the rotation speed required by the generator to generate electricity. It must be realized by the speed increasing effect of the gear pair of the gear box, so the gear box is also called the speed increasing box.



Bearing life of Gearbox



Statistics show that about 50% of wind power gearbox failures are still related to the selection, manufacture, lubrication or use of bearings. At present, due to lagging technical conditions and other reasons, many of the core components of domestic units above the megawatt level, such as motors, gearboxes, blades, electronic control equipment and yaw systems, are imported and used in the gears of these large wind turbines. Box bearings, yaw bearings, pitch bearings and spindle bearings are all imported. Therefore, a more accurate bearing life calculation method is particularly important for the design of wind power gearboxes.



Due to the high reliability required for the bearing, the service life of the bearing should usually be no less than 130,000 hours. However, due to too many factors affecting bearing fatigue life, the bearing fatigue life theory still needs to be continuously improved. There is no unified calculation method for bearing life theory at home and abroad that is accepted by all industries.



Factors such as the operating temperature of the bearing, the viscosity and cleanliness of the lubricating oil, and the speed have a great influence on the life of the bearing. When the operating state becomes worse (temperature rise, lower speed, and more pollutants), the bearing life may be greatly reduced. In-depth analysis of various factors affecting the bearing life of wind power gearboxes and researching out a more accurate calculation method for bearing life is the top priority of the domestic bearing industry and even the wind power industry.
