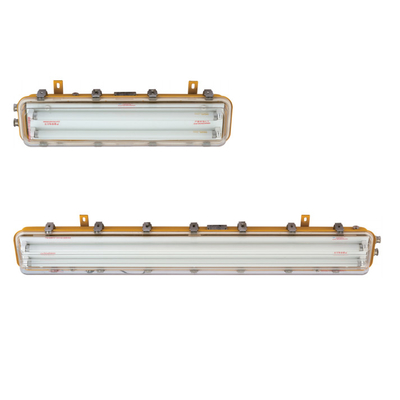

40w Power CFY21-2 Ship Fluorescent Explosion Proof Light Fixture
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Standard export package|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, L/C, Western Union|
|Light Source:||Fluorescent||Input Voltage(v):||220|
|Lamp Power(w):||40||Item Type:||Explosion-proof Lights|
|Color Temperature(cct):||Pure White||Certification:||CE|
|Emitting Color:||White||Product Name:||Explosion Proof Light|
CFY21-2 Explosion Proof Light Fixture,
40w Explosion Proof Light Fixture,
CFY21-2 Marine ceiling light
Ship Fluorescent Light CFY21-2 Explosion Proof Light Fixture IP66 Marine Ceiling Light
The scope of application:
Aplied to ship oil exploit platorm,chemical product and explosive gas place zone 1 or zone 2.
1. The shell is made of good quality steelthe lampshad is good quality transparence PC.
2. Integral type clip,high protection grade.
3.Flameproof safety type structure.
Conform to International IEC standard and GB3836,GB7000
Explosion-proof mark: Exd ICT4
Voltage: 220V/50Hz, 220V/60Hz, 110V/60Hz
Power: 2x 20W
Cable outside diameter:11~ 13
Protection class: IP56
Navigation Signal Lights
|Spot Light||Other Cabin Lamp|
|Searchlight||Explosion-Proof Light & Explosion-Proof Connector|
|Pendant Light||Electrical Connector|
Starboard Light and Portlight:
The red light on the port side and the green light on the starboard side, which are placed on the left and right sides of the highest deck of the ship, each display uninterrupted lights in a horizontal arc of 112.5 degrees. Displayed within 22.5 degrees behind the abbe. The sidelight shield facing the lamp surface shall be painted with matt black paint. The height of the shutter is at least equal to the height of the lamp. For barges with a length of 80 meters or more, red and green sidelights shall be installed at the bow and stern.
A white light located in the middle of the stern. Display uninterrupted lights in a horizontal arc of 135 degrees and the device should make the lights display within 67.5 degrees of each side from directly behind the ship. The height of the masthead light should be as horizontal as possible, but not higher than the sidelight.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products: according to customers' requests.
The design and manufacture of ship lights must comply with the relevant provisions of ship regulations and international conventions, and can be installed and used only after the ship inspection department has passed the inspection and issued a certificate.
In accordance with the provisions of the international conventions, the ship’s related facilities must be equipped with various lamps to display various signals in order to indicate its location, status, and type when the ship is under night sailing, operation or low visibility. , In order to identify and avoid.
The light arc, visibility distance, chromaticity, enclosure protection, and installation position of navigation lights and signal lights have strict regulations.
Marine lighting lamps collectively referred to as lamps used for lighting on ships.
Cabin lights, ceiling lights, walkway lights, emergency lights, floodlights for deck work lighting, searchlights for the long-distance search of targets, explosion-proof lights for use in explosive atmospheres, portable lights for temporary workplaces, and Lighting lamps for living areas, etc.
