• CCS / BV Certification V Type BA500X2000 Marine Rubber Fender
  • CCS / BV Certification V Type BA500X2000 Marine Rubber Fender

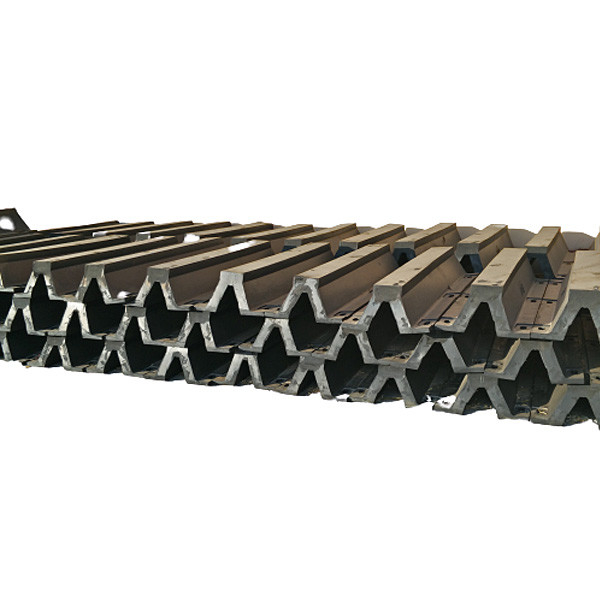

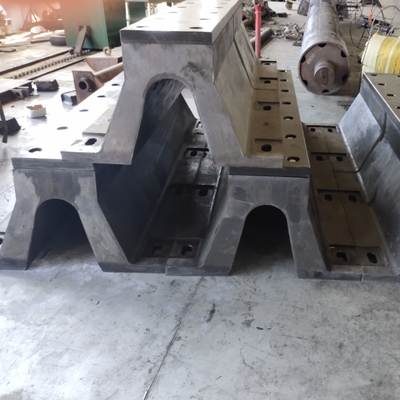

CCS / BV Certification V Type BA500X2000 Marine Rubber Fender

CCS / BV Certification V Type BA500X2000 Marine Rubber Fender

Product Details:

Place of Origin: China
Brand Name: JV
Certification: BV,CCS
Model Number: JVL-40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $800-1500pcs
Packaging Details: Standard export package
Delivery Time: 40-50 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000set/Month
Get Best Price Contact Now

Detail Information

Product Name: Rubber Fender Usage: Protect Shipboard
Name: Floating Marine Rubber Fender Technology: Hot Pressing Molding
Function: Unsurpassed Softness Superior Strength To Provide Max Protection Warranty: 24 Months
Certification: CCS ABS LR BV TUV ISO Packaging: Pallet/Box
High Light:

BA500X2000 Marine Rubber Fender

,

CCS Marine Rubber Fender

,

BA500X2000 ship rubber fender

Product Description

CCS / BV Certification V Type BA500X2000 Marine Rubber Fender

Marine Rubber Fender V Type BA500X2000L Natural Rubber PIANC BV Cert Ship Rubber Fender





Roller Rubber Fender



1. Roller type rubber fender main character: fender can roll with the fender remove, and generate a certain deformation.

2. Roller type fender mainly used in dock, water lock, different limitation water channel, and dock. Sticking out corner etc.



Arch rubber fender



1. Higher Energy Absorption with lower reaction Force than normal type Rubber Fender.

2. More reasonable structure with high durability

3. Flexible and convenient installation, wide selection of sizes, and performances.

4. Front Panel with UHMW-PE Face Pad could be installed on the top of the fender to reduce surface pressure and friction factor with the ship which keeps lower shear strength while vessel berthing.



Classification of Rubber Fender



Generally, rubber fenders can be divided into two categories according to the structure: solid rubber fenders (non-floating type) and floating rubber fenders.



The solid rubber fender (non-floating type) is anti-collision equipment for dock ships with earlier application history and a wide range of applications. According to the force of the rubber fender, it can be divided into shear type, rotating type, and compression type; according to the structure of the fender, solid rubber fender can be divided into D type, cone, drum, sector, rectangle, cylinder Shaped fenders and so on.



Floating rubber fenders can float freely on the water surface, and can be divided into inflatable rubber fenders and filled rubber fenders according to the different internal buffer media.



The inflatable rubber fender uses compressed air as the medium and uses compressed air to do work to consume collision energy.



Foam-filled fenders are also called solid polyurethane fenders. The cushioning medium inside is mainly closed-cell foam materials, such as foamed EVA, foamed polyurethane, and foamed rubber.



Features and applications of Rubber Fender



The solid rubber fender has high energy absorption and reaction force, and at the same time has the advantages of low cost, long service life, simple installation, and maintenance, etc. It is a protective device with more installations in docks and docks.



Floating rubber fender is a relatively new type of fender equipment. Compared with a solid rubber fender, its main features are large compression deformation, large energy absorption, small reaction force, self-floating, and easy installation.



Usually used in ship to ship (ship to ship), ship to wharf (ship to the wharf) barge, docking, and other occasions; due to its self-floating characteristics, it is also particularly suitable for installation on the wharf where the tide level changes greatly.



Among them, the filled rubber fender is especially suitable for applications in harsh environments, such as offshore drilling platforms, due to its maintenance-free and long-life advantages.



Spec. Size
H L L1 C Q n B b1 b2
TJV-BA200x1000 200 1000 1100 120 860 1 145 320 400
TJV-BA 200x1500 200 1500 1600 120 680 2 145 320 400
TJV-BA 200x2000 200 2000 2100 120 620 3 145 320 400
TJV-BA 200x3000 200 3000 3100 120 715 4 145 320 400
TJV-BA 200x3500 200 3500 3600 120 672 5 145 320 400
TJV-BA 250x1500 250 1500 1625 132.5 680 2 164 410 500
TJV-BA 250x2000 250 2000 2125 132.5 620 3 164 410 500
TJV-BA 250x2500 250 2500 2625 127.5 790 3 164 410 500
TJV-BA 250x3500 250 3500 3625 130 673 5 164 410 500
TJV-BA 400x1000 400 1000 1200 150 900 1 300 670 800
TJV-BA 400-1500 400 1500 1700 150 700 2 300 670 800
TJV-BA 400x2000 400 2000 2200 147.5 635 3 300 670 800
TJV-BA 600x1000 600 1000 1300 170 960 1 450 1010 1200
(Unit: mm)
