• Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W
  • Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W
Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W

Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS
Model Number: JVL-137

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Nude packing
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Pendant Light Certification: CCS
Warranty: 12 Months Application: Ship Or Platform
After-sales Service Provided: Online Support Color: Milky White
Protection Class: IP56 Voltage: 110V/220V
High Light:

30m Stationery Deck Crane

,

5m Stationery Deck Crane

,

13KW Stationery Deck Crane

Product Description

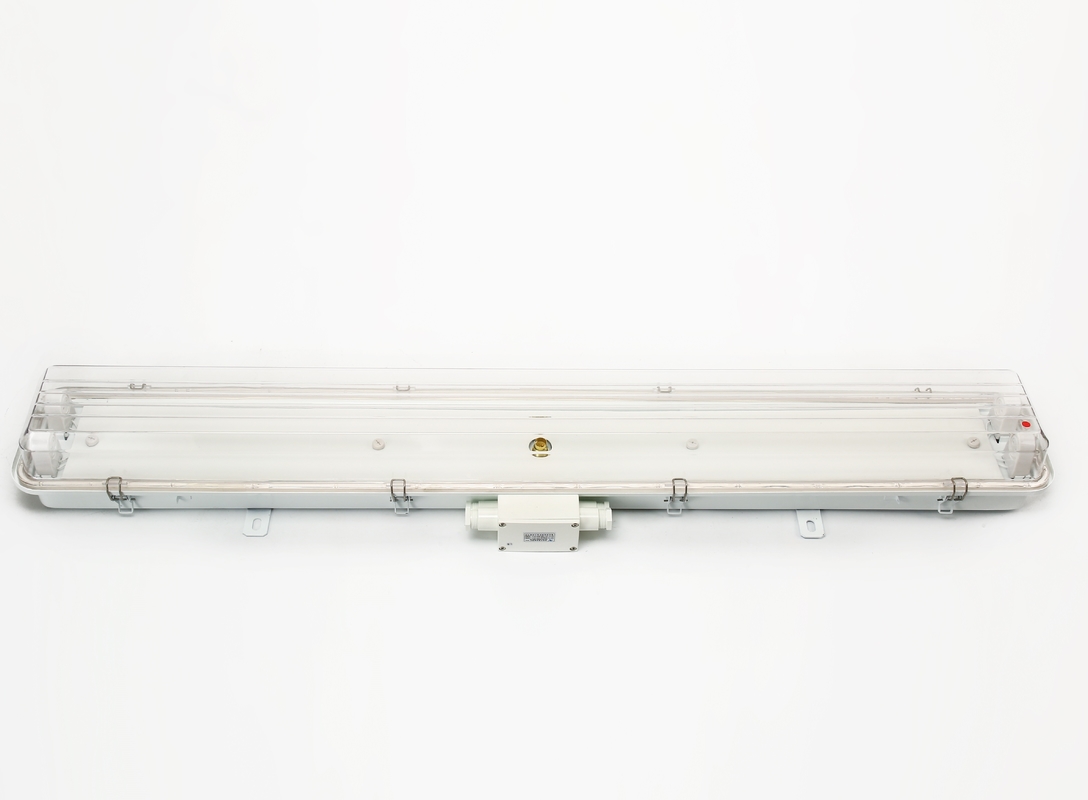

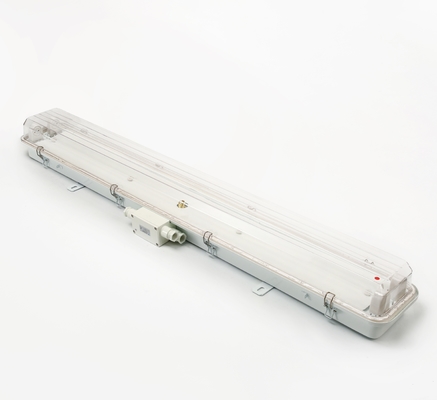

Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W

Marine Pendant Light JCY43-2E Marine Fluorescent Pendant Light CCS 40W





The scope of application:
Applied to illumination of water dripping, water spattering, water
coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline,
weather deck and etc.


Products characteristic:
1. The shell adopts good quality stretch-formed steel plate, lampshade is
injection molded by PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing
rod with the mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb,
there is mark on th edge of lampshade, remark clear that need the
emergency device when order.
5. Equipped with compensating capacitance inside, start rapidly.
6. The junction box is improved to double-channel connection mode, the design is more user-friendly.


Production authentication:
Approval by CCS(China Classification Society), certificate number
ZJ20P4028-1.


Adopt standard:
Conform to CB/T3857-1999 standard



Type Power Voltage Lamp holder Cable outside diameter Protection class Weight Remark
JCY23-2 2×20W 110V/60Hz
220V/50Hz
220V/60Hz
G13 12-16 IP56 5.35kg
JCY23-2E 5.35kg With socket
JCY23-2EF 5.5kg
JCY33-2 2×30W 9.0kg
JCY33-2E 9.0kg With socket
JCY43-2 2×40W 8.95kg
JCY43-2EF 8.95kg With socket




Surrounding light:



It can display uninterrupted white, red, green or yellow lights in a 360° horizontal arc, and can see a distance of 2 to 3 nautical miles.



Anchor lights:



For ships at anchor, two white lights are hung on the bow and stern where they are most visible from sunset to sunrise.



Flash light:



mounted above the sidelights, when the ship is turning left and right, it emits red or green lights at regular intervals.



Communication flash light:



also known as Morse signal light. It is manually operated and emits white light according to Morse code signal for short-distance communication. Including directional light-emitting portable or rotating pedestal type communication flashes, and surround-lighting mast-top type communication flashes.



Ship lights also have lifebuoy self-illuminating floating lights and life jacket position lights. The former is attached to the lifebuoy and ignites automatically when the lamp floats on the sea. It is a battery-type watertight lamp. The latter is attached to a life jacket for night use and is a battery-type watertight floating light.



JUVI Company



Chongqing Juvi Marine Machinery Company is an integrated marine technology company that presently specializes in productdesign,production, and sales.

Juvi company is administered by the marine equipment production systems.



Juvi is an integrated marine technology company that presently specializes in product design, production, sales and technology.



Our company is located in Chongqing, south-west China's great manufacturing base, a city with extremely high investment potential.



Our products have sold to regions as far away as Europe, North America and Asia, among others.
