Colorful AC100V 30W Steel Material IP56 Night Marine Signal Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | JUVI |
| Certification: | CE, CCS, ABS |
| Model Number: | CXH1-2C, CXH2-2C, CXH3-2C, CXH4-2C, CXH6-2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 1-7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+PCS+Month |
|
Detail Information |
|||
| Product Name: | Steel Material Red Port Light White All Round Light Ship Boat Vessel Night Marine Signal Lights | Light Source: | Halogen BAY15d |
|---|---|---|---|
| Class Certificate: | IP56 | Item Type: | Marine Nav. Signal Light |
| Application: | Marine Ship, Boat, Vessel, Etc | Material: | Steel |
| Lamp Power(w): | 30W | Type: | Starboard Light, Port Light, Masthead Light, Stern Light, All-round Light |
| High Light: | IP56 Marine Signal Lights,AC100V Marine Signal Lights,30W marine navigation lantern |
||
Product Description

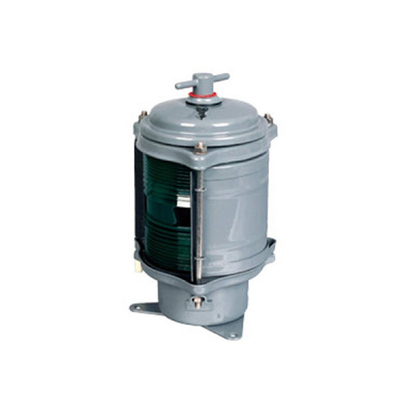

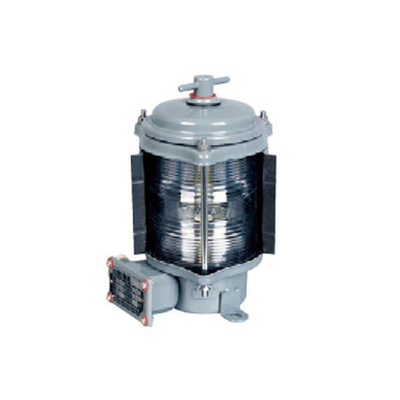

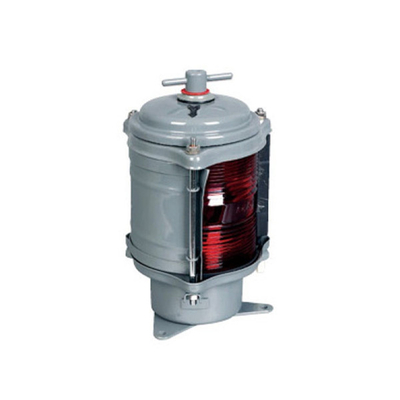

Steel Material Red Port Light White All Round Light Ship Boat Vessel Night Marine Signal Lights
Specification of Marine Signal Navigation Light
| Type | Model | Visibility | Level arc | Light source | IP rate | Cable outside dia. | Light color | Voltage | Power |
|
CXH-2C Navigation signal light |
CXH1-2C Single-deck starboard light | 2n.m | 112.5° | Halogen | IP56 | 10~12 | Green | AC100-240V 50/60Hz, DC24V, 12V | 30W |
| CXH2-2C Single-deck port light | 2n.m | 112.5° | Red | 30W | |||||
| CXH3-2C Single-deck masthead light | 5n.m | 225° | White | 30W | |||||
| CXH4-2C Single-deck stern light | 2n.m | 135° |
White/ Yellow |
30W | |||||
| CXH6-2C Single-deck all-round light | 2n.m | 360° |
Red/ Green/ White |
30W |
The scope of application
Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.
Products characteristic
1. It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.
2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance
3. The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.
Adopt standard
1. Conform to
2. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.
Production authentication
Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.

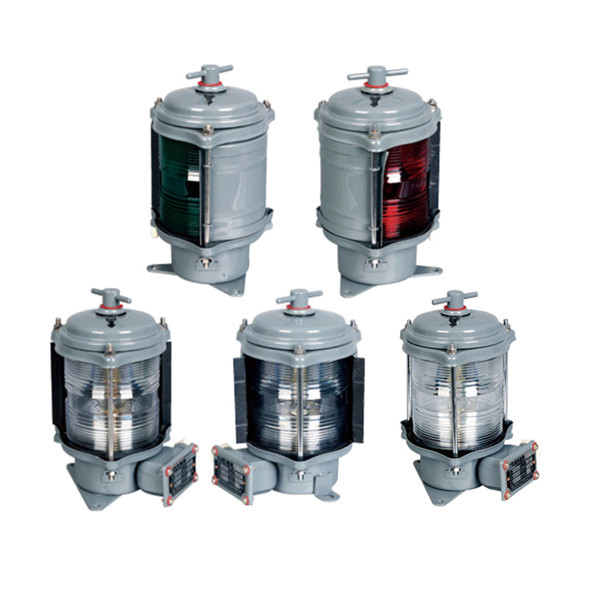

Marine navigation signal light series
|
Light source |
LED, halogen, etc |
|
Suitable ship length |
Below 12m From 12m to 50m More than 50m |
|
Light color |
Red, green, blue, white,yellow |
|
Visibility |
1nm, 2nm, 3nm, 6nm |
| Level arc | 112.5°, 135°, 225°, 360° |
|
Installation position Type |
Starboard light Port light Masthead light Stern light All-round light |
|
Lens/deck type |
Single len/deck, double len/deck |
|
Material |
Steel, plastic, brass, etc |
|
Voltage |
110V, 220V, 12V, 24V |
|
Certificate |
CE, CCS, ABS |
1. Marine Navigation Signal Light.
2. Marine Ceiling Light, Wall Light, Portable Light, Deck Work Light, Bedside Light, Mirror Light, etc.
3. Marine Searchlight, Flood Light, etc.
4. Marine Explosion-proof Light.
5. Plug/Socket/Switch/Junction Box, etc.
