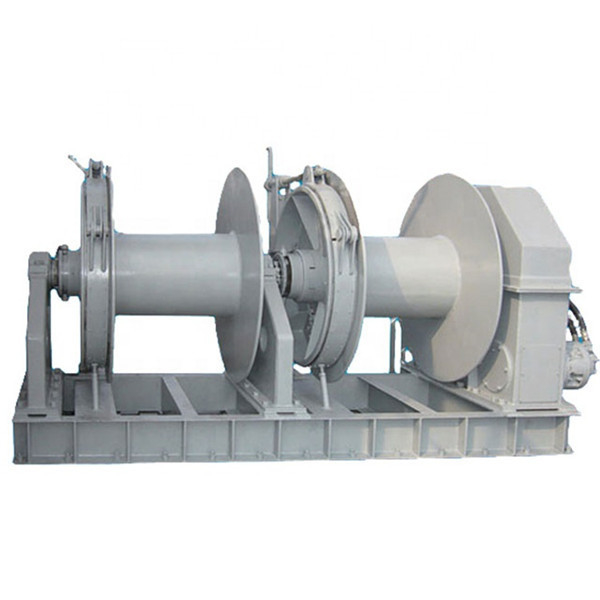

80KN Marine Electric Winch
Product Details:
Place of Origin: | China |
Brand Name: | JUVI |
Certification: | CCS, ABS, LR, RMRS, etc |
Model Number: | Electric Mooring Winch |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packing |
Delivery Time: | 25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000+PCS+Month |
Detail Information |
|||
Product Name: | CCS ABS LR BV Certificate Port Dock Jetty Ship Deck Mooring Winch Marine Electric Winch | Application: | Boat, Ship, Vessel, Jetty, Port, Dock, Etc |
---|---|---|---|
Power Source: | Electric, Hydraulic | Warranty: | 1 Year |
Voltage: | DC12v, AC, 380V, DC12V/24V, 50HZ/60HZ | Drum Rated Load (KN): | 30-350 |
Cable Dia. (mm): | 28-100 | Motor Power (KW): | 11-110 |
Highlight: | 80KN Marine Electric Winch,48mm Marine Electric Winch,80KN Deck Mooring Winch |
Product Description
CCS ABS LR BV Certificate Port Dock Jetty Ship Deck Mooring Winch Marine Electric Winch
Specification of Marine Mooring Electric Winch
Drum rated load (KN) |
Cable rated speed |
Cable Dia. (mm) |
Drum capacity (m) |
Motor power (KW) |
Winch dimension with single drum (mm) |
Winch dimension |
30 | ≥15 | 28 | 150 | 11/11/7.5 | 1345x1080x870 | 2115x1080x870 |
50 | ≥15 | 36 | 160 | 16/16/11 | 1780x1080x990 | 2900x1080x990 |
80 | ≥15 | 48 | 180 | 30/30/22 | 2040x1440x1210 | 3230x1440x1210 |
100 | ≥15 | 60 | 200 | 30/30/22 | 3190x1785x1350 | 4550x1785x1350 |
125 | ≥15 | 65 | 200 | 45/45/30 | 3330x1785x1350 | 4710x1785x1350 |
150 | ≥15 | 70 | 200 | 60/60/45 | 3400x1885x1600 | 4810x1885x1600 |
200 | ≥15 | 80 | 200 | 75/75/60 | 3540x2075x1800 | 5055x2075x1800 |
250 | ≥15 | 80 | 200 | 100/100/85 | 3770x2450x1950 | 5380x2450x1950 |
300 | ≥15 | 80 | 200 | 100/100/85 | 4250x2450x2100 | 5840x2450x2100 |
350 | ≥15 | 100 | 200 | 110 | 4500x2600x2200 | 6100x2600x2200 |
Deck Equipment Series Customized is acceptable. |
1. Mooring Rope/Cable Winch(Hydraulic/Electric) 2. Mooring Anchor Windlass/Winch(Hydraulic/Electric) 3. Mooring Towing Winch 4. Mooring Position Winch 5. Cargo Winch 6. Moving-Boat Winch 7. Scientific Research Winch 8. Linear Winch 9. Double Row Rope Winch 10. Winch Type Towing System 11. Military Bell Winch 12. Offshore Winch |

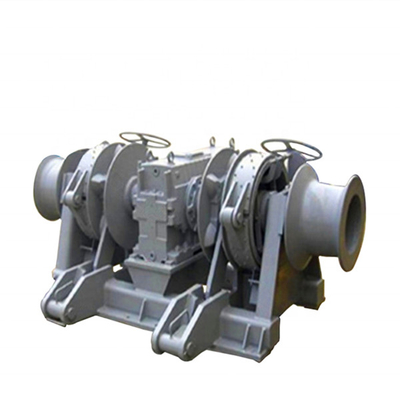

Description of Hydraulic/ Electric Driven Anchor (Warping) Winch
All Deck Machines are customized products, we can design all kinds of medium large hydraulic or electric anchor winch and single, double&combined warping winch. the products conform to GB-4447-92 standard and the requirement of each large classification society.
Anchor chain diameter 12.5-130mm, Cable winding pull 50-1000KN
Features of Mooring Winch
Single Or Double Drum
Electrical Drive
Direct On Line (DOL) Or Variable
Frequency Drive (VFD)
Single Speed Or 2-Speed Motor
Integrated Modular Gear Box
Fail-Safe Motor Brake
Pneumatic Fail-Safe Band Brake With
Manual Emergency Release
Auto Clutch With Manual Override
Load And Rope Length Display
Controlled From Local Control Console
Optional Remote Control
Features of Rope Anchor Winch
Compact and Robust Welding Structure
Freewheeling by Water-cooled Drag Brake
Fail-safe Motor Brake
Fail-safe Pneumatic or Hydraulic Band Brake
Shaft Coupling for Future Extension
Suitable for 8-, 12- or 16-points Mooring Applications
Load and Rope Length Display
Anchor Handling Towing Winch includes a double drum to handle separate wire ropes for both Anchor Handling and Towing. A Remote Control Panel allows operation from the Wheelhouse.
Features of Anchor Handling Towing Winch
Strongly Reinforced Winch Frame to withstand Wire Breaking Load
Accurate shaft alignment and gear mesh
Hydraulic Operated Fail-safe Clutch
Assembly for each Drum
Individual Band Brake for each Drum
Maintenance Friendly with Pneumatic Gear Segment Lock
Control Remotely with Remote Control Panel from the Wheelhouse
The Basic Technical Requirements For Marine Winch
1. It can ensure that the ship can still be moored when the ship is under the influence of winds below level 6.
2. The pulling force should be selected according to the size of the ship and the number recommended in the "Steel Seagoing Shipmanship and Construction Rules".
3. The twisting speed is 15-30m/min, and the maximum can reach 50m/min.
4. The power used is different: electric winch, hydraulic winch.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 2 days
Q4: What's the MOQ?
MOQ is 1 set.
Q5: Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers' request;
Q6: Shipping
By Express/ Air/ Sea/ Train.
