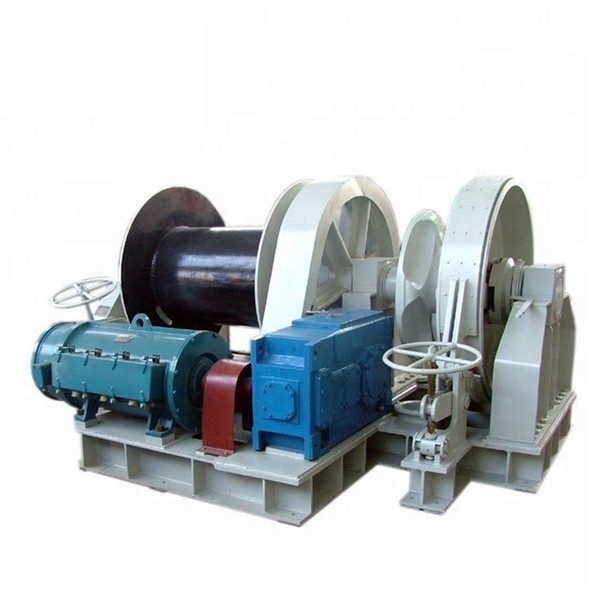

100mm Cable Mooring Chain Marine Electric Winch Windlass
Product Details:
Place of Origin: | China |
Brand Name: | JUVI |
Certification: | CCS, ABS, LR, RMRS, etc |
Model Number: | Anchor Winch |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packing |
Delivery Time: | 25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000+PCS+Month |
Detail Information |
|||
Product Name: | Marine Boat Application Winch Electric Anchor Windlass Mooring Chain Anchor Winch Ship Anchor Windlass | Application: | Boat, Ship, Vessel, Jetty, Port, Dock, Etc |
---|---|---|---|
Power Source: | Electric | Voltage: | AC 380V/220V, 50HZ/60HZ |
Cable Dia. (mm): | 28-100 | Certificate: | CCS, BV, DNV, ABS, Etc |
Workload (KN): | 6.6-684 | Anchor Speed (m/min): | ≥9 |
Anchor Chain Dia.(mm): | 12.5-120 | Warranty: | 1 Year |
High Light: | Windlass Marine Electric Winch,100mm Cable Marine Electric Winch,132KW Marine Electric Winch |
Product Description
100mm Cable Mooring Chain Marine Electric Winch Windlass
Marine Boat Application Winch Electric Anchor Windlass Mooring Chain Anchor Winch Ship Anchor Windlass
Specification of Marine Electric Anchor Winch
Deck Equipment Series | 1.Mooring Rope/Cable Winch(Hydraulic/Electric) 2.Mooring Anchor Windlass/Winch(Hydraulic/Electric) 3.Mooring Towing Winch 4.Mooring Position Winch 5.Cargo Winch 6.Moving-Boat Winch 7.Scientific Research Winch 8.Linear Winch 9.Double Row Rope Winch 10.Winch Type Towing System 11.Military Bell Winch 12.Offshore Winch |
Drive Power | Electric /Hydraulic/ Manual/ Diesel |
Warping Head, Gypsy and Drum |
Single/Double, Customized |
Gypsy Size | Dia. 12.5-127mm(U2,U3), Customized |
Working Load | 1 Ton to 350 Ton, Customized |
Warping Head | 10KN-100KN, Customized |
Holding Load | 68KN-3010KN, Customized |
Power Required | 4-132KW, Customized |
Chain Speed | ≥9m/min, Customized |
Clutch | Manual /Hydraulic Operated Jaw Clutch |
Brake | Spring Applied Pneumatically or Hydraulic Released Band Brake |
Release | Emergency Quick Release |
Control Type | Local Control Console and remote Control Panel |
Options | Drag Brake System; Length and Tension Monitoring Systems Stainless Steel Brake Drum; Chain Stopper; Fairlead, etc |
Advantages | High quality with competitive prices |
Much experience in production and exportion | |
Special design for different clients. | |
Short delivery time if clients need urgently | |
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS |
Main Performance Parameters of Electric Windlass | ||
Specification and Name | Workload (KN) |
Anchor Speed (m/min) |
12.5mm Electric Windlass | 6.6 | ≥9 |
14mm Electric Windlass | 8.3 | ≥9 |
16mm Electric Windlass | 10.9 | ≥9 |
17.5mm Electric Windlass | 13.0/14.6 | ≥9 |
19mm Electric Windlass | 15.3/17.2 | ≥9 |
20.5mm Electric Windlass | 17.9/20.0 | ≥9 |
22mm Electric Windlass | 20.6/23.0 | ≥9 |
24mm Electric Windlass | 24.5/27.4 | ≥9 |
26mm Electric Windlass | 28.7/32.1 | ≥9 |
28mm Electric Windlass | 33.3/37.2 | ≥9 |
30mm Electric Windlass | 38.3/42.8 | ≥9 |
32mm Electric Windlass | 43.5/48.6 | ≥9 |
34mm Electric Windlass | 49.1 / 54.9 | ≥9 |
36mm Electric Windlass | 55.1 / 61.6 | ≥9 |
38mm Electric Windlass | 61.4 / 68.9 | ≥9 |
40mm Electric Windlass | 68.0 / 76.0 | ≥9 |
42mm Electric Windlass | 75.0 / 83.8 | ≥9 |
44mm Electric Windlass | 82.3 / 92.0 | ≥9 |
46mm Electric Windlass | 89.9 / 100.5 | ≥9 |
48mm Electric Windlass | 97.9 / 109.4 | ≥9 |
50mm Electric Windlass | 106.3 / 118.8 | ≥9 |
52mm Electric Windlass | 114.9 / 128.4 | ≥9 |
54mm Electric Windlass | 123.9 / 138.5 | ≥9 |
56mm Electric Windlass | 133.3 / 149.0 | ≥9 |
56mm Electric Windlass | 143.0 / 159.8 | ≥9 |
60mm Electric Windlass | 153.0 / 171.0 | ≥9 |
62mm Electric Windlass | 163.4 / 182.6 | ≥9 |
64mm Electric Windlass | 174.1 / 194.6 | ≥9 |
66mm Electric Windlass | 185.1 / 206.9 | ≥9 |
68mm Electric Windlass | 196.5 / 219.6 | ≥9 |
70mm Electric Windlass | 208.3 / 232.8 | ≥9 |
73mm Electric Windlass | 226.5 / 253.1 | ≥9 |
76mm Electric Windlass | 245.5 / 274.4 | ≥9 |
78mm Electric Windlass | 258.6 / 289.0 | ≥9 |
81mm Electric Windlass | 311.7 | ≥9 |
83mm Electric Windlass | 327.2 | ≥9 |
84mm Electric Windlass | 335.2 | ≥9 |
85mm Electric Windlass | 343.2 | ≥9 |
87mm Electric Windlass | 359.5 | ≥9 |
90mm Electric Windlass | 384.8 | ≥9 |
92mm Electric Windlass | 402.0 | ≥9 |
95mm Electric Windlass | 428.7 | ≥9 |
97mm Electric Windlass | 446.9 | ≥9 |
100mm Electric Windlass | 475.0 | ≥9 |
102mm Electric Windlass | 494.2 | ≥9 |
105mm Electric Windlass | 523.7 | ≥9 |
107mm Electric Windlass | 543.8 | ≥9 |
111mm Electric Windlass | 585.3 | ≥9 |
112mm Electric Windlass | 595.8 | ≥9 |
114mm Electric Windlass | 617.3 | ≥9 |
117mm Electric Windlass | 650.2 | ≥9 |
120mm Electric Windlass | 684.0 | ≥9 |
Features of Windlass
1) It has good speed regulation performance equivalent to that of DC electric windlass.
2) Low-speed and high-torque hydraulic motors are usually used, with low rotation speed and large output torque. There is no need to install a huge mechanical reducer and can directly drive the anchor sprocket.
3) Hydraulic transmission has self-braking performance.
4) Compact structure, small weight and size per unit power.
5) Easy to realize remote control and automation
