BV Steel Type D Marine Hatch Cover Push Opening Waterproof

BV Steel Type D Marine Hatch Cover Push Opening Waterproof

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS,BV,LR,ABS
Model Number: JV-92

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Standard export package
Delivery Time: 40-60 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000set/Month
Get Best Price Contact Now

Detail Information

Material: Steel Opening: Push
Model: D,DL,DS Color: Grey, Or Custmer's Request
Type: 3 Types Warranty: 1 Year
OEM: Accept Production Days: 40-60 Days
High Light:

BV Type D Marine Hatch Cover

,

Steel Push Opening Marine Hatch Cover

,

Marine Boat Waterproof Hatch Covers

Product Description

BV Steel Type D Marine Hatch Cover Push Opening Waterproof

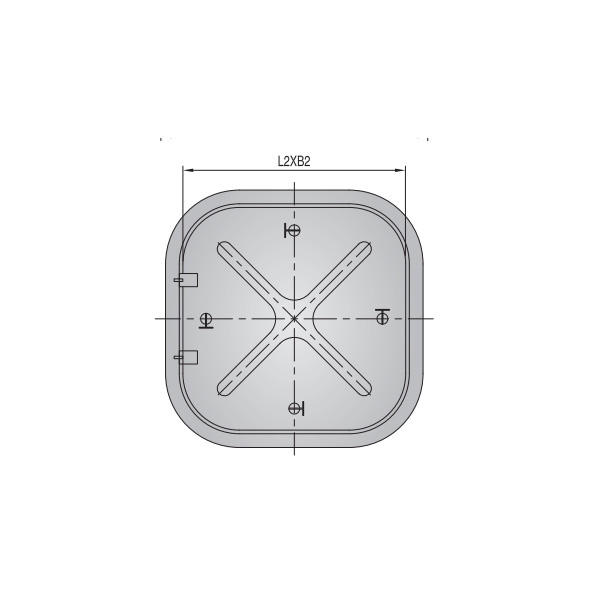

Steel Small Hatch Cover Type D CB/T 3725-1995 Marine Hatch Cover



Marine Hatch covers have mainly been divided into three categories: container lifting type hatch covers, bulk carrier side shift-type hatch covers, general cargo ship folding type hatch covers. Among them, the folding hatch cover can also be connected with the bulk carrier hatch cover, lifting off the hatch cover can also be used for general cargo ships. If overtime space is limited, sliding hatch covers (mostly along the ship's longitudinal) can also be installed in a stacked style, that is, two or more hatch covers can be hydraulically stacked together and then moved along the hatch according to actual needs.

1. Lifting hatch covers are usually used on container ships to cover the open decks on which containers can be placed. It is used in general cargo ships, the lifting type hatch cover can be used to separate the vertical direction of the cargo. In such cases, the hatch cover may be used as a double deck. Lifting type hatch cover can be divided into two forms: single plate type hatch cover and multi-plate type hatch cover.



2. Folding hatch cover is important for bulk carriers, multi-purpose ships, folding hatch cover is divided into two groups: high folding hatch cover and low folding hatch cover. A low folding hatch cover is usually used when the folding height is limited and the required folding length is greater than that required for a high folding hatch cover. The sealing of hatch cover and hatch enclosure inspection is generally achieved by a rubber sealing strip. The rubber sealing strip is fixed on the hatch cover and pressed tightly with the hatch coaming to seal. The cover plates are similar to each other.

3. Side moving hatch cover is mainly used for bulk carriers, its operation is to move the hatch cover to both sides of the ship to empty the cargo compartment. The operation machinery can be guide rail, gear or chain transmission, the basic setting mode is: single cover type, the hatch cover is on the side of the hatch; Double cover type, the hatch covers are on opposite sides of the hatch. The hatch cover can be partially opened to maintain air circulation and prevent rainwater from flooding in. It is also possible to install the aft side shifting hatch cover, which can be moved in the captain's direction







TYPE NOMINAL SiZE
LXB
ACCESS WAY size
L1XB1XR
SIZE OF COVER
L2xB2
size OF B.H.OPENING
L3XB3XR1
THICK OF COVER THICK.OF COAMING
to
DoGs WEIGHT
kg
QUT.
D
DL
Ds
530x530 530x530x115 588x588 622x622x161 4 6 4 46.7
592x592 622x622x161 6 6 53.3
596x596 626x626x163 8 8 63.6
630x630 630x630×115 688X688 722x722×161 4 6 57.4
692x692 722x722x161 6 6 66.1
696x696 726×726×163 8 8 80.5
630x830 630x830X115 688x888 722x922x161 4 6 6 73.9
692x892 726x926x163 6 8 91.5
696×896 726x926×163 8 8 106.3
830x830 830X830X115 892x892 926x926x163 6 8 8 114.9
896x896 926x926x163 8 8 129
