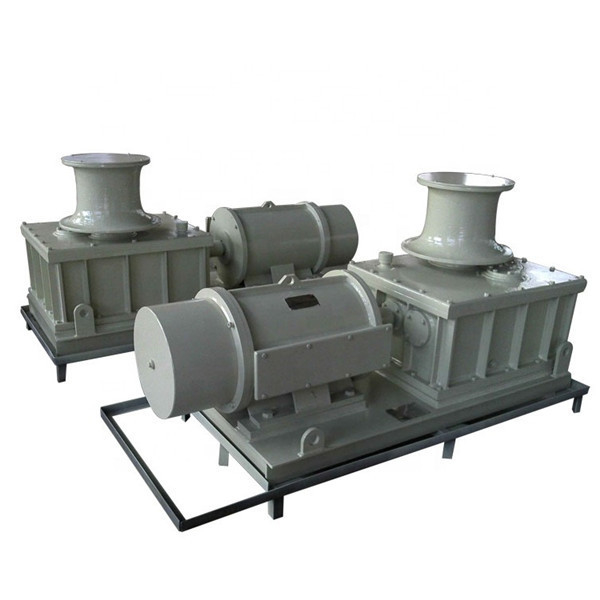

Horizontal Mooring Capstan Marine Electric Winch 35KN 20KN
Product Details:
| Place of Origin: | China |
| Brand Name: | JUVI |
| Certification: | CCS, ABS, LR, RMRS, etc |
| Model Number: | Ship Boat Vessel Marine Steel Wire Rope Horizontal Electric Mooring Capstan Winch 35KN 20KN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+PCS+Month |
|
Detail Information |
|||
| Product Name: | Ship Boat Vessel Marine Steel Wire Rope Horizontal Electric Mooring Capstan Winch 35KN 20KN | Application: | Boat, Ship, Vessel, Jetty, Port, Dock, Etc |
|---|---|---|---|
| Power Source: | Electric/Hydraulic | Voltage: | AC 380V/220V, 50HZ/60HZ |
| Cable Dia. (mm): | 28-100 | Certificate: | ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, Etc |
| Workload (KN): | 6.6-684 | Anchor Speed (m/min): | ≥9 |
| Anchor Chain Dia.(mm): | 12.5-120 | Usage: | Cable Pulling Machine, Marine Boat Yacht Sailboat, Cranes, Fishing Boat |
| High Light: | Horizontal Mooring Capstan,Marine Electric Winch 35KN,Marine Electric Mooring Capstan |
||
Product Description
Ship Boat Vessel Marine Steel Wire Rope Horizontal Electric Mooring Capstan Winch 35KN 20KN
Specification of Marine Electric Anchor Winch
| Deck Equipment Series | 1.Mooring Rope/Cable Winch(Hydraulic/Electric) 2.Mooring Anchor Windlass/Winch(Hydraulic/Electric) 3.Mooring Towing Winch 4.Mooring Position Winch 5.Cargo Winch 6.Moving-Boat Winch 7.Scientific Research Winch 8.Linear Winch 9.Double Row Rope Winch 10.Winch Type Towing System 11.Military Bell Winch 12.Offshore Winch |
| Drive Power | Electric /Hydraulic/ Manual/ Diesel |
| Warping Head, Gypsy and Drum |
Single/Double, Customized |
| Gypsy Size | Dia. 12.5-127mm(U2,U3), Customized |
| Working Load | 1 Ton to 350 Ton, Customized |
| Warping Head | 10KN-100KN, Customized |
| Holding Load | 68KN-3010KN, Customized |
| Power Required | 4-132KW, Customized |
| Chain Speed | ≥9m/min, Customized |
| Clutch | Manual /Hydraulic Operated Jaw Clutch |
| Brake | Spring Applied Pneumatically or Hydraulic Released Band Brake |
| Release | Emergency Quick Release |
| Control Type | Local Control Console and remote Control Panel |
| Options | Drag Brake System; Length and Tension Monitoring Systems Stainless Steel Brake Drum; Chain Stopper; Fairlead, etc |
| Advantages | High quality with competitive prices |
| Much experience in production and exportion | |
| Special design for different clients. | |
| Short delivery time if clients need urgently | |
| Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS |
| Main Performance Parameters of Electric Windlass | ||
| Specification and Name | Workload (KN) |
Anchor Speed (m/min) |
| 12.5mm Electric Windlass | 6.6 | ≥9 |
| 14mm Electric Windlass | 8.3 | ≥9 |
| 16mm Electric Windlass | 10.9 | ≥9 |
| 17.5mm Electric Windlass | 13.0/14.6 | ≥9 |
| 19mm Electric Windlass | 15.3/17.2 | ≥9 |
| 20.5mm Electric Windlass | 17.9/20.0 | ≥9 |
| 22mm Electric Windlass | 20.6/23.0 | ≥9 |
| 24mm Electric Windlass | 24.5/27.4 | ≥9 |
| 26mm Electric Windlass | 28.7/32.1 | ≥9 |
| 28mm Electric Windlass | 33.3/37.2 | ≥9 |
| 30mm Electric Windlass | 38.3/42.8 | ≥9 |
| 32mm Electric Windlass | 43.5/48.6 | ≥9 |
| 34mm Electric Windlass | 49.1 / 54.9 | ≥9 |
| 36mm Electric Windlass | 55.1 / 61.6 | ≥9 |
| 38mm Electric Windlass | 61.4 / 68.9 | ≥9 |
| 40mm Electric Windlass | 68.0 / 76.0 | ≥9 |
| 42mm Electric Windlass | 75.0 / 83.8 | ≥9 |
| 44mm Electric Windlass | 82.3 / 92.0 | ≥9 |
| 46mm Electric Windlass | 89.9 / 100.5 | ≥9 |
| 48mm Electric Windlass | 97.9 / 109.4 | ≥9 |
| 50mm Electric Windlass | 106.3 / 118.8 | ≥9 |
| 52mm Electric Windlass | 114.9 / 128.4 | ≥9 |
| 54mm Electric Windlass | 123.9 / 138.5 | ≥9 |
| 56mm Electric Windlass | 133.3 / 149.0 | ≥9 |
| 56mm Electric Windlass | 143.0 / 159.8 | ≥9 |
| 60mm Electric Windlass | 153.0 / 171.0 | ≥9 |
| 62mm Electric Windlass | 163.4 / 182.6 | ≥9 |
| 64mm Electric Windlass | 174.1 / 194.6 | ≥9 |
| 66mm Electric Windlass | 185.1 / 206.9 | ≥9 |
| 68mm Electric Windlass | 196.5 / 219.6 | ≥9 |
| 70mm Electric Windlass | 208.3 / 232.8 | ≥9 |
| 73mm Electric Windlass | 226.5 / 253.1 | ≥9 |
| 76mm Electric Windlass | 245.5 / 274.4 | ≥9 |
| 78mm Electric Windlass | 258.6 / 289.0 | ≥9 |
| 81mm Electric Windlass | 311.7 | ≥9 |
| 83mm Electric Windlass | 327.2 | ≥9 |
| 84mm Electric Windlass | 335.2 | ≥9 |
| 85mm Electric Windlass | 343.2 | ≥9 |
| 87mm Electric Windlass | 359.5 | ≥9 |
| 90mm Electric Windlass | 384.8 | ≥9 |
| 92mm Electric Windlass | 402.0 | ≥9 |
| 95mm Electric Windlass | 428.7 | ≥9 |
| 97mm Electric Windlass | 446.9 | ≥9 |
| 100mm Electric Windlass | 475.0 | ≥9 |
| 102mm Electric Windlass | 494.2 | ≥9 |
| 105mm Electric Windlass | 523.7 | ≥9 |
| 107mm Electric Windlass | 543.8 | ≥9 |
| 111mm Electric Windlass | 585.3 | ≥9 |
| 112mm Electric Windlass | 595.8 | ≥9 |
| 114mm Electric Windlass | 617.3 | ≥9 |
| 117mm Electric Windlass | 650.2 | ≥9 |
| 120mm Electric Windlass | 684.0 | ≥9 |
| Main Performance Parameters of Hydraulic Windlass | ||
| Specification and Name | Workload AM2/AM3 (KN) |
Anchor Speed (m/min) |
| 12.5mm Hydraulic Windlass | 6.6 | ≥9 |
| 14mm Hydraulic Windlass | 8.3 | ≥9 |
| 16mm Hydraulic Windlass | 10.9 | ≥9 |
| 17.5mm Hydraulic Windlass | 13.0/14.6 | ≥9 |
| 19mm Hydraulic Windlass | 15.3/17.2 | ≥9 |
| 20.5mm Hydraulic Windlass | 17.9/20.0 | ≥9 |
| 22mm Hydraulic Windlass | 20.6/23.0 | ≥9 |
| 24mm Hydraulic Windlass | 24.5/27.4 | ≥9 |
| 26mm Hydraulic Windlass | 28.7/32.1 | ≥9 |
| 28mm Hydraulic Windlass | 33.3/37.2 | ≥9 |
| 30mm Hydraulic Windlass | 38.3/42.8 | ≥9 |
| 32mm Hydraulic Windlass | 43.5/48.6 | ≥9 |
| 34mm Hydraulic Windlass | 49.1/54.9 | ≥9 |
| 36mm Hydraulic Windlass | 55.1/61.6 | ≥9 |
| 38mm Hydraulic Windlass | 61.4/68.9 | ≥9 |
| 40mm Hydraulic Windlass | 68.0/76.0 | ≥9 |
| 42mm Hydraulic Windlass | 75.0/83.8 | ≥9 |
| 44mm Hydraulic Windlass | 82.3/92.0 | ≥9 |
| 46mm Hydraulic Windlass | 89.9/100.5 | ≥9 |
| 48mm Hydraulic Windlass | 97.9/109.4 | ≥9 |
| 50mm Hydraulic Windlass | 106.3/118.8 | ≥9 |
| 52mm Hydraulic Windlass | 114.9/128.4 | ≥9 |
| 54mm Hydraulic Windlass | 123.9/138.5 | ≥9 |
| 56mm Hydraulic Windlass | 133.3/149.0 | ≥9 |
| 58mm Hydraulic Windlass | 143.0/159.8 | ≥9 |
| 60mm Hydraulic Windlass | 153.0/171.0 | ≥9 |
| 62mm Hydraulic Windlass | 163.4/182.6 | ≥9 |
| 64mm Hydraulic Windlass | 174.1/194.6 | ≥9 |
| 66mm Hydraulic Windlass | 185.1/206.9 | ≥9 |
| 68mm Hydraulic Windlass | 196.5/219.6 | ≥9 |
| 70mm Hydraulic Windlass | 208/3/232.8 | ≥9 |
| 73mm Hydraulic Windlass | 226.5/253.1 | ≥9 |
| 76mm Hydraulic Windlass | 245.5/274.4 | ≥9 |
| 78mm Hydraulic Windlass | 258.6/289.0 | ≥9 |
| 81mm Hydraulic Windlass | 311.7 | ≥9 |
| 83mm Hydraulic Windlass | 327.2 | ≥9 |
| 84mm Hydraulic Windlass | 335.2 | ≥9 |
| 85mm Hydraulic Windlass | 343.2 | ≥9 |
| 87mm Hydraulic Windlass | 359.5 | ≥9 |
| 90mm Hydraulic Windlass | 384.8 | ≥9 |
Description of Hydraulic/ Electric Driven Anchor (Warping) Winch
All Deck Machines are customized products, we can design all kinds of medium large hydraulic or electric anchor winch and single, double&combined warping winch. the products conform to GB-4447-92 standard and the requirement of each large classification society.
Anchor chain diameter 12.5-130mm, Cable winding pull 50-1000KN
