50tons Marine Electric Crane

50tons Marine Electric Crane

Product Details:

Place of Origin: China
Brand Name: JV
Certification: DNV-GL ,ABS,LR,BV,RINA,CCS,NK,KR
Model Number: JVL-60

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $4000-5000/set
Packaging Details: Standard export package
Delivery Time: 50-65 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000set/Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Non-luffing Electric Crane Feature: Other
Certification: ISO,CE,ABS Application: Boat,Ship Or Platform,offshore
Rated Loading Capacity: 1-50tons Rated Lifting Moment: 10KN-80KN
Max. Lifting Load: 20ton/Customized Usage: Lifting Goods,Marine Deck
High Light:

50tons Marine Electric Crane

,

80KN marine electric crane

,

10KN marine electric crane

Product Description

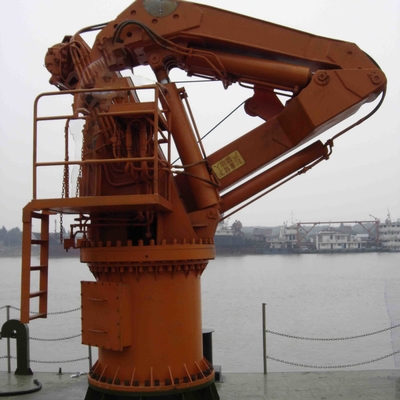

50tons Marine Electric Crane

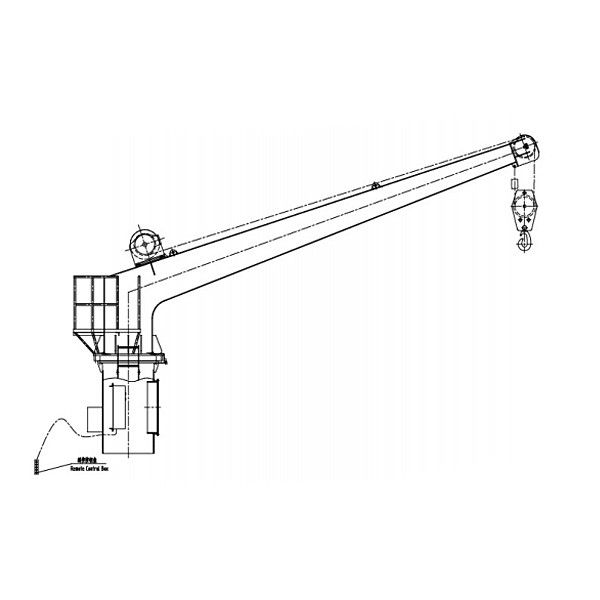

Marine Non-Luffing Electric Crane 1-50tons ABS BV Electric Deck Crane High Quality Yacht Marine Crane





Details:



Non-luffing electric crane takes the simple structure and operation to be a design standard. It adopts a lifting winch with planetary reducer or cycloidal pin gear speed reducer and slewing drive, which has characters as lightweight , reliable work,non-pollution, and easy maintenance, etc.



This type of crane will be used for ship lifting sundries, food, spare parts,etc.



The crane can choose a remote control material system with explosion-proof.



These cranes can be approved by DNV-GL, ABS, LR, BV, RINA, CCS,NK, KR, etc.


We can design specifications based on customer’s requirements.





Specifications:



parameter unit JV5-18 JV8-14 JV10-18 JV16-23 JV35-22D JV50-22
Rated lifting capacity t 5 8 10 16 35 50
Working range m 7~18 6~14 7~18 9~23 7.5~19 8~20
Lifting height (on deck) m 8 8 8 14 15 16
Lifting height (under deck) m 7 6 7 10 8 15
Lifting speed (hook) m/min 24 25 26 25 7.2 10
Lifting speed (grab) m/min 48 52 52 50 - 30
Luffing speed m/min 25 18 25 28 17.2 5
spinning speed m/min 1.8 1.7 1.8 1.7 0.8 1.2
Installed capacity kw 111 104 126 277 127 195



50tons Marine Electric Crane 0



Marine rack luffing crane:



The marine rack luffing crane can be used for loading and unloading operations between shore and ship, and between ship and ship. It has a lightweight, small area, high work efficiency, good working toxicity, and flexible operation. It is an ideal loading and unloading equipment for inland rivers and lakes. It is also suitable for sub-terminal dredging and terminal engineering construction operations, such as grab dredger, floating sand unloader, muddy coal unloader, etc. Users can choose to configure the hook or grab.



Marine hook crane:



The marine hook crane is a fixed crane installed on a special hull or hoarding ship. It adopts a single boom, a wire rope luffing and a four-point contact ball slewing support structure, which can make a 360-degree full rotation, stable operation, reliable use, and operation efficiency. Users can choose to use hooks or grabs to load and unload goods. According to user needs, frequency conversion control can be used to make the operation of each mechanism more stable and reliable.



Main products:



1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.

2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)

3. Marine deck mooring: Anchor, Anchor chain.

4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.

5. Customized products:according to customers' request.
