Name: Marine Window Porthole Side Scuttle Application: Ship Marine Boat Vessel Yacht Offshore
Material: Aluminum/ Steel/ Copper/ Stainless Steel Feature 1: Bolted/ Welded
Feature 2: Fireproof/ Soundproof/ Fire Resistance/ Waterproof Type: Rectangular/ Round
Leaf: Double/ Triple MOQ: 1 Set
High Light:

200mm marine porthole windows

,

250mm marine porthole windows

,

300mm marine porthole windows

Product Description

Light Transmission Size 200 / 250 / 300mm Fireproof Marine Porthole Windows

Marine Boat Accessory Window Porthole Skylight Aluminum Steel Copper Fireproof





Specification

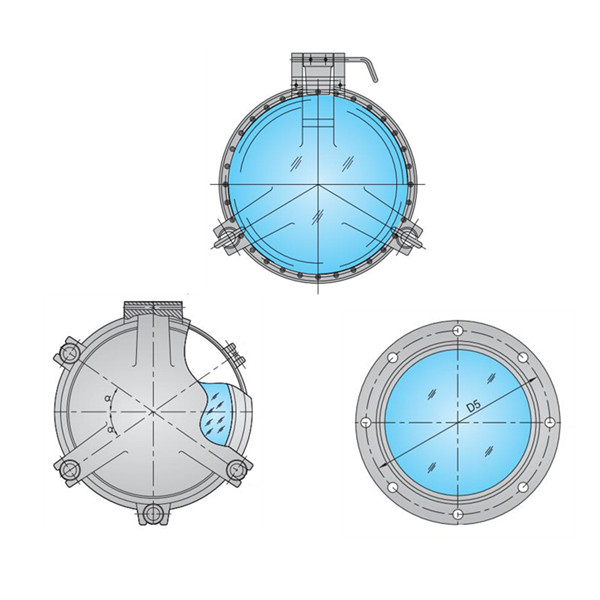

Type Size of cleard D1 D2 D3 D4 D5 h t α Out of clip Bolt Size of opening
Dead light Frame Whorl Out
A LB 200 245 204 250 350 310 155 10 45° 2 3 M16 8 253
250 295 254 305 400 364 182 12 48° 2 3 M16 8 308
RB 300 350 304 360 450 414 207 15 31° 3 3 M16 12 363
350 400 354 410 500 464 232 15 31° 3 3 M16 12 413
400 450 404 460 550 514 257 19 31° 3 3 M18 12 463





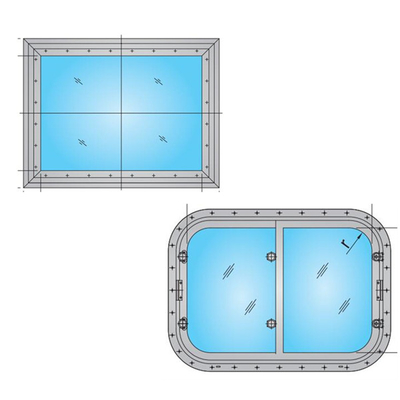

Light Transmission Size 200 / 250 / 300mm Fireproof Marine Porthole Windows 0Light Transmission Size 200 / 250 / 300mm Fireproof Marine Porthole Windows 1



Porthole



Side Scuttle is a water-tight circular window set on the side shell, superstructure and outer wall of the deckhouse of the ship. It is generally composed of the main window frame, glass pressing plate, storm cover, etc. Marine side scuttles, together with their glass and side scuttle cover (storm cover), should be of solid structure, and should be able to close effectively and ensure watertightness.



Definition of Side Scuttle



Section 4.2 of ISO 6345-1990 "Shipbuilding and Marine Structures-Windows and Portholes-Vocabulary" stipulates: "Open hinged type with or without storm cover or fixed ISO standardized type marine round window."



Equivalent to adopting the national standard GB/T 14413-93 of the People’s Republic of China compiled by ISO 1751 "Shipbuilding-Portholes", the portholes specified in Chapter 3.1 are defined as: "In compliance with the 1974 International Convention for the Safety of Life at Sea and the Classification Code for Ship Construction, Water-tight circular windows are installed in the side shell, superstructure and outdoor bulkhead of the deck."



Light Transmission Size 200 / 250 / 300mm Fireproof Marine Porthole Windows 2Light Transmission Size 200 / 250 / 300mm Fireproof Marine Porthole Windows 3



Heavy porthole and medium porthole



1, The structure of heavy portholes (type A) and medium portholes (type B) is basically the same. The main difference between the two is the thickness of the glass. The glass thickness of the A and B portholes of the same specification is larger than that of the latter. The main window frame of the bolted porthole is short and has a flange with bolt holes for installation. The main window frame of the welded side scuttle is longer, without flanges, and is directly welded to the ship structure.



2, According to the opening and installation methods of the side scuttle, it can be divided into the following types: A (or B) type LB (RB) type-bolt installation left (right) opening type side scuttle; A (or B) type SB type-bolt installation total Hinged side scuttle; A (or B) type NB type—bolt-installed fixed port scuttle; A (or B) type LW (RW) type—welded installation of left (right) open side scuttle; A (or B) type SW type— Welding installation of common hinged side scuttle; A (or B) type NW type-welding installation of fixed side scuttle.



3, Heavy-duty side scuttles are used in the space below the bulkhead deck or freeboard deck of sea-going vessels, where the side openings are allowed above the full load waterline, and where watertight and airtight are required. Medium-sized portholes are used for the ends of the side or superstructure above the bulkhead deck or freeboard deck of passenger ships, and the sides and ends of the first superstructure on the freeboard deck of the Philippine passenger ship.
