• Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender
  • Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender
Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender

Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: D Rubber Fender Certificate: CCS ABS LR DNV BV KR RINA
Processing Service: Moulding Feature: Durable,Sealing Performance,Wear Resistance
Type 1: D Fender / DA Arch Fender/ V Fender/ Cell Fender Type 2: Cone Fender/ Cylindrical Fender/ Ladder Fender
Type 3: Roller Fender/ Square Fender/ W Fender/ Wing Fender Accessories: Plate, Nut, Bolt, Washer.
High Light:

600mm Marine Rubber Fender

,

800mm Marine Rubber Fender

,

800mm dock rubber fender

Product Description

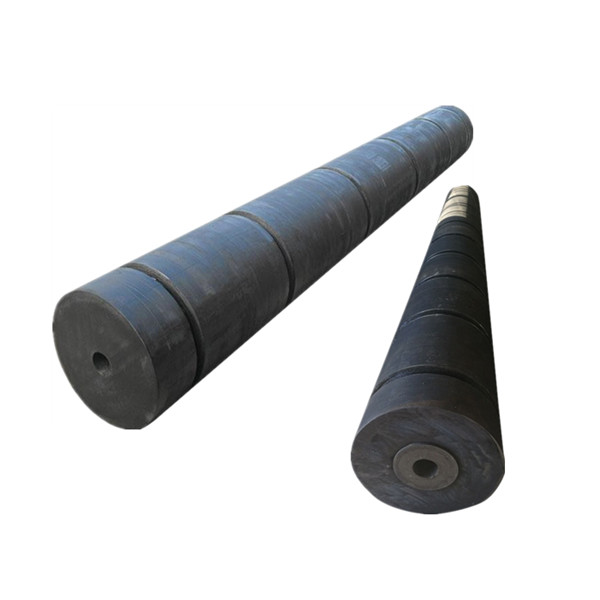

Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender

Tug Rubber Fender For Ship Boat Tugboat Bow Stern Pushing D300 D1000





Specification



type A



D d A B (MAX) C G J
300 150 225 600 700 225 75
400 200 300 670 800 300 100
500 250 300 730 900 375 100
600 300 350 800 900 450 125
800 400 350 930 1000 600 125
900 450 350 1000 1100 675 150
1000 500 350 1060 1200 750 150



type B



D d A B (MAX) J
300 150 225 600 75
400 200 300 670 100
500 250 300 730 100
600 300 350 800 125
800 400 350 930 125
900 450 350 1000 150
1000 500 350 1060 150






Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender 0Tugboat Bow Stern Pushing Dia 600mm 800mm Marine Rubber Fender 1



Classification of Rubber Fender



Generally, rubber fenders can be divided into two categories according to the structure: solid rubber fenders (non-floating type) and floating rubber fenders.



The solid rubber fender (non-floating type) is an anti-collision equipment for dock ships with an earlier application history and a wide range of applications. According to the force of the rubber fender, it can be divided into shear type, rotating type and compression type; according to the structure of the fender, solid rubber fender can be divided into D type, cone, drum, sector, rectangle, cylinder Shaped fenders and so on.



Floating rubber fenders can float freely on the water surface, and can be divided into inflatable rubber fenders and filled rubber fenders according to the different internal buffer media.



The inflatable rubber fender uses compressed air as the medium and uses compressed air to do work to consume collision energy.



Foam-filled fenders are also called solid polyurethane fenders. The cushioning medium inside is mainly closed-cell foam materials, such as foamed EVA, foamed polyurethane, and foamed rubber.





Features and applications of Rubber Fender



The solid rubber fender has high energy absorption and reaction force, and at the same time has the advantages of low cost, long service life, simple installation and maintenance, etc. It is a protective device with more installations in docks and docks.



Floating rubber fender is a relatively new type of fender equipment. Compared with solid rubber fender, its main features are: large compression deformation, large energy absorption, small reaction force, self-floating, and easy installation.



Usually used in ship to ship (ship to ship), ship to wharf (ship to wharf) barge, docking and other occasions; due to its self-floating characteristics, it is also particularly suitable for installation on the wharf where the tide level changes greatly.



Among them, the filled rubber fender is especially suitable for applications in harsh environments, such as offshore drilling platforms, due to its maintenance-free and long-life advantages.
