• 2x24m Ship Rubber Airbag
  • 2x24m Ship Rubber Airbag
2x24m Ship Rubber Airbag

2x24m Ship Rubber Airbag

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS,BV,LR,ABS
Model Number: JVL-62

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $1200-3000/set
Packaging Details: Standard export package
Delivery Time: 45-60 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000set/Month
Get Best Price Contact Now

Detail Information

Product Name: Ship Launching Airbags Part: Marine Airbag
Size: 2x24m Or As Per Customer's Request,1.5m X 15m Diameter: From 100mm To 250mm
Usage: Ship Launching Packing: Standard Package
Name: Marine Equipment / Marine Part Air Bag Supplier / Marine Airbag Length: 5.0m-20m
High Light:

2x24m ship rubber airbag

,

25m ship rubber airbag

,

5m ship rubber airbag

Product Description

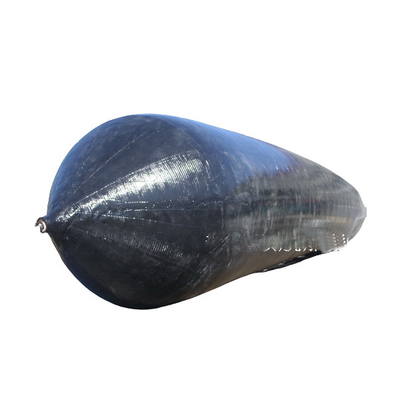

2x24m Ship Rubber Airbag

Marine Rubber Launching Airbags 5-25meter LR Certificate Airbag 2m X 24m Ship Airbags





Specifications:



Diameter Rated Pressure MPa Explosion Pressure Mpa Working height Meter Guaranteed bearing capacity per unit length ton/m
D=1.0m (D=3.28 ft) 0.80 ≥3.6 0.40 75.36
0.50 62.80
0.60 50.24
D=1.2m (D=3.94 ft) 0.70 ≥3.15 0.48 79.13
0.60 65.94
0.72 52.75
D=1.5m (D=4.92 ft) 0.55 ≥2.50 0.60 77.72
0.75 64.76
0.90 51.81
D=1.8m (D=5.90 ft) 0.45 ≥2.10 0.72 76.3
0.90 63.59
1.08 50.87
D=2.0m (D=6.56 ft) 0.40 ≥1.80 0.80 75.36
1.00 62.80
1.20 50.24
D=2.5m (D=8.20 ft) 0.33 ≥1.49 1.00 77.72
1.25 64.76
1.50 51.81



2x24m Ship Rubber Airbag 0



Marine airbag



Marine airbag are widely used for ship docking and launching, large heavy objects lifting and moving, sunken ship salvaging and stranding rescue etc. Compared with the traditional sliding plate and slipway,airbag has the feature of saving time and labor, less investment, flexible, safe and reliable. etc.


Our factory has invested a large amount of labor, material and energy, brought together much professional knowledge in rubber, chemical etc. invested a high strength, overall winding high pressure anti-explosion type airbag. The advantage of this kind of airbag is: it’s internal skeleton structure is more scientific, there’s no joint in the whole airbag body,the skeleton materials’ resistant to pull force can be fully used. Overcoming the weakness of the uneven internal pressure that acts on the airbag body, also avoiding the problem of peeling off of the layers, bubbling and the danger of a sudden explosion.


By many times strict test, the brute force, tensile strength , anti-aging, abrasion resistance etc. indicators of our airbag ranked the forefront of industry. All the natural rubber we used are 1L,3L in best quality , to ensure the sturdy and durable of the product and safety in use; the production technology adopted the advanced technological standard in industry; the complete testing equipment in our company ensure that the raw material, semi-manufactures and finished products pass tests one by one, and make airbags have good bearing capacity, good air tightness, easy to repair and long lifespan, safe and reliable, the product is widely used throughout the world and win the praise of customers.



1. Outer rubber layer


The outer rubber layer that covers the outside of marine airbag to protect under layer from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.



2. Synthetic-tire-cord layer for reinforcement



The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.



3. End fittings


End fittings include Pipe fitting at the inflation end and Pull ring at the sealing end.
