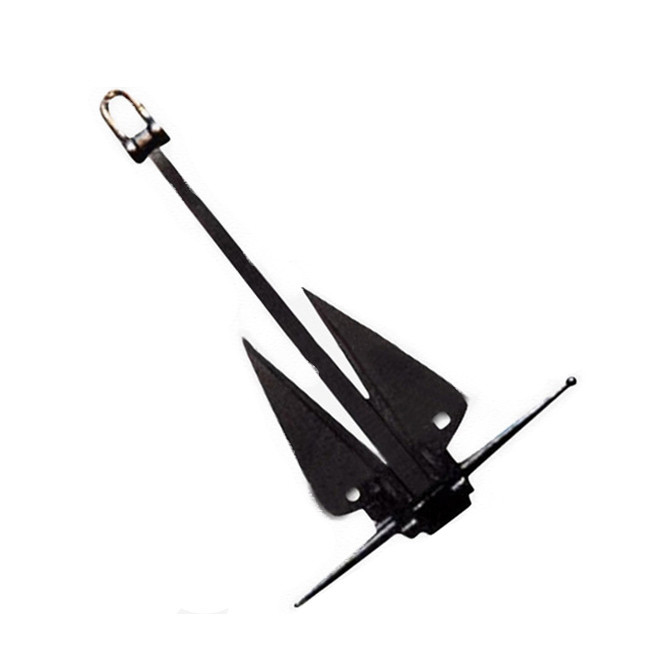

70kg Small Fishing Barge Mooring GB11579-89 Light Weight Anchor

70kg Small Fishing Barge Mooring GB11579-89 Light Weight Anchor

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS
Model Number: Light Weight Anchor

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: Light Weight Anchor Certificate: CCS ABS LR DNV
Weight: 70kg-20000kg Surface: Black Painted
Keywords: Marine Anchor Application: Marine Boat
Class: BV KR RINA MOQ: 1 Set
High Light:

GB11579-89 light weight anchor

,

70kg light weight anchor

,

20000kg light weight anchor

Product Description

70kg Small Fishing Barge Mooring GB11579-89 Light Weight Anchor

Marine Boat Anchor Light Weight Type Small Fishing Barge Mooring


Specification



NOMINAL
WEIGHT(KG)
SIZE(mm)
A B C D E
14 770 730 222 444 288
23 885 840 252 508 328
34 965 915 279 559 366
45 1055 1000 310 610 396
70 1185 1130 348 686 450
90 1205 1140 360 737 480
140 1345 1270 414 825 540
180 1460 1380 450 896 584
230 1560 1480 482 952 610
340 1750 1640 560 1068 680
450 1910 1800 610 1165 740
680 2190 2080 700 1340 840
910 2350 2200 762 1435 940
1140 2580 2450 825 1575 1000
1360 2750 2600 880 1680 1060
1500 2830 2680 912 1730 1080
1820 2940 2790 952 1800 1120
2270 2990 2840 984 1830 1130
2730 3150 2990 1040 1930 1200
3180 3200 3030 1070 1960 1240
3630 3250 3070 1105 1980 1276
4100 3380 3200 1150 2060 1330
4540 3490 3310 1180 2130 1370
5000 3600 3420 1226 2200 1400
5500 3710 3520 1264 2260 1450
5900 3810 3610 1296 2320 1500
6400 3910 3710 1334 2390 1540
6800 3990 3790 1362 2440 1570
7300 4080 3870 1394 2490 1610
7700 4170 3950 1422 2540 1640
8200 4240 4020 1448 2590 1670
8600 4320 4100 1474 2640 1700
9100 4390 4170 1500 2690 1730
10000 4540 4300 1546 2770 1780
11100 4730 4480 1614 2890 1860
13600 5030 4800 1716 3070 1980
15000 5200 4950 1774 3170 2050
16000 5290 5050 1804 3230 2080
18000 5540 5280 1904 3330 2180
20000 5710 5450 1950 3480 2250

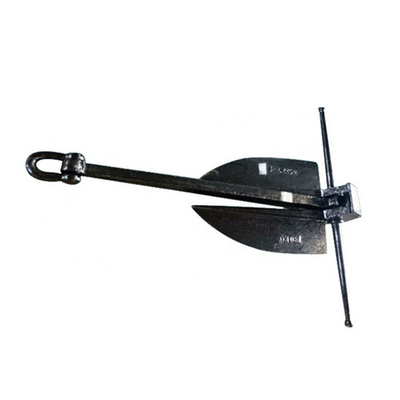

70kg Small Fishing Barge Mooring GB11579-89 Light Weight Anchor 0

Types of Anchor

Modern anchors are made of cast steel or forged steel, and there are four main types.



① Anchor with rod:



The anchor claw and the anchor shaft are usually a whole, and there is a cross bar perpendicular to the plane of the anchor claw. Rod anchors are mostly double claws, and some are single claws. When in use, one claw bites deeper into the soil and has a large holding power, but because of the crossbar, it is inconvenient to store, and it is mostly used for small ships. The main types of rod anchors are navy anchors, single claw anchors, and Japanese anchors.

② Rodless anchor:



The anchor claw and the anchor rod can rotate relative to a certain angle, and there is no cross rod. When in use, the two anchor claws bite into the soil at the same time, which is convenient for anchoring and storage, and is the most widely used. The representative of the rodless anchors is the Hall anchor and its improved Spike anchor.

③ High holding power anchor:



The anchor claw is wide and can be rotated at a certain angle, and there is a protruding rod in the middle of the anchor head or the anchor claw.
The body plays a stabilizing role. Due to the large area of the anchor claws on the soil and the large holding power, it is suitable for sandy or soft soil. The main types of high holding power anchors include Danfoss anchors, Markov large claw anchors, and speedboat anchors.

④ Special anchors:



The shape is different from general anchors, such as fungus-shaped anchors. The anchor heads are fungus-shaped or umbrella-shaped. They bite deeper into the soil, have high grip, and are not easy to move. They are mostly used for long-term anchoring and positioning, such as light boats and buoys. Fixed anchors for, barges, etc.
