• Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
  • Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain
Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain

Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS,BV,LR,ABS,KR
Model Number: JVL-2

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: $6.5/meter
Packaging Details: Standard export package
Delivery Time: 25-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000meters/Month
Get Best Price Contact Now

Detail Information

Material: Steel Color: Black
Size: Customized Application: Marine/Ship/Vessel
Product Name: China Marine Accessories Diameter: 16-130mm
Packing: Standard Exported Package Warranty: 12 Months
High Light:

20mm studless anchor chain

,

40mm studless anchor chain

,

JVL-2 studless anchor chain

Product Description

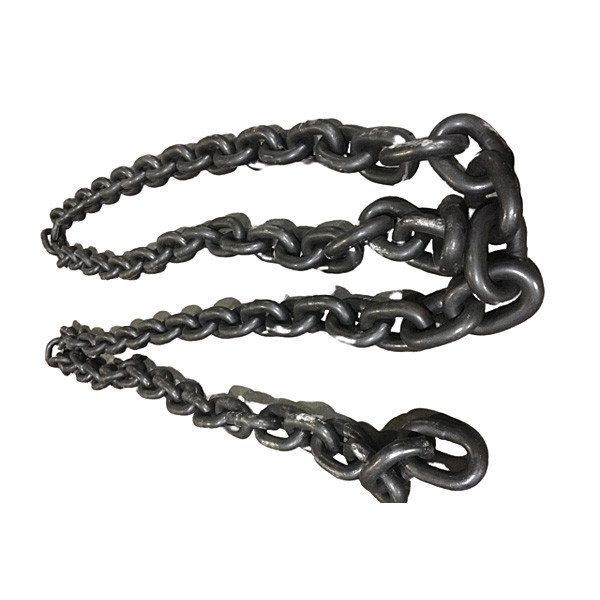

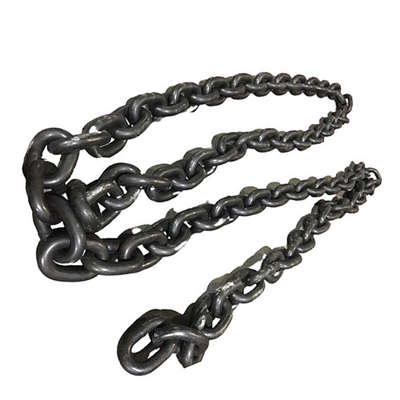

Diameter 20mm 40mm Steel Grade 2 Studless Anchor Chain

Marine Boat Accessory Ship Steel Grade 2 U3 Anchor Chain 20mm 40mm Studless Anchor Chain





Features:


* Three materials for your reference: Carbon steel, stainless steel, Galvanized steel
* Can be customized according to customer needs
* 24-hour online service
* For more details, please feel free to contact Customer Service.





1. Marine ship yacht boat light:

Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.

2. Marine deck:

Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)

3. Marine deck mooring:

Anchor, Anchor chain.

4. Marine life-saving:

A rescue boat, Life Jacket, Buoy, etc.

5. Customized products according to customers' request.



Advantage:



We produce AM1, AM2, AM3 anchor chains, mooring chains, and other various specifications link chain from dia 6mm-130mm.

We also can provide all kinds of marine supporting products such as anchors, anchor chains, decking fittings, nd vessel machinery.



I. Packaging

1.Wooden Case; 2.Iron Frame; 3. According to customers' request;
II. Shipping
By Express/ Air/ Sea/ Train.



Q1: Why we choose you?

11 professional engineers can provide overall solution services.

13 years specializing in marine deck equipment.

18 long-term cooperation supporting factories.

24 hours a day after-sale technical support.

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal, etc..

Q3: How about the Delivery Time?

We could finish the production within 30 days

Q4: What's the MOQ?

MOQ is 1 set.



Contact Debbie Liu for more details!



Weight of Anchor Chian Fittings
Chain
Diameter
mm
Stud Link Chain kg/27.5m Common
Link
Enlarged
Link
End
Link
Kenter
Shackle
Joining
Shackle
End
Shackle
Swivel Swivel
Shackle
A.SW.S(a)
Swivel
Shackle
A.SW.S(b)
14 128 0.26 0.39 0.32 0.6 0.67 1.5 1.05
16 150 0.35 0.49 0.57 0.65 0.95 1.52 1.34
17.5 197 0.5 0.66 0.67 0.88 1.34 2.05 1.73
19 236 0.66 0.85 1.06 1.13 1.84 2.41 2.17
20.5 268 0.8 1.02 1.06 1.36 2.2 3.25 2.2
22 324 1.04 1.3 1.58 1.64 2.66 3.95 3.5 17.5 7.6
24 370 1.3 1.65 1.84 2.13 3.4 5.12 4.53 17.5 9.9



Mechanical Properties

   Anchor Chain

Grade
Yield Point
(N/mm2,min)
Tensile Strength
(N/mm2,min)
Elongation
(%,min)
Reduction of Area
(N/mm2,min)
Impact Test (V-notch)
Test Temperature (°C)
Impact (J, min)
2
≥295
490~690
≥22
0
≥40
3
≥410
≥690
≥17
≥40
0
≥60
≥50(weld)
