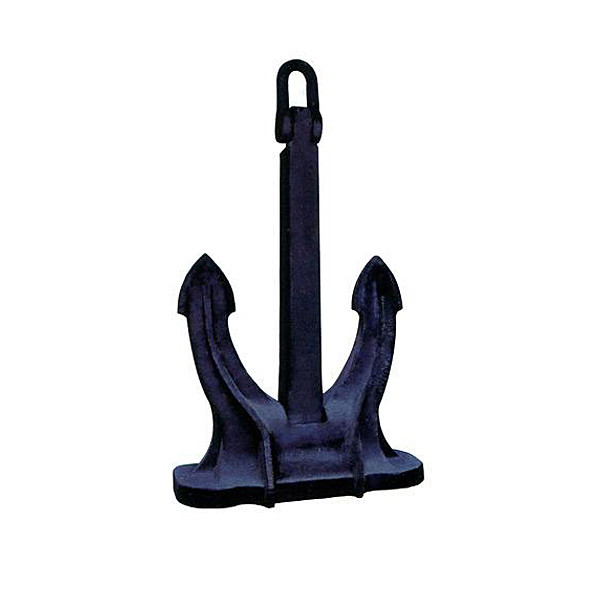

JVL-6 Cast Iron 20Tons High Holding Power Spek Marine Boat Anchors

JVL-6 Cast Iron 20Tons High Holding Power Spek Marine Boat Anchors

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS,BV,LR,ABS,KR
Model Number: JVL-6

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $8/kg
Packaging Details: Standard export package
Delivery Time: 30-55 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/Month
Get Best Price Contact Now

Detail Information

Material: Cast Iron Surface: Black Bitumen Paint
Application: Ships / Vessels Product Name: High Holding Power Anchor
Packing: Wooden Box Name: Spek Anchor
Surface Treatment: Black Painted Oem: Accept
High Light:

20Tons Marine Boat Anchors

,

JVL-6 Marine Boat Anchors

,

20Tons spek type anchor

Product Description

JVL-6 Cast Iron 20Tons High Holding Power Spek Marine Boat Anchors

Marine Boat Anchors 20 Ton High Holding Power Anchor Black Bitumen Paint Spek Anchor Cast Iron Fishing Boat Anchors​





Product name Bruce/Claw anchor, Danforth/Fluke anchor, Delta/Wing anchor, Plow/CQR anchor, River anchor, Mushroom anchor, Stock anchor, Pool anchor, Navy anchor, etc
Material Carbon steel
Color Black
Size Standard or OEM
Surface treatment High mirror polished, Galvanized
Finish Painting, polishing, plating, etc.
Weight 100-26000kg
Technics Precision casting
Certificate CCS, GL, KR



Product Details:


· High Holding Power anchor
· Material: Carbon steel
· Nominal Weight: 160kg to 50000kg
· Finishing: black painting or hot dip galvanized
· Optional Material: Stainless steel
· Certificate: DNV-GL, BV, ABS, LRS, RINA, RS, CCS



No. Nominal
Weight(KG)
Size(mm)
A B C D E H
JV06-80 80 339 468 108 611 336 222
JV06-105 105 371 512 120 669 336 242
JV06-135 135 371 512 149 669 368 254
JV06-240 240 445 613 182 800 440 304
JV06-300 300 527 727 168 949 522 344
JV06-360 360 527 727 190 949 522 358
JV06-420 420 590 813 188 1062 584 385
JV06-480 480 590 813 211 1062 584 395
JV06-570 570 652 900 208 1175 647 428
JV06-660 660 653 900 208 1175 647 428
JV06-780 780 725 1000 231 1305 718 473
JV06-900 900 725 1000 264 1215 718 485
JV06-1020 1020 793 1093 252 1428 785 518
JV06-1140 1140 793 1093 277 1428 785 530
JV06-1290 1290 858 1183 273 1544 850 561
JV06-1440 1440 858 1183 299 1544 850 573
JV06-1590 1590 920 1268 293 1655 911 604
JV06-1740 1740 920 1268 315 1655 911 611
JV06-1920 1920 980 1350 312 1761 970 640
JV06-2100 2100 980 1350 337 1761 970 650
JV06-2280 2280 1038 1430 331 1866 1027 678
JV06-2460 2460 1038 1430 355 1866 1027 688
JV06-2640 2640 1090 1500 347 1959 1079 712
JV06-2850 2850 1190 1500 380 1950 1079 722
JV06-3060 3060 1144 1578 365 2058 1133 748
JV06-3300 3300 1144 1578 387 2058 1133 760
JV06-3540 3540 1202 1656 383 2159 1189 785
JV06-3780 3780 1202 1656 405 2159 1189 797
JV06-4050 4050 1257 1732 400 2258 1244 821
JV06-4320 4320 1257 1732 422 2258 1244 831
JV06-4590 4590 1257 1732 444 2258 1244 841
JV06-4890 4890 1338 1846 426 2405 1325 874
JV06-5250 5250 1338 1846 450 2405 1325 888
JV06-5610 5610 1432 1974 431 2405 1418 936
JV06-6000 6000 1432 1974 457 2577 1418 936
JV06-6450 6450 1432 1974 483 2577 1418 950
JV06-6900 6900 1533 2112 462 2757 1518 1001
JV06-7350 7350 1533 2112 488 2757 1518 1001
JV06-7800 7800 1533 2112 514 2757 1518 1015
JV06-8300 8300 1621 2234 489 2916 1605 1059
JV06-8700 8700 1621 2234 517 2916 1605 1059
JV06-9300 9300 1621 2234 545 2916 1605 1074
JV06-9900 9900 1726 2380 520 3015 1709 1128
JV06-10500 10500 1726 2380 550 3105 1709 1128
JV06-11100 11100 1726 2380 580 3105 1709 1138
JV06-11700 11700 1819 2507 554 3273 1801 1188
JV06-12300 12300 1819 2507 580 3273 1801 1188
JV06-12900 12900 1819 2507 607 3273 1801 1200
JV06-13500 13500 1904 2624 577 3425 1885 1243
JV06-14100 14100 1904 2624 607 3425 1885 1243
JV06-14700 14700 1904 2624 650 3425 1885 1243
JV06-15400 15400 1904 2624 657 3425 1885 1263
JV06-16100 16100 2018 2782 612 3632 1998 1318
JV06-16900 16900 2018 2782 638 3632 1998 1318
JV06-17800 17800 2018 2782 683 3632 1998 1318
JV06-18800 18800 2018 2782 699 3632 1998 1343
JV06-20000 20000 2170 2990 652 3905 2148 1416
