Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: BV, CCS, etc
Model Number: Cylindrical Rubber Fender

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Nude packing/ Pallet
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Rubber Fender Cylindrical Rubber Fender Cylinder Fender For Jetty Port Dock Material: 100% Original Rubber Fender
Class Certificate: ABS, BV, CCS Application: Marine Dock, Port, Jetty
Type: Cylindrical Rubber Fender MOQ: 1PC
Size: Customized Color: Black
High Light:

1800mm cylindrical rubber fender

,

2000mm cylindrical rubber fender

,

1600mm cylindrical rubber fender

Product Description

Outer Dia 1800mm 2000mm Cylindrical Rubber Fender For Jetty Port Dock

Marine Rubber Fender Cylindrical Rubber Fender Cylinder Fender For Jetty Port Dock





Features of Cylindrical Rubber Fender



Cylindrical fender is simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted. With advantages of progressive load-deflection Cylindrical fenders are suitable for both large and small vessels, and with a wide choice of sizes and diameter ratios , the performance of cylindrical fender can be closely matched to requirements in each case.



1. Low reaction force, medium surface pressure and reasonable energy absorption,
2. Applicable for longitudinal shift and lateral movement of ships while ship calls at the dock.
3. Applicable for different ships and different docks.
4. Multiple installations and easy maintenance.



Specifications



Unit: mm

Spec. Outer Dia. D Inner Dia. d Length Note
Y150 150 75 500-30000 Other sizes can be customized
Y200 200 100
Y250 250 125
Y300 300 150
Y350 350 175
Y400 400 200
Y450 450 225
Y500 500 250
Y600 600 300
Y700 700 350
Y800 800 400
Y900 900 450
Y1000 1000 500 1000-20000
Y1100 1100 550
Y1200 1200 600
Y1300 1300 650
Y1400 1400 700
Y1500 1500 750
Y1600 1600 800
Y1800 1800 900
Y2000 2000 1000



Application



• Bulk cargo berths

• General cargo quays

• Fishing and work boat berths

• Pontoons and floating structures

• RoRo and ferry terminals

• Tug havens



Shipping list



1. Cylindrical fender

2. Center Support Bar

3. Chain System

4. Pre-Built Sets

5. Bolts & Nuts

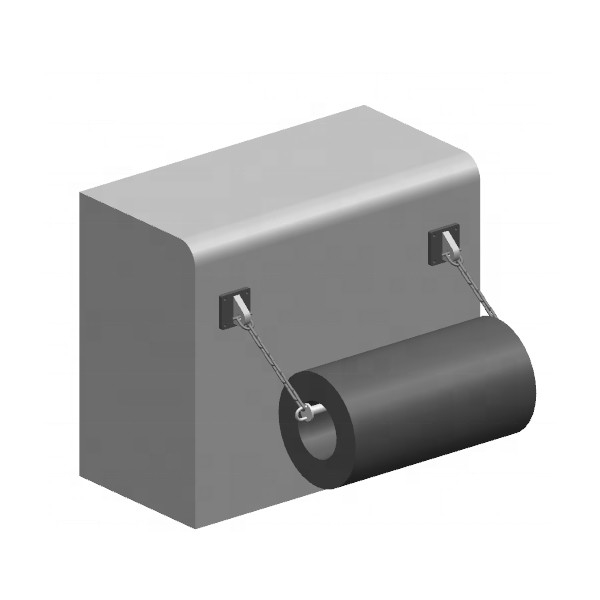

P.S. There are several installation methods with chain/steel bar/special ladder brackets for different weight of cylindrical fender, please choose suitable one according to actual fender size.

We provide customized services not only for fender specification, but also for project design, installation and specified accessories to meet various requirements of different customers.



Our Rubber Fender Type



Super cell rubber fender, Cone rubber fender, Arch V rubber fender, V rubber fender, cylinder rubber fender, Tug rubber fender for ship, D type rubber fender, GD(Wing-D) rubber fender, ME elements rubber fender, Ladder rubber fender, Floating fender, foam filled fender, Pneumatic rubber fender, roller fender, Square fender, BF fender, corner fender, TT π rubber fender, W fender
