Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory

Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 days
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Marine Window Porthole Side Scuttle Application: Ship Marine Boat Vessel Yacht Offshore
Material: Aluminum/ Steel/ Copper/ Stainless Steel Feature 1: Bolted/ Welded
Feature 2: Fireproof/ Soundproof/ Fire Resistance/ Waterproof Type: Rectangular/ Round
Leaf: Double/ Triple Glass: Toughened Glass
High Light:

600x300mm Marine Boat Accessory

,

700x400mm Marine Boat Accessory

,

600x300mm marine sliding windows

Product Description

Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory

Marine Boat Accessory Sliding Window Side Scuttle Stainless Steel Soundproof Ship





Specification



Type DY Type NO
WxHxR100 normal size W1xH1xR140 cutout steel size D Weight WxHxR100 normal size W1xH1xR140 cutout steel size D Weight
(exc glass) KG (exc glass) KG
600x300 700x400 80~100 3.2 450x600 550x700 54~80 2.9
700x400 800x500 3.9 550x600 650x700 3.2
800x600 900x700 4.1 650x600 750x700 3.4
900x600 1000x700 4.7 700x700 800x800 3.8
1000x700 1100x800 5.1 750x700 850x800 4.1
1200x800 1300x900 5.9 750x750 850x850 4.3



Side Scuttle



Side Scuttle is a water-tight circular window set on the side shell, superstructure and outer wall of the deckhouse of the ship. It is generally composed of the main window frame, glass pressing plate, storm cover, etc. Marine side scuttles, together with their glass and side scuttle cover (storm cover), should be of solid structure, and should be able to close effectively and ensure watertightness.



Classification of Side Scuttle



According to ISO standards, side scuttles are divided into three basic types according to the maximum allowable pressure they can withstand: Type A heavy side scuttle, Type B medium side scuttle and Type C light side scuttle. Type A and Type B have inner storm covers. Port scuttles can be divided into left-opening (L), right-opening (R), co-hinge (S) and fixed (N) according to whether the window sash frame with glass can be opened. Type window; According to its installation method, it can be divided into bolt installation (B) or welding installation (w).

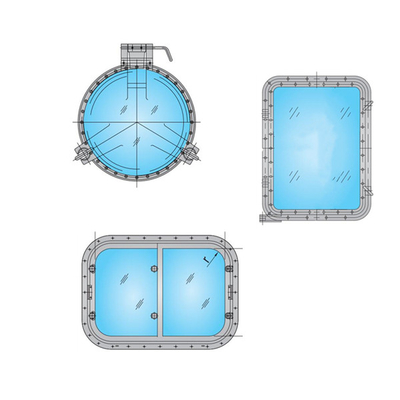

Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory 0Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory 1



Light Side Scuttle



Light-duty side scuttles (type c) can be divided into the following types according to their opening and installation methods: C-type LRB type—bolt-mounted open porthole; C-type NB type—bolt-mounted fixed porthole; C-type LRW type—welded installation Open porthole; C-type NW type—fixed porthole for welding installation.



Light portholes are used on the side and rear of the superstructure above the first deck above the bulkhead deck of passenger ships or the freeboard deck; it can also be used on the side and rear of the surrounding wall above the first superstructure above the freeboard deck of non-passenger ships Ends.



Main accessories of Side Scuttle



1, Main frame: The basic frame of marine windows that are fixed to the structure by bolts or welding.



2, Glassholder: a metal part used to fix various open ship window glass panels.



3, Deadlight: a heavy-duty hinged cover used to prevent the impact of sea water.



4, Stormshuteer: a heavy-duty hinged cover used to prevent the impact of sea water.



Material selection of Side Scuttle



1, The main parts such as the main window frame, window sash frame, glass pressing ring and storm cover of marine side scuttle shall be made of marine corrosion-resistant materials. These parts can be made of actinium, steel, aluminum alloy and other different materials and assembled together, but welded side scuttles The main window frame directly welded to the steel hull structure shall be carbon steel.



2, The porthole glass should be made of transparent or frosted toughened safety glass, and the gasket material should be a rubber gasket that is resistant to seawater and ultraviolet radiation.



3, Other parts of the side scuttle, including the hinge bolts, hinge pins and nuts in the locking device, and the hinge pins for the window frame and storm cover shall be made of corrosion-resistant metal materials, and the hinge pins may be made of stainless steel.

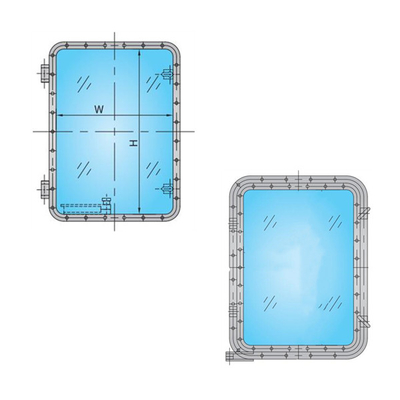

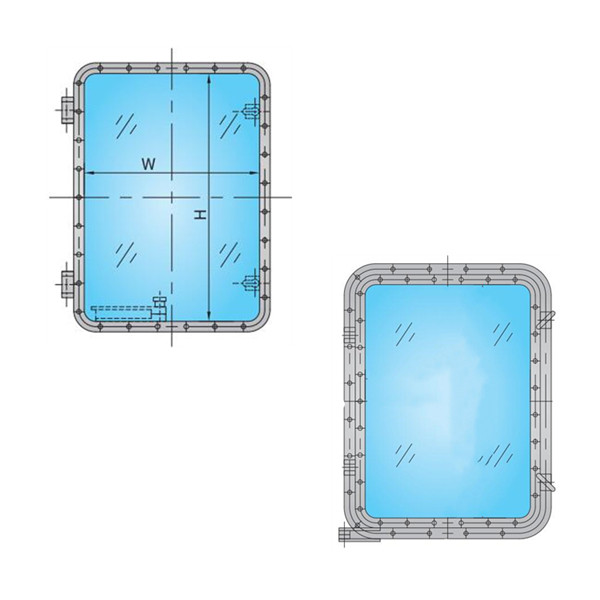

Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory 2Toughened Glass 600x300mm Soundproof Sliding Window Marine Boat Accessory 3
