Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door

Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 10 days
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Marine Door Application: Ship Marine Boat Vessel Yacht Offshore
Material: Aluminum/ Steel/ Copper/ Stainless Steel Feature 1: Manual/ Electric/ Pneumatic/ Hydraulic
Feature 2: Watertight/ Gastight/ Spraytight/ Weathertight/ Fireproof Type: Flush/ Hand Wheel/ Sliding
Sill: Low/ Removable Size: Customized Size
High Light:

1000*500mm marine weathertight door

,

1200*600mm marine weathertight door

,

1400*600mm marine weathertight door

Product Description

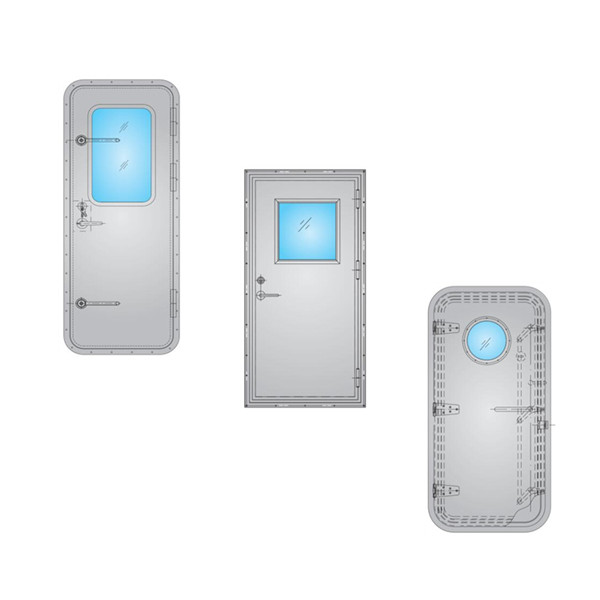

Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door

Marine Boat Accessory Weathertight Gas Tight Soundproof Sliding Door Yacht Ship





Specification



Type Clear size Leaf Size Open size of wall Weight
  H1*W1   Leaf Thickness
H*W(mm) (mm) AF,BF,CF,DF AY,BY,CY,DY 4 6 8
1050 1000*500 1055*555 1100*600*R80 1100*600*R150 22 30
1260 1200*600 1255*655 1300*700*R80 1300*700*R150 30 41
1460 1400*600 1455*655 1500*700*R80 1500*700*R150 35 55 77
1475 1400*750 1455*805 1500*850*R80 1500*850*R150 45 66 92
1490 1400*900 1455*955 1500*1000*R80 1500*1000*R150 60 77 107
1660 1600*600 1645*645 1700*700*R80 1700*700*R150   63 87
1675 1600*750 1645*805 1700*850*R80 1700*850*R150   75 104
1690 1600*900 1645*945 1700*1000*R80 1700*1000*R150   88 121
1860 1800*600 1845*645 1900*700*R80 1900*700*R150   70
1875 1800*750 1845*805 1900*850*R80 1900*850*R150   76
1890 1800*900 1845*945 1900*1000*R80 1900*1000*R150   97



Making Process



Manufacturing door leaf→correcting→checking flatness→assembling→hose testing→watertight testing→measuring paint thickness



Options



Bumper, Door closer, C2 lock, ISPS device, Portlight, Limit switch



Type



AF, AY, BF, BY, CF, CY, DF, DY

Dog clips / Single Handle / Round handle



Surface Treatment



Sand-blasted to Sa2.5 and primer (for steel parts)

Galvanized (for dogs and mechanism)









Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door 0Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door 1



Doors and windows



Doors and windows are divided into enclosure members or partition members according to their different positions. There are different design requirements to have functions such as heat preservation, heat insulation, sound insulation, waterproofing, and fire prevention. The new requirements are energy-saving. Cold areas are caused by the gaps between doors and windows. The heat loss accounts for about 25% of the total heating heat consumption. The airtightness requirements of doors and windows are an important part of energy-saving design. Doors and windows are an important part of the building envelope system.



Function 2: Doors and windows are also an important part of architectural modeling (contrast between virtual and real, rhythmic artistic effects, play an important role), so their shape, size, proportion, arrangement, color, modeling, etc. have an impact on the overall shape of the building. Have a great impact.



Doors and windows



Doors:



indoor, indoor and outdoor transportation links and evacuation (concurrently play the role of ventilation and lighting)-size, location, opening, structure.



Window:



ventilation, daylighting (the role of observation)-size, form, opening, structure.



1, Doors and windows are divided into enclosure members or partition members according to their different positions. There are different design requirements to have functions such as heat preservation, heat insulation, sound insulation, waterproofing, and fire prevention. The new requirements are energy-saving. Cold areas are caused by the gaps between doors and windows. The heat loss accounts for about 25% of the total heating heat consumption. The airtightness requirements of doors and windows are an important part of energy-saving design. Doors and windows are an important part of the building envelope system.



2, Doors and windows are also an important part of architectural modeling (contrast between virtual and real, rhythmic artistic effects, play an important role), so their shape, size, proportion, arrangement, color, shape, etc. must be very important to the overall shape of the building Impact.



3, Many people in modern times install double-glazed doors and windows. In addition to enhancing the effect of heat preservation, a very important function is sound insulation. The prosperous city, dense housing, developed traffic, and sound insulation are more and more popular.



Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door 2Soundproof Size 1000*500mm 1200*600mm Marine Weathertight Door 3
