Product Name: Marine Boat Accessory Ship Veseel Boat CCS BV LR U2 U3 Grade Stud Link Anchor Chain Surface: Black Paint
Material: Carbon Steel Class Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS
Application: Marine Boat Ship Vessel Type: Stud Link Anchor Chain
Length: 27.5m/Length Or 25m/Shackle Grade: U2, U3
High Light:

14mm stud link anchor chain

,

16mm stud link anchor chain

,

22mm stud link anchor chain

Product Description

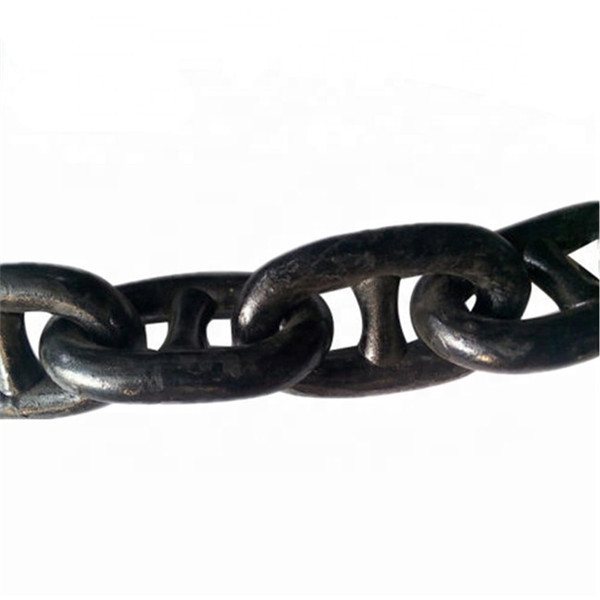

Diameter 14mm 16mm 22mm Carbon Steel U2 / U3 Grade Stud Link Anchor Chain

Marine Boat Accessory Ship Veseel Boat CCS BV LR U2 U3 Grade Stud Link Anchor Chain





Specification of Stud Link Anchor Chain



Diameter
MM
Proof Load Breaking Load
Grade 2
KN
Grade 3
KN
Grade 2
KN
Grade 3
KN
14 82 116 116 165
16 107 150 150 216
17.5 127 179 179 256
19 150 211 211 301
20.5 175 244 244 349
22 200 280 280 401
24 237 332 332 476
26 278 389 389 556
28 321 449 449 642
30 368 514 514 735
32 417 583 583 833
34 468 655 655 937
36 523 732 732 1050
38 581 812 812 1160
40 640 869 869 1280
42 703 981 981 1400
44 769 1080 1080 1540
46 837 1170 1170 1680
48 908 1270 1270 1810
50 981 1370 1370 1960
52 1060 1480 1480 2110
54 1140 1590 1590 2270
56 1220 1710 1710 2430
58 1290 1810 1810 2600
60 1380 1940 1940 2770
62 1470 2060 2060 2940
64 1560 2190 2190 3130
66 1660 2310 2310 3300
68 1750 2450 2450 3500
70 1840 2580 2580 3690
73 1990 2790 2790 3990
76 2150 3010 3010 4300
78 2260 3160 3160 4500
81 2410 3380 3380 4820
84 2580 3610 3610 5160
87 2750 3850 3850 5500
90 2920 4090 4090 5840
92 3040 4260 4260 6080
95 3230 4510 4510 6440
97 3340 4680 4680 6690
100 3530 4940 4940 7060
102 3660 5120 5120 7320
105 3850 5390 5390 7700
107 3980 5570 5570 7960
111 4250 5940 5940 8480
114 4440 6230 6230 8890
117 4650 6510 6510 9300
120 4850 6810 6810 9720
122 5000 7000 7000 9990
124 5140 7200 7200 10280
127 5350 7490 7490 10710



Types of anchor chain



According to the chain structure:

Stud Chain and Studless Chain.

When the diameter of the anchor chain equipped as required does not exceed 17mm, it can be replaced by a studless anchor chain with the same test load, or a steel wire or fiber rope with the same breaking load.



According to manufacturing method:

Cast steel anchor chain, electric welded anchor chain and forged anchor chain.

Electric welded anchor chains have been most widely used on merchant ships.

Almost all anchor chains are manufactured by flash welding, and cast anchor chains are rarely used.

Except that most of the anchor chain accessories are forged parts, forged anchor chains have basically been eliminated.



According to the purpose:

Ship anchor chain and marine mooring chain



Grade of anchor chain



Stud link anchor chain: AM1=Grade U1, AM2=Grade U1, AM3=Grade U3

Studless anchor chain: BM1=Grade U1, BM2=Grade U1, BM3=Grade U3

New grades (mooring chain): R3, RQ3, R4, R4+, R5



The composition of the anchor chain



D Type End Shackle, ES

Open End Link, E

Enlarged Link, EL

Swivel, SW

Common Link, C

Detachable Joining Shackle/Detachable Joining Link



27.5m/Length or 25m/Shackle



Anchor end link: the first link of the anchor chain, the front end of the anchor chain, and the anchor chain whose ES is directly connected to the anchor shackle of the first anchor. According to national regulations, the first section should have a swivel.

New type of connection accessory: Swivel Shackle (SW.S). One is Type A, which is directly installed on the anchor to replace the anchor shackle. The other is type B, which is installed at the end of the anchor chain instead of the end shackle and connected with the anchor shackle. After setting the swivel shackle, the anchor end chain link may not be provided with the swivel and end shackle.



End link: the last link of the anchor chain, connected with the anchor abandoned device. Under normal circumstances, the end link is not equipped with a swivel ring, and the end link is connected to the anchor abandoned device. The matching form is shown in the figure. In order to be able to swap the ends of the anchor chain in a planned way, the chain link configuration form basically the same as that of the anchor end link can also be adopted, with a swivel but no end shackle. At this time, the ring bolt of the swivel should also face The middle link.



Intermediate link: The anchor link between the anchor end link and the end link. If the intermediate links are connected by connecting links, all the links are ordinary links.

my country stipulates that Kent shackles are used to connect the knots of a geared anchor chain, and the knots of a studless anchor chain are connected to the knots.

The enlarged link of the studless anchor chain is a studless ring that is one gear larger than the ordinary chain link.
