• Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W
  • Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W
Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W

Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CCS,BV,LR,ABS
Model Number: JVL-135

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: $40-100/set
Packaging Details: Nude packing
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Pendant Light Certification: CCS
Warranty: 12 Months Application: Ship Or Platform
After-sales Service Provided: Online Support Color: Milky White
Protecttion Class: IP56 Voltage: 110V/220V
High Light:

13KW Marine Deck Crane

,

5m Marine Deck Crane

,

13KW marine electric crane

Product Description

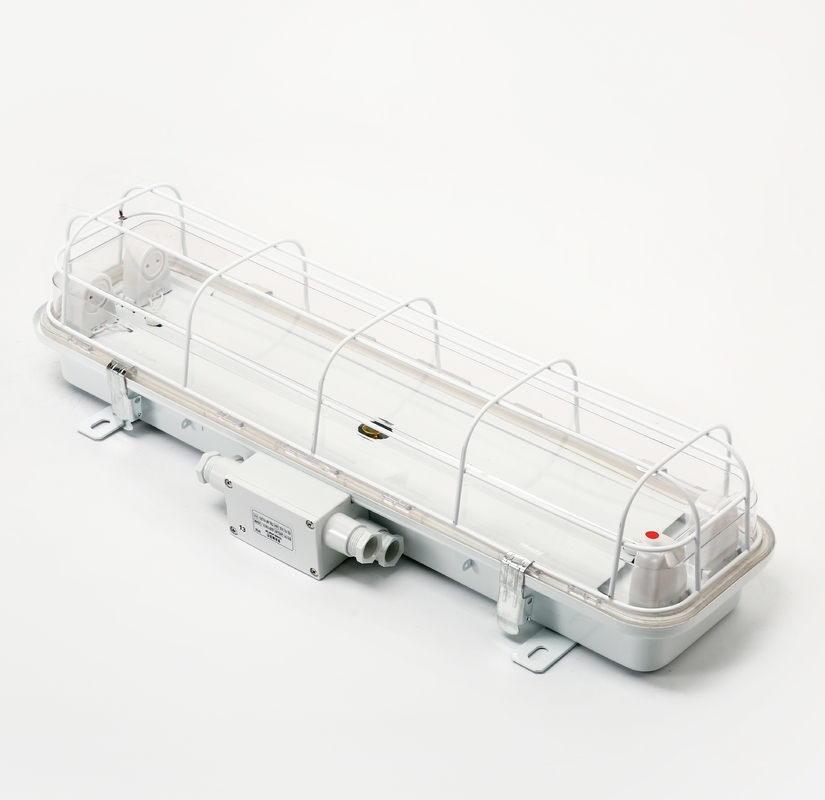

Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W

Marine Pendant Light JCY23-2EF Fluorescent Pendant Light 20W 30W 40W





The scope of application:
Applied to illumination of water dripping, water spattering, water
coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline,
weather deck and etc.


Products characteristic:
1. The shell adopts good quality stretch-formed steel plate, lampshade is
injection molded by PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing
rod with the mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb,
there is mark on th edge of lampshade, remark clear that need the
emergency device when order.
5. Equipped with compensating capacitance inside, start rapidly.
6. The junction box is improved to double-channel connection mode, the design is more user-friendly.


Production authentication:
Approval by CCS(China Classification Society), certificate number
ZJ20P4028-1.


Adopt standard:
Conform to CB/T3857-1999 standard



Type Power Voltage Lamp holder Cable outside diameter Protection class Weight Remark
JCY23-2 2×20W 110V/60Hz
220V/50Hz
220V/60Hz
G13 12-16 IP56 5.35kg
JCY23-2E 5.35kg With socket
JCY23-2EF 5.5kg
JCY33-2 2×30W 9.0kg
JCY33-2E 9.0kg With socket
JCY43-2 2×40W 8.95kg
JCY43-2EF 8.95kg With socket



Main products:
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products: according to customers' requests.


Chongqing Juvi marine machinery company is an integrated marine technology company that presently specializes in product design, production, and sales. Juvi company is administered by the marine equipment production systems. Every factory that our partnership has passed these,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL, and other related systems authentication.
More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry.



Our Major Products

1. Marine Navigation Signal Light.
2. Marine Ceiling Light, Wall Light, Portable Light, Deck Work Light, Bedside Light, Mirror Light, etc.
3. Marine Searchlight, Flood Light, etc.
4. Marine Explosion-proof Light.
5. Plug/Socket/Switch/Junction Box, etc.

Q1: Why we choose you?


11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
