Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS
Model Number: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Windshield Window Glass Wiper Application: Boat Yacht Ship Vessel Marine
Heater: Optional Voltage: AC 220V/ DC 24V
Model: Electric Installation: Positive/ Reverse
Arm: Single/ Double Protection Class: IP56
High Light:

Horizontal Marine Windshield Wiper

,

Boat Yacht Marine Windshield Wiper

,

IP56 Marine Windshield Wiper

Product Description

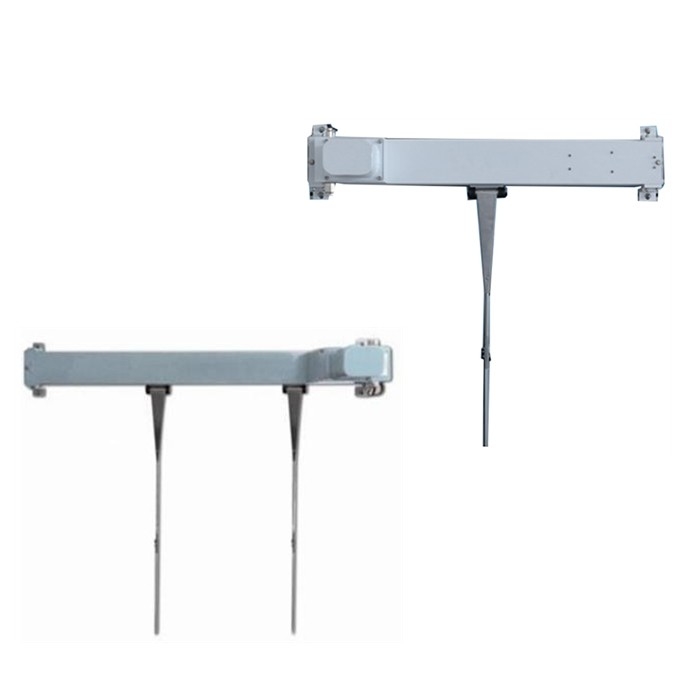

Boat Yacht Horizontal Marine Windshield Wiper 1 Arm 2 Blades

Straight Line Horizontal Boat Ship Window Wiper Marine Clear View Screen 1 Arm 2 Blades





Specification


Window Wiper
Application: Boat Yacht Ship Vessel Marine.
Voltage: AC 220V/ DC 24V.
For glass: flat/ not-flat.
Arm: . Single/ Double
Optional: Heater/ Spray Water.
Installation: Positive/ Reverse.




1.Power supply: AC 220V,AC 110V,DC 24V
2.Frequency: 50Hz/60Hz
3.Wipe speed: 0.31.2m/sec
4.Consumed power of motor: ≤120W
5.Consumed power of heater: ≤450W
6.Protection grade: IP56
7.Outline dimension of control box(only for reference): Box(mm): 88×80×98
Faceplate(mm): 120×100×4
8.Power box external dimensions: Box(mm): 88×80×98
Mounting dimensions:210×265
9.Installation: Main unit is mounted above outdoor side scuttle with the rod swinging downwards. If needing other installation method, both parties should confirm a special design and note it in technical specification.
10.weight: ≤26Kg
Optional parts: heater, waterworks, automatic resetting.





Wiper



horizontal electric window wiper is a kind of electrical window wiper to be used for side scuttles in pilothouse and operating cab in a vessel. It is powered via an speed-adjustable motor. Its guide rail is made of aluminum alloy, which drives rubber wiper blade mounted at lower end of stainless steel swing rod to wipe the glass horizontally; thus to wipe off sea Water,Rainwater and snow, as a result, to obtain a clear visual field. This product is appropriate for various naval vessels and civil vessels.





Instructions



On a rainy day, when raindrops fall on the window glass, the line of sight in front of the boat is quickly obstructed, and the vehicles, pedestrians and scenery become blurred. At this time, turn on the wiper and the front of the boat will be clear.

If the vehicle is driven in rainy weather, the wiper is not used or the wiper fails to work normally, it is very unfavorable to driving safety.

(1) Before heavy rain, check whether the boat wiper can work normally.

(2) In a rainstorm, rapid and large raindrops hit the windshield, even if the wiper moves fast, it will be difficult to wipe off the raindrops, causing the driver's sight to be affected. In order to ensure driving safety, stop driving immediately.



For example, the reason why the wiper is not clean: The reason why the wiper is always not clean is the invisible dirt on the glass. First, the boat is parked at the downwind of the central air-conditioning cooling water tower. The particles of the water torn by the cooling water tower are scattered on the glass to form small white spots. After drying, it is difficult to completely remove them; the second is that the vehicle is parked under a tree and insects are secreted. The slime sticks to the boat glass; the third is the slime of insect corpses that was crushed by long-distance running at high speed. Because these things stick to the glass, it is difficult to completely remove them with water and boat wipes (but they can't be seen), forming an uneven surface on the glass. In this way, when the wiper is used, the glass will not be cleaned. Soak the glass with water, and gently touch the glass back and forth with your hands. If the surface of the glass is not smooth, it means that there is a foreign body. When cleaning, you can try to wipe it with warm water several times, then gently rub it with your hands, or use newspaper to remove these difficult-to-remove dirt little by little. The effect is good. After washing with water, touch the glass with your hands. Very smooth. At this point, turn on the wiper and have a try. The scratches are very clean. boat owners in such sunny conditions can try.





6. It is best to use the second gear for the wiper to wipe back and forth continuously.

Some riders like to use intermittent mode to scrape in light rain, which is not good. Driving on the road is not only to prevent the rain from the sky, but also to prevent the muddy water splashed by the vehicle in front. In this case, the intermittent mode can easily scrape the front window into a muddy pattern, which seriously affects the line of sight.

7. When the rain stops on the road, don't rush to turn off the wiper.

The principle is the same as the above. When the front window is splashed with the mud pips brought up by the boat in front, and then the wiper is hurriedly turned on, it will become mud scraping.
