IP44 Marine Boat Accessory Single Engine Telegraph System AC220V

IP44 Marine Boat Accessory Single Engine Telegraph System AC220V

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS
Model Number: JVL-107

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Standard export package
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000Set/Month
Get Best Price Contact Now

Detail Information

Product Name: Main Engine Telegraph System Power Supply: AC220V/DC24V
Environment Temperature:: -10C ~ +55C Relative Humidity:: < RH95%
IP Class: IP20/IP22/IP44 Hull Material: ABS
Installation: Flush Type Colour: Black
High Light:

Marine Single Engine Telegraph System

,

Single Engine Telegraph System AC220V

,

CCS Single Engine Telegraph System

Product Description

IP44 Marine Boat Accessory Single Engine Telegraph System AC220V

Marine Main Engine Telegraph System Single Engine Telegraph Transmitter CCS Cert







Power Supply: AC220V (110V-240V) /0.2A
  DC24V(18V-36V)/1A .
Environment Temperature: -10C ~ +55C
Relative Humidity: < RH95%
Passive contacts for alarm output with the capacity of
AC250V/1A or DC36V/1A .

With measures against vibration, humidity, salt fog and mildew.



No. Name Model Weight IP class
1 Double engine telegraph transmitter CL-2T 0.8kg IP20
2 single engine telegraph transmitter CL-T 0.45kg IP20
3 engine telegraph transmitter CL-R 0.65kg IP44
4 double engine telegraph repeater CL-2F 0.8kg IP20
5 single engine telegraph repeater CL-F 0.45kg IP20
6 Wheel house unit YK-D 0.85kg IP22
7 Audible and visual alarm unit FR-2Z 0.6kg IP44



The Telegraph System CL series is designed for sending and answering rotation rate and execution status of the main engine between wheelhouse and engine room. Adopted the microprocessor technology, the telegraph features with easy operation and cable-saving. It's a good choice for all kinds of vessels as main engine telegraph and spare engine telegraph.



Function:
1. Gear Position

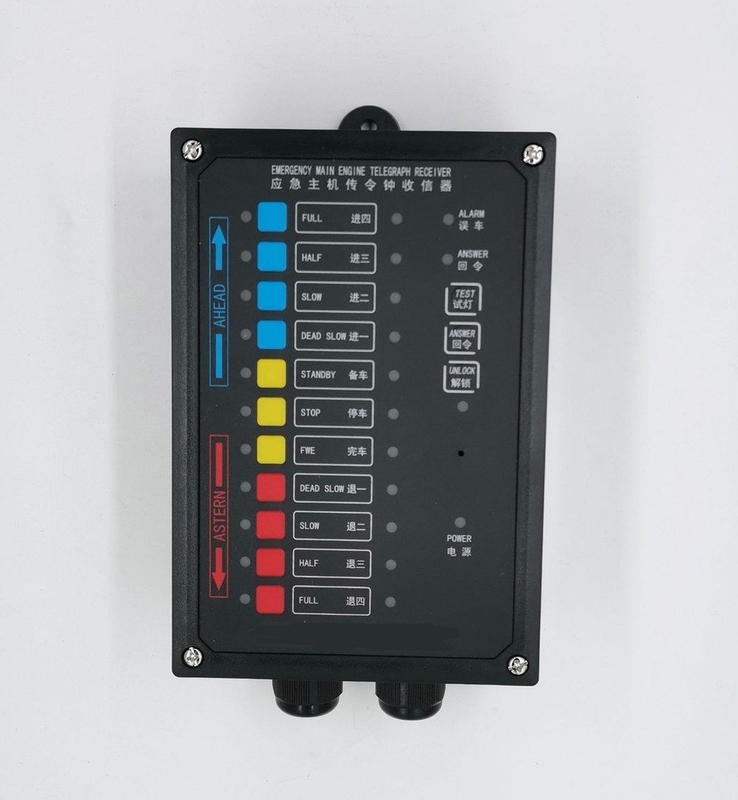

CL series telegraph has 11 gear positions:Full, Half, Slow, Dead slow, Standby, Stop, Fin, Dead slow, Slow, Half, Full. Once the transmitter didn't synchronize with the receiver, the light flashes along with the alarming sound. If synchronized, the lights are always on.
2. Power failure alarm
If the main power (AC220V) failed, it will automatically turn to DC24V along with audible and visual alarm and closing contact output. Once the main power gained, alarming sound disappeared.
3. Dimmer
Press the test key more than 2s to choose the suitable light.
4. Error alarm
The alarm LED of the transmitter,receiver and repeater will flash and the built-in buzzers will sound and output close contact when the engine operates in the wrong way. Error corrected, the alarm stopped.
5. Unlock key
Press unlock key first when make orders, operate within 5s otherwise unlock again.
Press K2 key to make transmitter or receiver stay unlock.
If no answers, indicator flashes with buzzer sounding. Mute key in transmitter can silent the buzzing.
If answer correctly, the indicator is on always without buzzing.



Generally speaking, the preparation time before the ship starts sailing is usually between half an hour and six hours. The preparation includes: power supply preparation; clock and car clock calibration; rudder calibration; warm-up; preparation of each power system; turning, rushing and test run. The purpose of the test drive is: to check whether the starting system, commutation device, fuel injection system, oil volume adjustment mechanism and governor work normally.
The pilot conveys this instruction to the cabin engine operator through the car clock. The ship's log and the engine log should make accurate records of this process, so that the relevant authorities can identify the facts and distinguish the responsibility when the ship occurs. Some countries stipulate that the time of giving the order to prepare the car is the time of sailing, so according to the Hague Rules and other provisions, the carrier should make the ship seaworthy at the time of giving the order to prepare the car at the latest.
