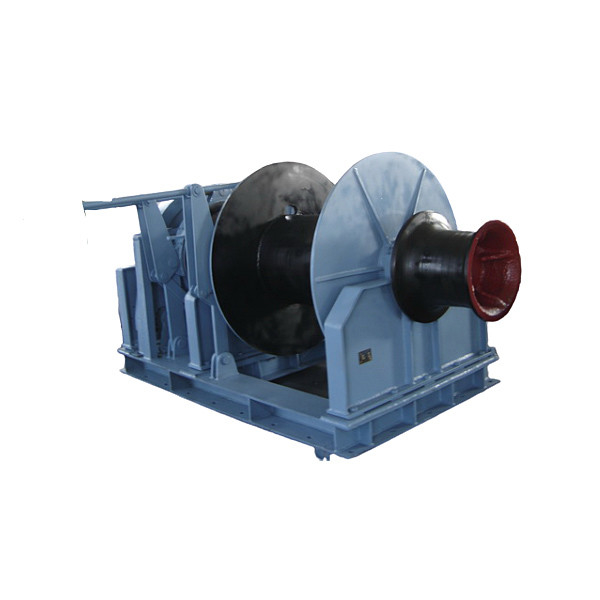

Speed 9m/Min Remote Control 78mm 70kW Electric Anchor Windlass
Product Details:
Place of Origin: | China |
Brand Name: | JV |
Certification: | CCS,LR,KR,IRS,BV |
Model Number: | JVL-11 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | $2000-20000/set |
Packaging Details: | Standard export pakcage |
Delivery Time: | 30-50 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000set/Month |
Detail Information |
|||
Drive: | Electric Or Hydraulic | Part: | Windlass |
---|---|---|---|
Application: | Ship,Boat,Maritime | Usage: | Lift Anchor And Anchor Chains |
Paint: | As Customers' Need | Brake: | Automatic |
Name: | Yacht Marine Hardware Vertical Electric Anchor Windlass 12v | Power Supply: | 12V/24V |
High Light: | 78mm electric anchor windlass,9m/Min electric anchor windlass,70kW hydraulic anchor windlass |
Product Description
78mm Boat Anchor Windlass Speed 9m/Min Electric Hydraulic Anchor Windlass Remote Control Ship Windlass
According to the customer's requirements, we can design all kinds of specifications and model hydraulic or electrical mooring winches and
combined windlass. The products can meet the rules and requirements of all classification society. They can be used for the bulk carriers, LNG vessels, etc.
Anchor chain diameter 30-130mm Cable pulling load 50- 1000KN
combined windlass. The products can meet the rules and requirements of all classification society. They can be used for the bulk carriers, LNG vessels, etc.
Anchor chain diameter 30-130mm Cable pulling load 50- 1000KN
Specifications:
Application: Deck Machinery
Capacity:15-300kN
Material: Carbon Steel
Keywords: Hydraulic Windlass
Chian Dia:14-132mm
Certificate: CCS ABS LR GL DNV NK BV KR RINA RS
MOQ:1 PC
Delivery time:65 days
Packing: Neutral Packing
Motor: Chinese Famous Brand
Capacity:15-300kN
Material: Carbon Steel
Keywords: Hydraulic Windlass
Chian Dia:14-132mm
Certificate: CCS ABS LR GL DNV NK BV KR RINA RS
MOQ:1 PC
Delivery time:65 days
Packing: Neutral Packing
Motor: Chinese Famous Brand
Marine Deck Machinery
Hydraulic / Electric Windlass
Hydraulic / Electric Mooring Winch
Hydraulic / Electric Windlass
Hydraulic / Electric Mooring Winch
Windlass: Chain Dia Φ19-132mm
Mooring Winch: 5-2000kN
Chain Wheel: Carbon steel casting
Certification: LRS, ABS, BV, KR, CCS, etc.
Gypsy Size: U2 / U3
Working speed: 10m/min
Welcome inquiry with your drawings
Supply customized service
More details please feel free to contact Debbie Liu : )
Main specification and parameter for hydraulic windlass
|
||||||
Specification of Hydraulic Windlass | Chain Dia(mm) | Working Load(kN) | Weigh Anchor Speed (m/min) | Towing Force(kN) | Towing Speed(m/min) | Motor Power(kW) |
19/20.5/22
|
19/20.5/22
|
15.3/17.9/20.6
|
≥9
|
15
|
≥12
|
7.5
|
24/26
|
24/26
|
24.5/28.7
|
≥9
|
20
|
≥12
|
11
|
28/30
|
28/30
|
33.3/38.3
|
≥9
|
25
|
≥12
|
15
|
32/34/36
|
32/34/36
|
43.5/49.1/551
|
≥9
|
30
|
≥12
|
22
|
38/40/42
|
38/40/42 |
61.4/68.0/75.0
|
≥9
|
50
|
≥12
|
30
|
44/46/48
|
44/46/48 |
82.3/89.9/97.9
|
≥9
|
60
|
≥12
|
37
|
50/52/54
|
50/52/54 |
106.3/114.9/123.9
|
≥9
|
60
|
≥15
|
37
|
56/58/60
|
56/58/60
|
133.3/143.0/153
|
≥9
|
80
|
≥15
|
40
|
62/64 | 62/64 | 163.4/174.1 |
≥9
|
100 |
≥15
|
47 |
66/68 | 66/68 | 185.1/196.5 |
≥9
|
120 |
≥15
|
55 |
70/73 | 70/73 | 208.3/226.5 |
≥9
|
147 |
≥15
|
60 |
76/78 | 76/78 | 245.5/258.6 |
≥9
|
147 |
≥15
|
70 |
81/84 | 81/84 | 311.7/335.2 |
≥9
|
167 |
≥15
|
90 |
87/90 | 87/90 | 359.5/384.8 |
≥9
|
200 |
≥15
|
102 |
92/95 | 92/95 | 402.2/428.7 |
≥9
|
200 |
≥15
|
115 |
97/102 | 97/102 | 446.9/494.2 |
≥9
|
250 |
≥15
|
130 |
