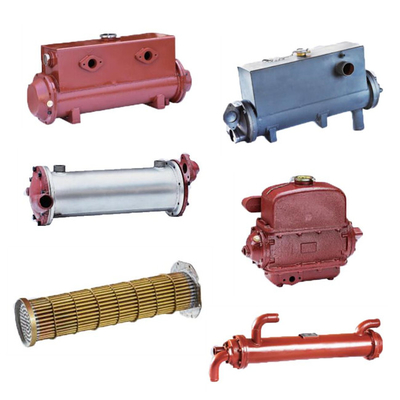

Shangchai Water Oil Cooler Core A762ZA 6135 G128 Marine Heat Exchanger

Shangchai Water Oil Cooler Core A762ZA 6135 G128 Marine Heat Exchanger

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: Marine Heat Exchanger Model: For Shangchai Water Oil Cooler Core A762ZA 6135 G128
Model 1: G128 Model 2: A762ZA
Model 3: 4/6135 Model 4: 6135-40/50
Keywords: Heat Exchanger Shell And Tube Patterson Kelley Use: Heating Or Cooling For Water Oil
High Light:

A762ZA Marine Heat Exchanger

,

6135 Marine Heat Exchanger

,

G128 Marine Heat Exchanger

Product Description

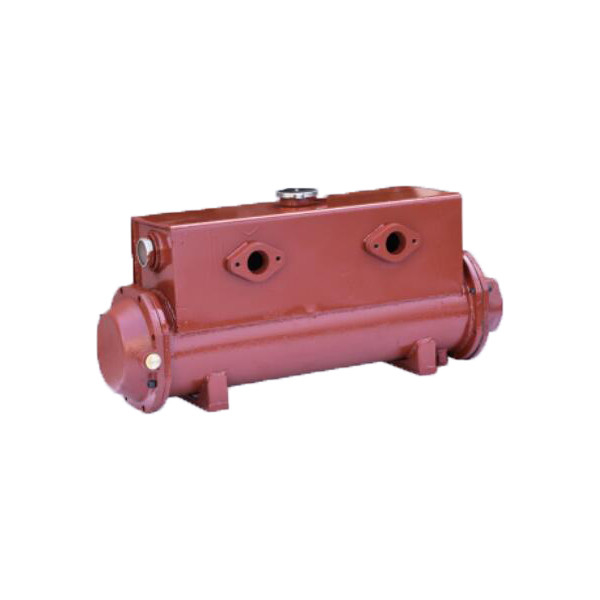

Shangchai Water Oil Cooler Core A762ZA 6135 G128 Marine Heat Exchanger

Marine Heat Exchanger For Shangchai Water Oil Cooler Core A762ZA 6135 G128





Specification



Model XBU 3S5 5S5 8S5 10S6 12S6 15S6 20S6 25S8 30S8
R22 refrigerant Qn* KW 8.7 14.5 23.3 29.1 34.9 43.6 58.1 72.7 87.2
Ti=12℃ To=7℃ 104Kcal/h 0.8 1.3 2.0 2.5 3.0 3.8 5.0 6.3 7.5
Tc=40℃ Te=2℃ Wn m³/h 1.5 2.5 4.0 5.0 6.0 7.5 10.0 12.6 15.1
FF=0.018 m²K/KW Wm m³/h 1.8 3.0 4.8 6.0 7.2 9.0 12.0 15.0 17.9
Dimensios A mm 610 710 950 950 1050 1110 1445 1450 1555
B mm 107 107 132 132 142 142 142 160 160
C mm 375 549 696 696 784 836 1167 1142 1247
D mm 400 400 400 400 500 700 800 800 800
E mm 103 170 250 250 217 217 297 300 352
F mm 110 110 110 110 110 110 110 160 160
G mm 80 80 80 80 80 80 80 120 120
H mm 45 45 45 45 45 45 45 55 55
I mm 30 30 30 30 30 30 30 40 40
J mm 134 134 160 160 160 160 190 190 190
K mm 140 140 165 165 165 165 165 219 219
L mm 60 80 80 80 80 80 80 100 100
Connections d1 mm 35 48 48 48 60 60 60 60 60
d2 mm 16 16 16 22 22 22 22 22 22
d3 mm 22 22 22 35 35 35 35 35 35



Shangchai Water Oil Cooler Core A762ZA 6135 G128 Marine Heat Exchanger 0



mixed type heat exchanger



Hybrid heat exchangers rely on direct contact between cold and hot fluids for heat transfer. This heat transfer method avoids the fouling resistance of the heat transfer partition and its two sides. As long as the contact between the fluids is good, it will be greater The heat transfer rate. Therefore, where fluids are allowed to mix with each other, hybrid heat exchangers can be used, such as gas washing and cooling, circulating water cooling, steam-water mixed heating, steam condensation, and so on. It is widely used in chemical and metallurgical enterprises, power engineering, air conditioning engineering and many other production sectors.



According to different uses, hybrid heat exchangers can be divided into the following different types:



Cooling tower (or cold water tower)



In this kind of equipment, natural ventilation or mechanical ventilation is used to cool the water whose temperature has been raised in production and then recycle it to improve the economic benefits of the system. For example, the circulating water of thermal power plants or nuclear power plants, the cooling water in the production of synthetic ammonia, etc., are recycled after cooling by the water cooling tower. This method has been widely used in actual projects.



Gas scrubbing tower (or scrubbing tower)



In industry, this equipment is used to scrub gas for various purposes, such as absorbing certain components in the gas mixture with liquid, removing dust from the gas, and increasing the gas. Wet or dry, etc. But its most widespread use is to cool gas, and the liquid used for cooling is mostly water. The spray room widely used in air conditioning projects can be considered a special form of it. The spray chamber can not only cool the air like a gas scrubber, but also heat it. However, it also has shortcomings such as high water quality requirements, large footprint, and high energy consumption of water pumps: Therefore, in general buildings, the spray room is not often used or used only as a humidification device. However, it is still widely used in textile factories and cigarette factories whose main purpose is to adjust humidity!



Jet-type heat exchanger



In this equipment, the fluid with higher pressure is ejected from the nozzle to form a high velocity. The low-pressure fluid is introduced into the mixing chamber and directly contacts the jet for heat transfer, and enters the diffusion together. The pipe is sent to the user after the outlet of the diffuser reaches the same pressure and temperature.



Hybrid condenser



This kind of equipment generally condenses steam by directly contacting water and steam.
