SHANGCHAI 4/6135 Water Cooled MB170 Marine Heat Exchanger

SHANGCHAI 4/6135 Water Cooled MB170 Marine Heat Exchanger

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CE
Model Number: JVL-42

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $40-60pcs
Packaging Details: Standard export package
Delivery Time: 15-25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000set/Month
Get Best Price Contact Now

Detail Information

Application: Marine Heat Exchanger Usage: Surface Polishing
Product Name: Extruded Fin Tube Machine Fin Material: Copper,aluminum
Condition: New Base Tube Material: Copper,carbon Steel
Color: Yellow/Light Blue/Red/sliver Etc Certification: CE ISO
High Light:

4/6135 Marine Heat Exchanger

,

MB170 Marine Heat Exchanger

,

MB170 marine water cooler

Product Description

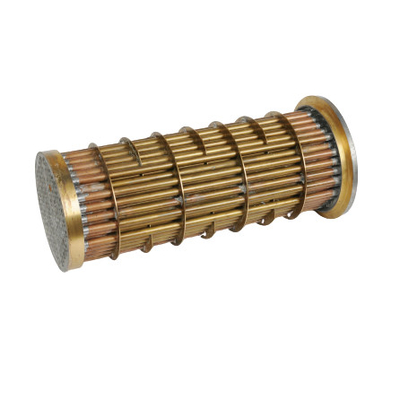

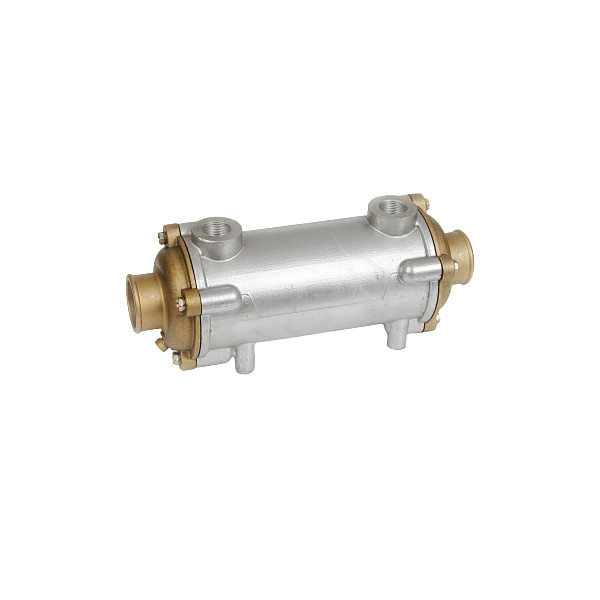

SHANGCHAI 4/6135 Water Cooled MB170 Marine Heat Exchanger

Marine Heat Exchanger SHANGCHAI 4/6135 Water-Cooled Marine MB170 Oil Cooler Heat Exchanger water heat exchanger





Internation Code Product Name
  40A oil cooler
  120B oil cooler
MA142 MA142 oil cooler
MB170 MB170 oil cooler
  135A oil cooler
D300 D300 oil cooler
EC120 EC120 oil cooler
MB242 MB242 oil cooler
HC400 HC400 oil cooler
HCD400 HCD400 oil cooler
HC600 HC600 oil cooler
J400 J400 oil cooler
HCT600A-1 HCT600A-1 oil cooler
HCT600A-1 HCT600A-1 oil cooler core
HC1000 HC1000 oil cooler
HC1200 HC1200 oil cooler
HC1250 HC1250 oil cooler
GWC36/39-45/49 GWC36/39-45/49 oil cooler
GWC30/32-32/35 GWC30/32-32/35 oil cooler
HC1000 HC1000 oil cooler core
AH300 AH300 water cooler
CH300 CH300 water cooler
CH400 CH400 water cooler
CH700 CH700 water cooler
CH900 CH900 water cooler
KH200 KH200 water cooler
PH400 PH400 water cooler
KH400 KH400 water cooler
AH300 AH300 Water cooler





Features of marine cooler:


1. The oil cooler adopts a bare tube (with no rolled fins on the surface) heat transfer tube, which has a high heat transfer coefficient of the outer film of the tube and strong anti-pollution ability.


2. The cooling tube of the oil cooler adopts high-quality copper tubes and is processed into fin-shaped radiating fins. The product is small in size and large in heat exchange area.


3. The spiral guide plate of the oil cooler makes the cooled liquid flow continuously and uniformly in a spiral shape, which overcomes the cold and heat exchange efficiency generated by the baffle guide plate.


4. The oil cooler adopts an expanding tube seal, which overcomes the undesirable changes in the material after high temperature welding.



5. The oil cooler has good structural performance, stable sealing performance, high heat transfer efficiency, compact structure, and small footprint



SHANGCHAI 4/6135 Water Cooled MB170 Marine Heat Exchanger 0



Working principle:


Manual working process: After the water filter is connected to the piping system, the water enters the water filter from the lower water inlet. When the impurities in the water pass through the mesh core, the volume is larger than the mesh core hole, and the slits are trapped on the mesh core.



When the quantity is used, it will cause a certain pressure difference between the inlet and outlet. (The pressure difference of the filter screen is different with different diameters, generally 0.15Mpa), manually open the sewage valve, start the sewage, turn the handle, the direction of rotation can be positive or negative clockwise, rotate every 10 seconds-30 seconds, the handle points Each recess is fixed, and the water flow reverses the impurities and dirt attached to the inner wall surface of the mesh core. Turn off the drain valve until one turn, and the manual drain is completed.
