• Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light
  • Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light

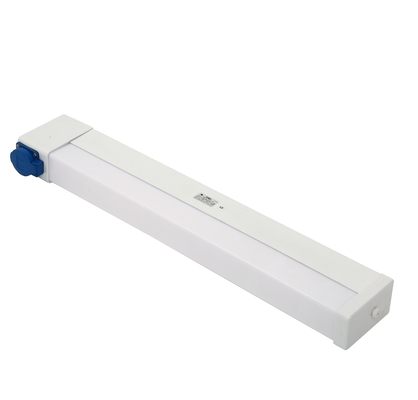

Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light

Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CCS,BV,LR,ABS
Model Number: JVL-131

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $40-100/set
Packaging Details: Standard export package
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000set/Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Pendant Light Certification: CCS
Warranty: 12 Months Application: Ship Or Platform
After-sales Service Provided: Online Support Color: Milky White
Protecttion Class: IP34 Voltage: 110V/220V
High Light:

3200kg marine hydraulic crane

,

4000kg marine hydraulic crane

,

5000kg marine hydraulic crane

Product Description

Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light

Marine Pendant Light HODU-20 With Socket Marine Fluorescent Mirror Light





The scope of application:
Applied to the illumination of wet places such as a sidewalk, bathroom, bathroom, restroom and etc.



Type Power Voltage Lamp holder Cable outside diameter Protection class Weight Remark
HODU-8A 1×8w 110V/60Hz
220V/50Hz
220V/60Hz
5 10-p14 IP34 1.5kg
HODU-8 1.8kg With socket
HODU-15A 1×15w   1.63kg
HODU-15 2.65kg With socket
HODU-20A 1×20w 1.75kg
HODU-20 2.9kg With socket



Products characteristic:
1. The shell adopts good quality aluminum, lampshade adopts PMMA;
2. The lamp body has a compact structure and delicacy appearance;
3. Spin-type lamp holder, this lamp can be equipped with special power supply socket for shaver according to the request of the customer



Production authentication:
Approval by CCS(China Classification Society), certificate number ZJ20P4028-3.


Daily self-inspection and maintenance advice:

1. Since all navigation lights are located outside the deck of the ship, they are susceptible to sea water, rainwater.

a. Regularly check whether the lamps are leaking

b. Make sure to apply a waterproof material, such as silicone, when turning on the lamp to replace the bulb

c. Visually inspect the shell for salt formation. If salt formation is found, it means that seawater has infiltrated.

d. Regularly clean the glass of the luminaire for good lighting/signal

e. Check that the lamp holder in the fitting is severely corroded.



2. Since the navigation lights are located at the highest point of the ship, they are always subject to vibration when the main engine is running. This is another cause of bulb failure.

a. Make sure to use vibration-damping materials such as rubber gasket materials as much as possible.

b. When operating the navigation light, check for loose nuts, bolts and brackets. Tighten and secure them as necessary.

d. The structure that confines the installation of lamps.



3. Lamp life is often reduced due to constant sunlight exposure, especially when made of plastic. Therefore, it is best to install light fixtures made of weatherproof brass.



4. Line maintenance

Navigation light wires fixed to the mast are often tangled or loose due to weather exposure. Please check the wires for loose connections and secure the wires with cable leads. Check the condition of these wires regularly.



Chongqing Juvi marine machinery company is an integrated marine technology company that presently specializes in product design, production, and sales. Juvi company is administered by the marine equipment production systems. Every factory that our partnership has passed these,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL, and other related systems authentication.
More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry.
