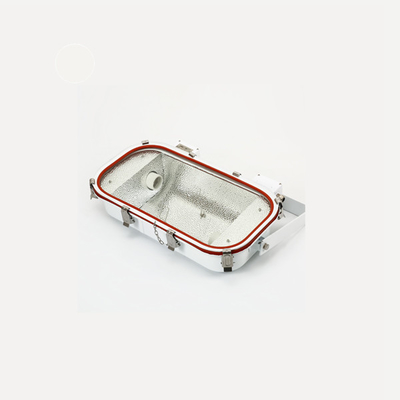

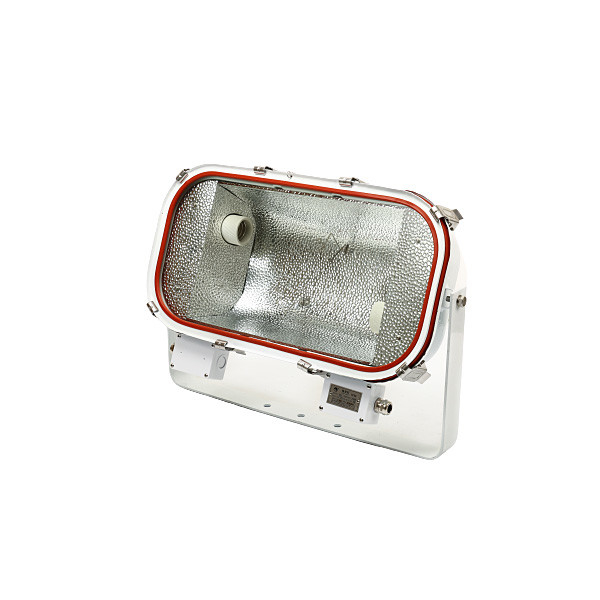

TG19 Flood Light Code 791823 Stainless Steel Commercial Marine Searchlights

TG19 Flood Light Code 791823 Stainless Steel Commercial Marine Searchlights

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS
Model Number: JVL-27

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $300-310pcs
Packaging Details: Standard export package
Delivery Time: 10-15 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/Month
Get Best Price Contact Now

Detail Information

Product Name: TG19 Flood Light Material: SS
Lamp Holder: E40 Power: 250W/400W
Code: 791823 Protection Class: IP56
Weight: 11.7kg Voltage: 220V/50Hz
High Light:

TG19 Commercial Marine Searchlights

,

791823 Commercial Marine Searchlights

,

TG19 Marine Spot Lights

Product Description

TG19 Flood Light Code 791823 Stainless Steel Commercial Marine Searchlights

Marine Search Light TG19 Flood Light Code 791823Stainless Steel Outdoor Light IP56 Ship Spot Light





The scope of application:


Fit for projecting illumination in outdoor place such as ship, dock port, store place and stadium.


Products characteristic:


1. Made of good stainless steel, the lampshade is made of toughened glass, and high-purity aluminum reflector, it has a good reflecting effect.
2. Has compact structure and beauty appearance, small volume, Has the fine seal function and anticorrosive performance, adjust upside 90°, down 45*angle.



Production authentication:


1. Approval by CCS(China Classification Society), certificate number 00515Q20619R0M.
2. Conform to international IEC Norm and National standard GB7000.7-2005.
3. Conform to.





Type
Protection class
Voltage
Power
Lamp
Weight
Flood light
IP56
220V/50Hz
2x250W
E40
11.7kg



Navigation light:



When an aircraft or ship is sailing at night, it is a signal light used to indicate its own position and direction of movement to facilitate mutual avoidance and identification. General regulations: The left wing tip of the aircraft is equipped with a red light, the right wing tip is equipped with a green light, and the tail end is equipped with white light; A red light is installed on the port side of the ship, a green light is installed on the starboard side, and white light is installed on the mast and stern; a sidelight is installed on the non-motorized ships; only white light is installed on the wooden sailboat



Inspection and maintenance requirements:


1. After the navigation lights are disassembled and maintained, they should be reinstalled as they are. The responsible crew member should pay attention to checking the installation position and angle of the navigation light.
2. New navigation lights should hold a marine product certificate issued by the classification society. The crew should pay attention to check the technical parameters of the lamps: such as the type of navigation light, the angle of light, the distance of visibility, etc.
3. Regularly inspect and test navigation lights, including the utility test of the main power source and emergency power source of the navigation lights, and the alarm test of a power failure and bulb failure.
4. Check the sidelight lightbox, repair the bad conditions found in time, and pay attention to regular matt black paint (Matt Black Paint).
5. According to the visibility requirements, replace the navigation light bulb with suitable luminous intensity.



Main products:


1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products: according to customers' requests.
