JV120C Ratio 3:1 Speed 2500RPM Thrust 25kn Marine Diesel Engine Gearbox

JV120C Ratio 3:1 Speed 2500RPM Thrust 25kn Marine Diesel Engine Gearbox

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: ABS,BV,CCS,DNV,GL,LR,NK,etc.
Model Number: JV120C 120B

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Wooden Box, Customized
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine Diesel Engine 1000~2500 RPM Gearbox Marine Gearboxs Ratio 3: 1 For Boat Ship MOQ: 1PC
Application: Marine Thrust: 25kn
Manufacturing Method: Cast Gear Toothed Portion Shape: Spur Gear
Engine Speed: 1000~2500RPM Manipulate Way: Semi-Automatic Manipulation
High Light:

2500RPM Diesel Engine Gearbox

,

25kn diesel engine gearbox

,

JV120C diesel engine gearbox

Product Description

JV120C Ratio 3:1 Speed 2500RPM Thrust 25kn Marine Diesel Engine Gearbox

Marine Diesel Engine 1000~2500 RPM Gearbox Marine Gearboxs Ratio 3: 1 For Boat Ship



SPECIFICATIONS Of Marine Gearbox



Engine speed: 1000~2500 RPM

120c Ratio 1.48 1.94 2.45 2.96 3.35
Ratio(hp/rpm) 0.136 0.122 0.109



L×W×H: 432×440×650 mm
Net eight: 225 kg
Bell housing: SAE1, 2, 3
Flange: SAE11.5, 14
Options/Comments: Mechanical or electrical remote control
Centre distance: 180 mm
Recommend engine: NT-855-M240;CAT3208TA, etc
Note: The“Rate”is based on toothed rubber blocks coupling, if use high-flexible coupling,“Rate”will rise 8%
Rated propeller thrust: 25KN

Engine speed: 1000~2000 RPM

16A Ratio 2.07 2.48 2.95 3.35 3.83
rate(hp/rpm) 0.016

L×W×H: 422×325×563 mm
Net eight: 84 kg
Options/Comments: Mechanical-joint clutch
Bell Housing: No
Centre distance: 135 mm
Recommend engine: MWM D226-2; HATZ 3M31, etc
Note: The“Rate”is based on rubber wheel coupling.
Rated propeller thrust: 3.5KN


Marine Gearbox Series



We supply marine gearbox covers 10-10000hp for single/double engine input.

It is also available for us to design solutions for propulsion system.
All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc., Certificated of Quality System ISO9001:2000



Medium And Heavy Duty Gearboxes



Power range: 10kW~3000kW

Ratio:1.5~20:1

Vessel type: transportation, fishing, work boats and etc.



Light & High-speed Marine Gearboxes



HCQ/HCA/HCM/HCV series light high-speed marine gearboxes are designed of power ranging 20kW~2300kW, ratio ranging 1.5~3.5:1.

HCQ is with Cast iron housing , H C M with aluminum housing and H C A & HCV with down angle structure. These products enjoy high market share, are widely used on various yacht, traffic boat, passenger boat. Product design and manufacturing capability are international leading and international advanced level.







Guide To Model Selection



1. Perform the duties of forward & reverse , engaging & disengaging, reduction of speed as well as bearing the propeller thrust, marine gearbox can be coupled with engine to form the complete power unit.

2. “RATE”in this manual indicates the proportion of the engine continuous power to the rated speed (hp/rpm).When selecting model, the actual “RATE”should be smaller than the data listed.

3. Gearbox can not be connected with engine rigidly. It must be installed on the common base with engine. If the engine mounted on the elastic base and the gearbox on the rigid base, the highly flexible coupling should be used, please contact our technology. department for details.

4. The “Net Weight”listed is approximate value.

5. “ENGINE”in this manual is only for reference.

6. Gearboxes may be improved or revised partially from time to time, technical data should be based on technical agreement for each order.

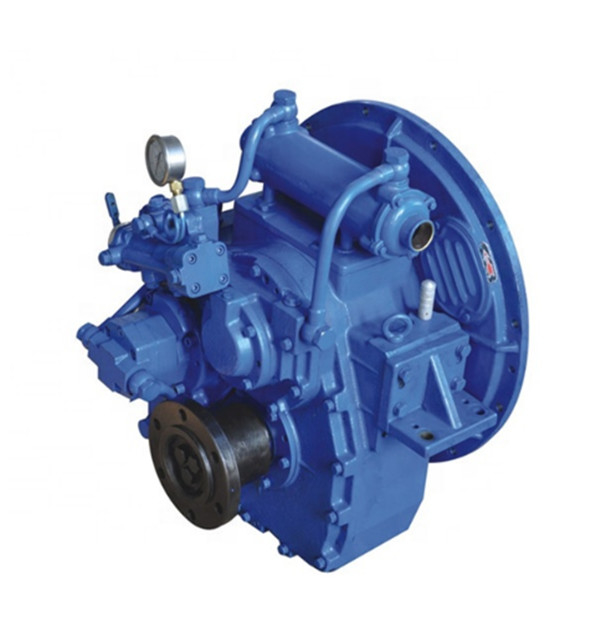

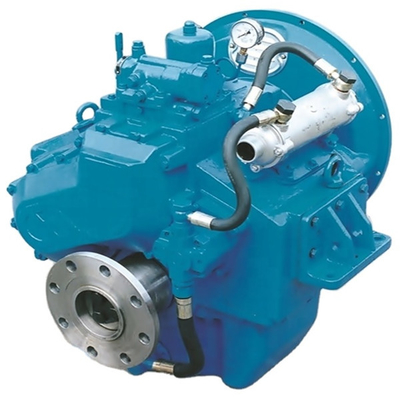

JV120C Ratio 3:1 Speed 2500RPM Thrust 25kn Marine Diesel Engine Gearbox 0JV120C Ratio 3:1 Speed 2500RPM Thrust 25kn Marine Diesel Engine Gearbox 1
