KTA19-M600 2500RPM Max 805HP Cummins 300 Advance Marine Gearbox
Product Details:
| Place of Origin: | Chongqing of China |
| Brand Name: | JUVI |
| Model Number: | 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Delivery Time: | in stock |
| Payment Terms: | Western Union, MoneyGram, D/P, D/A, L/C, T/T |
|
Detail Information |
|||
| Name: | Marine Gearbox ADVANCE | Application: | Ship Marine Boat Vessel Yacht |
|---|---|---|---|
| Recommend Engine 1: | For Cummins Marine Diesel Engine KTA19-M600 | Recommend Engine 2: | For TBD234V12 |
| Rated Propeller Thrust: | 50KN | Centre Distance: | 264 Mm |
| Bell Housing: | SAE 0, 1 | Flange: | SAE 14,16,18 |
| High Light: | KTA19-M600 advance marine gearbox,2500RPM advance marine gearbox,805HP advance marine gearbox |
||
Product Description

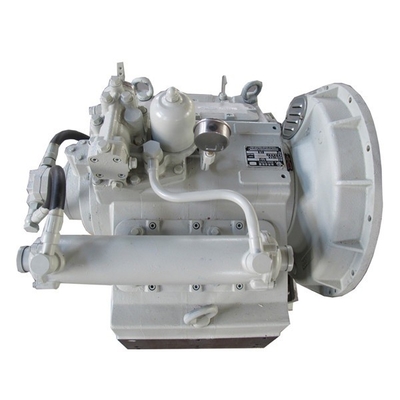

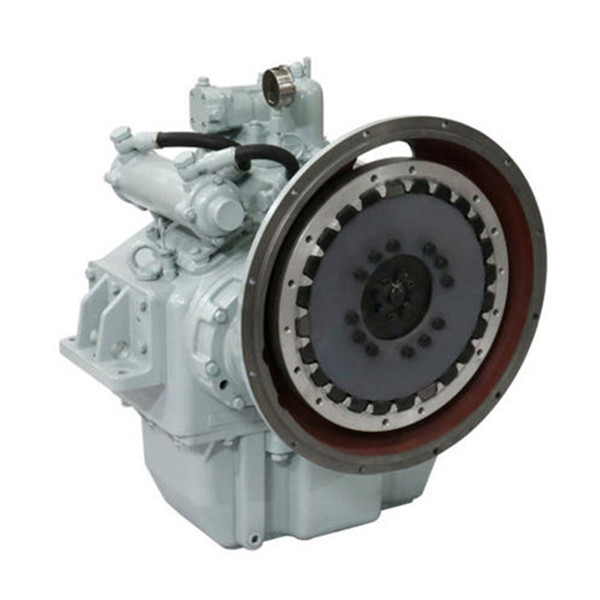

300 Advance Gearbox 2500RPM 805HP For Cummins Marine Diesel Engine KTA19-M600
Specification
| Ratio | 1.54 | 1.75 | 1.87 | 2.04 | 2.54 | 3 | 3.35 | 3.53 | 4.1 | 4.47 | 4.61 | 4.94 | 5.44 |
| Rate(hp/rpm) | 0.35 | 0.33 | 0.3 | 0.25 | 0.2 | 0.17 | |||||||
| Max. 805HP —2300RPM | |
| Engine speed | 750~2500 RPM |
| L×W×H | 786*930*864 mm |
| Net weight | 740kg |
| Bell housing | SAE 0, 1 |
| Flange | SAE 14,16,18 |
| Options/Comments | PTO device available (except ratio 5.44:1); Mechanical or electrical remote control |
| Centre distance | 264 mm |
| Recommend engine | Cummins KTA19-M600; TBD234V12 … |
| Note | The“Rate” is based on toothed rubber blocks coupling, if use high-flexible coupling,“Rate”will rise 8% |
| Rated propeller thrust | 50KN |
Gearbox
Gearboxes have a wide range of applications, such as in wind turbines. Gearboxes are an important mechanical component that is widely used in wind turbines. Its main function is to transfer the power generated by the wind wheel under the action of wind to the generator and make it get the corresponding speed.
Generally, the rotation speed of the wind wheel is very low, far less than the rotation speed required by the generator to generate electricity. It must be realized by the speed increasing effect of the gear pair of the gear box, so the gear box is also called the speed increasing box.
Lubricating of Gearbox
The lubrication system of the gearbox is of great significance to the normal operation of the gearbox. Large-scale wind power gearboxes must be equipped with a reliable forced lubrication system to spray lubrication on gear meshing areas and bearings. Insufficient lubrication accounts for more than half of the causes of gearbox failure. Lubricating oil temperature is related to component fatigue and the life of the entire system. Generally speaking, the maximum oil temperature of the gearbox during normal operation should not exceed 80℃, and the temperature difference between different bearings should not exceed 15℃. When the oil temperature is higher than 65°C, the cooling system starts to work; when the oil temperature is lower than 10°C, the lubricating oil should be heated to a predetermined temperature before starting up.
In summer, due to wind turbines being in full power for a long time, coupled with high-altitude direct sunlight, the operating temperature of the oil rises above the set value; and when used in winter in the severe cold region of the northeast, the lowest temperature often reaches below -30°C. Lubricate Lubricating oil flowing in the pipeline is not smooth, gears and bearings are not sufficiently lubricated, resulting in high temperature shutdown of the gear box, tooth surface and bearing wear, and low temperature will also increase the viscosity of the gear box oil, heavy load when the oil pump starts, and overload of the oil pump motor .
Gearbox lubricating oil has an optimal temperature range for working. It is recommended to design a lubricating oil thermal management system on the gearbox lubrication system: when the temperature exceeds a certain value, the cooling system starts to work, and when the temperature falls below a certain value, the heating system starts to work , Always control the temperature within the optimal range. In addition, improving the quality of lubricating oil is also an important aspect of the lubrication system. Lubricant products must have excellent low-temperature fluidity and high-temperature stability, and research on high-performance lubricating oil must be strengthened.
