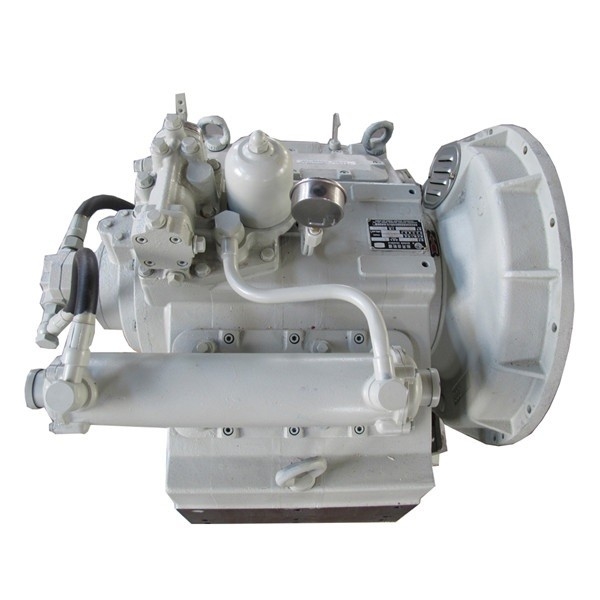

• JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox

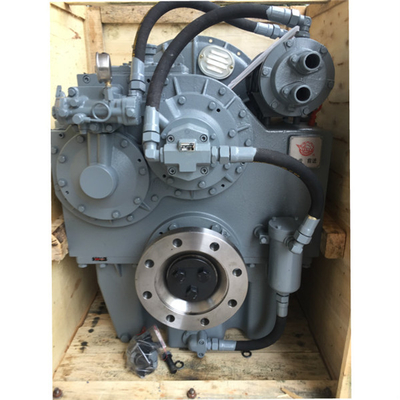

  • JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox

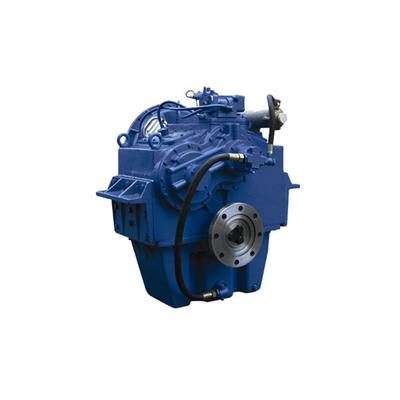

  • JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox
JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox

JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: ABS,BV,CCS,DNV,GL,LR,NK,etc.
Model Number: JVMA135A

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Wooden Box, Customized
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: 1000-2500 RPM Boat Marine Gearbox Small And Middle And Heavy Duty Gearbox For Ship Application: Food Industry, Match With Engine And Propeller, Packing Machine, Boat Transmission
Ratio: 7.5-100, 10, 2.25 3.05 3.50, 15, 10.7 Manufacturing Method: Cast Gear
Rated Power: 0.06-15KW, 1.5~6229KW(customized), 25/30KW, 0.12kw, 300 Engine Speed: 1000-2500 RPM
Output Torque: 375~519520Nm(customized), 880Nm, 25650 - 194050Nm, 800~100000N.m, 333-1596N.m Gearing Arrangement: Helical, Worm, Other, Cycloidal, Hypoid
High Light:

29.4KN Marine Engine Gearbox

,

1000RPM Marine Engine Gearbox

,

JVMA135A Marine Engine Gearbox

Product Description

JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox

1000-2500 RPM Boat Marine Gearbox Small And Middle And Heavy Duty Gearbox For Ship



SPECIFICATIONS Of Marine Gearbox



Engine speed: 1000-2500 RPM

120c Ratio 2.03 2.59 3.04 3.62 4.11 4.65 5.06 5.47 5.81
Ratio(hp/rpm) 0.0134 0.125 0.118 0.103 0.094



L×W×H: 578 744 830 mm
Net weight: 470kg
Bell housing: SAE 1
Flange: SAE 14
Options/Comments: Mechanical or electrical remote control
Centre distance: 225 mm
Recommend engine: NT-855-M240; CAT 3406, etc
Note: The“Rate”is based on toothed rubber blocks coupling, if use high-flexible coupling,“Rate”will rise 8%
Rated propeller thrust: 29.4KN

Marine Gearbo 135A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.

Applications

Marine Gearbo 135A is suitable for small fishing, transport, tug, traffic and passenger boats.


Marine Gearbox Series



We supply marine gearbox covers 10-10000hp for single/double engine input.

It is also available for us to design solutions for propulsion system.
All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc., Certificated of Quality System ISO9001:2000



Medium And Heavy Duty Gearboxes



Power range: 10kW~3000kW

Ratio:1.5~20:1

Vessel type: transportation, fishing, work boats and etc.



Light & High-speed Marine Gearboxes



HCQ/HCA/HCM/HCV series light high-speed marine gearboxes are designed of power ranging 20kW~2300kW, ratio ranging 1.5~3.5:1.

HCQ is with Cast iron housing , H C M with aluminum housing and H C A & HCV with down angle structure. These products enjoy high market share, are widely used on various yacht, traffic boat, passenger boat. Product design and manufacturing capability are international leading and international advanced level.



Main features



1. Possess functions of clutch & de-clutching, speed reduction and bearing propeller thrust;

2. Compact in structure, small in volume and light in weight;

3. High rated input speed and high manufacturing precision;

4. Good complete-machine performance, low noise and small vibration;

5. Match high-speed diesel engine, mainly used on medium-to-small high-speed boats;

6. Apply mechanical and automatic control , realizing local emergent control and remote control of the gearbox.

JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox 0JVMA135A 1000RPM Rated Propeller Thrust 29.4KN Marine Engine Gearbox 1



Guide To Model Selection



1. Perform the duties of forward & reverse , engaging & disengaging, reduction of speed as well as bearing the propeller thrust, marine gearbox can be coupled with engine to form the complete power unit.

2. “RATE”in this manual indicates the proportion of the engine continuous power to the rated speed (hp/rpm).When selecting model, the actual “RATE”should be smaller than the data listed.

3. Gearbox can not be connected with engine rigidly. It must be installed on the common base with engine. If the engine mounted on the elastic base and the gearbox on the rigid base, the highly flexible coupling should be used, please contact our technology. department for details.

4. The “Net Weight”listed is approximate value.

5. “ENGINE”in this manual is only for reference.

6. Gearboxes may be improved or revised partially from time to time, technical data should be based on technical agreement for each order.



Our Main Products:



1. Marine Electric Equipment: Marine Lights, Electric Connector. (Navigation Light, Searchlight, Flood Light, Ceiling Light, Portable Light, Explosion-proof Light, Plug/Socket/Switch/Junction Box, etc.)

2. Marine Mooring Equipment: Anchor, Chain, Rope, Wire Rope, Bollard, Fender, Bouys, etc.

3. Marine Deck Equipment: Winch, Windlass, Capstan, Crane, etc.

4. Marine Instrument: AIS, Anemometer, etc.



We trust you will like our offer, We have very nice promotion right now. We still have more models. Would you like to have a look and ask a quote from us?
