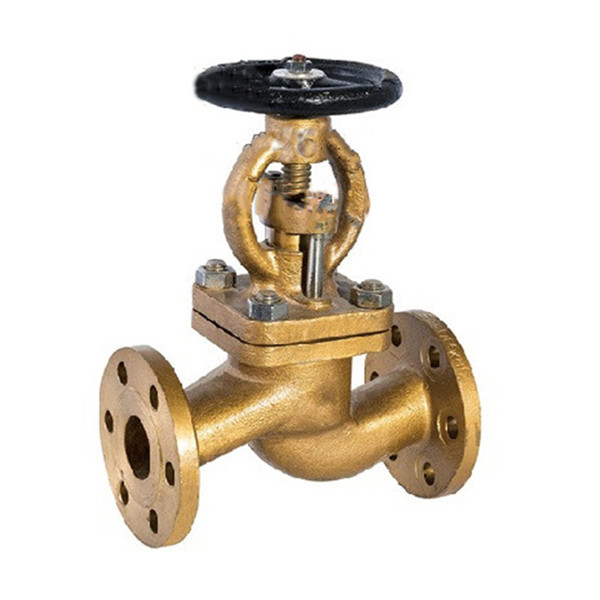

SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine

SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: ABS,BV,CCS,DNV,GL,LR,NK,etc.
Model Number: 39872

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Marine JIS Japanese Standard Stainless Steel 316L 5K 10K 16K Stop Check Valve Cut-Off Valve Power: Manual
Pressure Range: Normal Pressure Media: Sea Water, Water
Structure: Stop Check Valve, Globe Valve, Cut-off Valve MOQ: 1PC
Type: 1 Way Material: Stainless Steel, Ductile Iron, Carbon Steel, Cast Iron, Cast Steel
Application: General, Oil, Gas, Water, Irrigation Norminal Dia.: 15-50mm
High Light:

SS316L Marine Cut Off Valve

,

Marine 16K Stop Check Valve

,

Marine 10K Stop Check Valve

Product Description

SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine

Marine JIS Japanese Standard Stainless Steel 316L 5K 10K 16K Stop Check Valve Cut-Off Valve


Specification of Stop Check Valve



Our Valve Types Material Standard Media Pressure Media Temperature Power
Butterfly Valve Bronze
Brass
Stainless steel
Cast Steel
DIN Germany
JIS Japanese
GB Chinese
Sea water
Water
Oil
Low Pressure
High Pressure
Medium Pressure
Normal pressure
High Temperature
Low Temperature
Medium Temperature
Normal Temperature
Manual
Hydraulic
Pneumatic
Solenoid
Electric
Check Valve
Elf-Closing Valve
Globe
Stop Valves
Check Valve
Stop Check Valve
Pressure Reducing Valve
Safety Valve
Quick Closing Valve
Gate Valve
Steam Valve
Storm Valve
Fire Hose Valve
Suction Sea
Ball Valve
Pressure Gauge
High Pressure Stop Valve
Sounding Self-Closing Valve
Boiler Relief Valve
Gate Valve
Needle Valves
Japanese Standard Plug Valve
Self-Closing Drain Valve
Japanese Standard Valve
American Standard Valve


Valves are classified according to their functions and uses:

(1) Cut-off type: such as gate valve, Globe/Stop/shutoff valve, plug valve, ball valve, butterfly valve, needle valve, diaphragm valve, etc. Shut-off valves are also called closed-circuit valves/stop valves. Mainly used to cut off and connect fluid media.
(2) Check valve: Check valve, also known as check valve or check valve. Check valve is an automatic valve. Mainly used to prevent backflow of fluid media.
(3) Safety category: such as safety valve, explosion-proof valve, emergency valve, etc. The function of the safety valve is to prevent the medium pressure in the pipeline or device from exceeding the specified value, so as to achieve the purpose of safety protection. Mainly used for safety protection to prevent damage to boilers, pressure vessels or pipelines.
(4) Regulators: such as regulating valves, throttle valves, pressure reducing valves and thermostatic valves. Mainly used to adjust the flow, pressure, temperature, etc. of fluid media.
(5) Diversion type: such as distribution valve, three-way valve, multi-way valve, trap valve, spool valve. Mainly used for distribution, separation and mixing of fluid media.
(6) Special purpose categories: such as pigging valve, vent valve, drain valve, exhaust valve, filter, etc.
Gate valve is one of the most common opening and closing valves, which use gates (that is, opening and closing parts, in the gate opening and closing parts are called gates or gates, and the gate seat is called the gate seat) to switch on (fully open) or Cut off (fully closed) the medium in the pipeline. It is not allowed to be used for throttling. Avoid opening the gate slightly during use. The erosion of the high-speed flowing medium will accelerate the damage of the sealing surface. The Shuangde gate acts as a lifting movement on the side perpendicular to the center line of the gate seat channel, and cuts off the medium in the pipeline like a gate, so it is called a gate valve.





Advantage of Stop Valve


1. Simple structure and convenient maintenance.

2. Small working stroke and short opening and closing time.

3. Good sealing performance, small friction between the sealing surfaces, and long life.

4. The structure of the globe valve body includes straight-through, direct-flow and right-angle. The straight-through type is the most common structure, but its fluid resistance is the greatest. Direct flow fluid has low resistance and is mostly used for fluids containing solid particles or high viscosity. Right-angle valve bodies are mostly forged, which is suitable for stop valves with smaller passages and higher pressure.

5. In the process of opening and closing, the friction of the sealing surface is smaller than that of the gate valve, and it is wear-resistant.

6. There is usually only one sealing surface, and the manufacturing process is good, which is convenient for maintenance.



SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine 0SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine 1SS316L 5K 10K 16K Stop Check Valve Cut Off Valve for Marine 2
