AIS Radar Marine GPS Navigation Systems 24VDC Marine Gps Navigator

AIS Radar Marine GPS Navigation Systems 24VDC Marine Gps Navigator

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CCS
Model Number: JVL-127

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: FT-8800 MOQ: 1PC
Application: Marine Boat Ship Vessel Type: Class A
Screen Size: 95.04(W)x53.85(H) Mm Display Mode: Plotter, AIS Radar, AIS Lists, Highway, Steering,
GPS Alarm: Arrival, Anchor Watch, XTE, Speed, SBAS, Time, Power Supply: 12 - 24VDC: 0.24 - 0.12A
High Light:

AIS Radar Marine GPS Navigation Systems

,

24VDC Marine Gps Navigator

,

IP56 Marine Gps Navigator

Product Description

AIS Radar Marine GPS Navigation Systems 24VDC Marine Gps Navigator

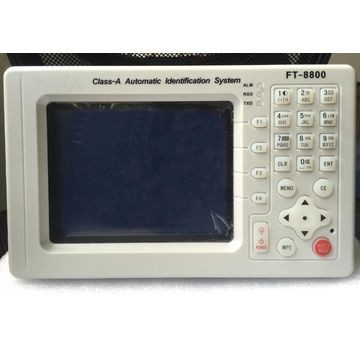

FT-8800 CLASS A  AIS Transponder Marine GPS Navigation Systems Marine Gps Navigator



Detail

(1), Main performance
1, Characteristics
FT-8800 is a universal ship bone AIS equipment, navigation and ship data information exchange with
other ships and shore stations
This device complies with A.694 (17), IEC62287-1 2006-03 standard requirements.
FT-8800 consists of transceiver unit, display control unit, VHF antenna and GPS antenna and related accessories
Transceiver unit consists of 1 VHF transmitter, 2 TDMA receiver,
A channel 70 DSC receiver, an interface, communication processor, built-in GPS receiver.
2, Main information
AIS provided automatic exchange of navigational information with other ship or shore station to ensure
the safety of navigation .



SPECIFICATION




AlS TRANSPONDER Waterproof: Display unit: IP56
MAIN SPEC.   Antenna unit: IPX6
Standards:
  IEC 62287-1
  IEC 62287-2 Power Supply
  ITU 1371-3 Power Supply: 12 - 24 VDC: 0.24 - 0.12A
  IEC61993-2
  IEC61162-1 IEC60945 CH87-161.975 MHz PHYSICAL
Frequency: Size:192mm(W)xll0mm(H)x66mm(D)
  CH88-162.025 MHz Weight: 0.80 kg; 1.76 lb
Channel bandwidth : 25 Khz
Frequency Stability : W2.5 PPM Equipment list
Modulation : AISGMSK Standard: 1. Display unit HP-528A
Data Rate : 38400 bps 2. Antenna unit HA-017 with cable 10m
    3. Power cable, 2m
AIS TRANSMITTER 4. Standard spare parts and installation material
Power output: 2W± 1.5 Bm 5. Operator manual
Power Delay: Rise delay ^313 US Option (HP-528A): 1.Antenna cable for AIS antenna (10m) 2.AIS Antenna (1.2/1.6m)
  Fall delay ^313 US
Stray Power: W -36 dBm
AIS RECEIVER
Sensitivity: W -107dBm
Max Usable Sensitivity: PRT≤ 20%at-107dBm
Channel Rejection Ratio: ≥10 dB
Adjacent Channel Selectivity: ≥70 dB
Intermodulation Selectivity: ≥65 dB
Blocking: $85dB

GPS/SBAS
Receiver Type : GPS: 50 Channels, C/A code
SBAS: WAAS, EGNOS, MSAS, GAGAN
Receive Frequency: LI (1575.42 MHz)
Time to First Fix: Cold start: 32s
Hot Start: < Is
Tracking Velocity: 500m/s Max
Altitude: 50,000 m Max
Dynamics: W4g
Geodetic Systems: WGS-84 (and others)
Horizontal position: GPS: 2.5 m
SBAS: 2.0 m
Velocity: O.lm/s
Heading: 0.5 degrees



2,AIS transmitter section
Output power : 2W or 12.5W changeable
Modulation spectrum : <-25dBw / <-60dBw
Modulation accuracy : <3400Hz (bit 0,1)
2400Hz±480Hz(bit 2,3)
2400Hz ± 240Hz (bit 4-199 or 00001111 bit format)
1740Hz ± 175Hz (0101-bit format)
Power comparison time : transmit delay: 2083us (normal transmit a period of time)
Increase the time: ≤ 313us
Decrease the time: ≤ 313us
Continuous transmit time :≤323333us
Spurious emissions :-36dBm (9KHz-1GHz)
-30dBm(1GHz-4GHz)
3,AIS receiver section
Reference sensitivity :-107dBm (package error rate ≤ 20%)
High input tolerance :-77dBm (package error rate ≤ 2%)
Co-channel interference : 10dB ( package error rate ≤ 20%)
Adjacent channel selectivity : 70dB (package error rate ≤ 20%)
Spurious response to interference: 70dB (package error rate ≤ 20%)
Intermodulation response interference : 65dB (package error rate ≤ 20%)
