12VDC Marine GPS Navigation Systems Class A Yacht Navigation Systems

12VDC Marine GPS Navigation Systems Class A Yacht Navigation Systems

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CCS
Model Number: JVL-128

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: HX-2600 MOQ: 1PC
Application: Marine Boat Ship Vessel Type: Class A
Screen Size: 95.04(W)x53.85(H) Mm Display Mode: Plotter, AIS Radar, AIS Lists, Highway, Steering,
GPS Alarm: Arrival, Anchor Watch, XTE, Speed, SBAS, Time, Power Supply: 12 - 24VDC: 0.24 - 0.12A
High Light:

12VDC Marine GPS Navigation Systems

,

CCS Marine GPS Navigation Systems

,

IPX6 Antenna Yacht Navigation Systems

Product Description

12VDC Marine GPS Navigation Systems Class A Yacht Navigation Systems

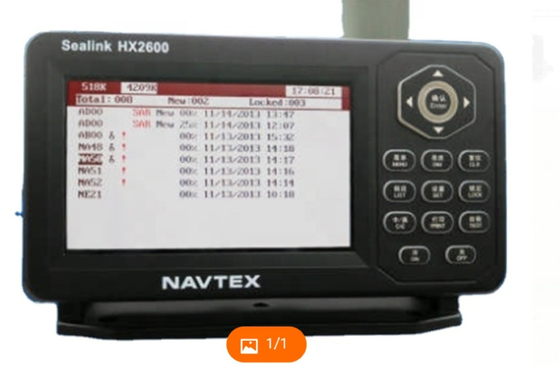

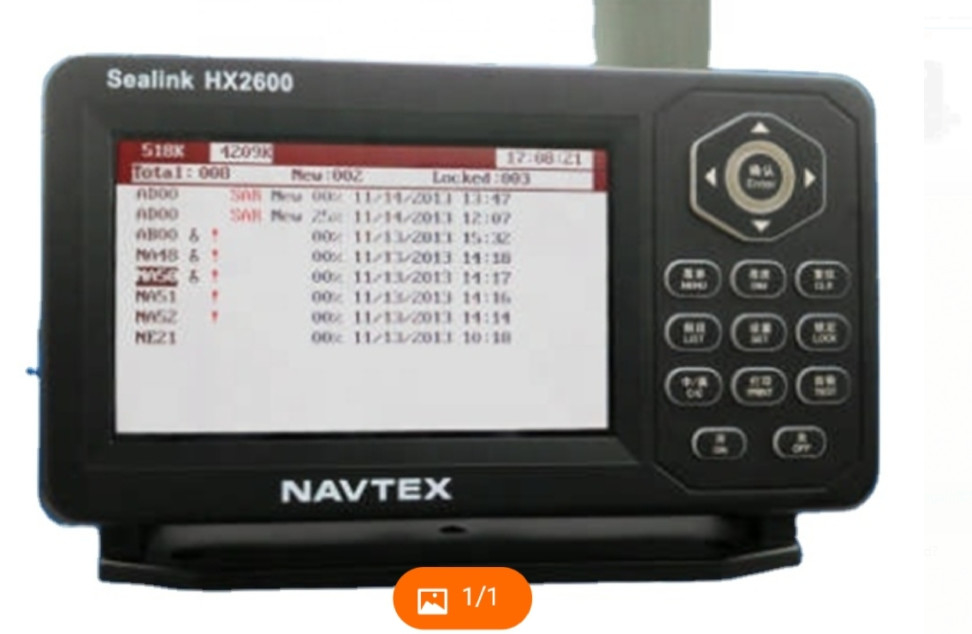

HX-2600 NAVTEX System Marine GPS Navigation Systems marine gps navigator used for ship



1.
Installation Notes
1.1 Instrument flight to avoid direct sunlight police and high temperature, to avoid
strong vibration, not near the magnetic compass.
1.2 The products use 10 to 36 volt DC power supply, power cord red is positive power,
black for the power Source negative.
1.3 Please do not open their own aircraft warning device, if you find problems as soon
as possible contact the seller.
The antenna installation considerations
Aviation security apparatus antenna should be installed in the highest position of
the vessel, or if there are objects from the antenna than the antenna Too close,
you are likely to affect the signal reception, causing aviation security instrument
accuracy. Therefore, to ensure that:
Products and antenna installation
2.1 as far away from metal objects.
2.2 Outside on the radar beam .
2.3 Distance maritime satellite antenna at least five meters.
2.4 and VHF / 'HF /' MF antenna at least 4 meters.
2.5 and at least three meters ring antenna.



SPECIFICATION




AlS TRANSPONDER Waterproof: Display unit: IP56
MAIN SPEC.   Antenna unit: IPX6
Standards:
  IEC 62287-1
  IEC 62287-2 Power Supply
  ITU 1371-3 Power Supply: 12 - 24 VDC: 0.24 - 0.12A
  IEC61993-2
  IEC61162-1 IEC60945 CH87-161.975 MHz PHYSICAL




Features
● ID Bl shore station through the choice of animal husbandry and do not
automatically reject the message information.
● through the ID of the message type of option B2 certain types of packets
will not display, print or Sent to the INS interface, but the A, B, D, L type,
except the message.
● a signal processor, LCD display, INS interfaces, antenna protection,
information storage, such as whether Self-test function to work properly.
● At least each line display can show 47 characters, at least 12 rows of
information display text.
● receive a clear display of characters "*" symbol.
● At least each receiver can stably store 200 average length of 500 characters
of information.
● 8000 can store the length of individual characters of information.
● Each receiver 200 can store information within the identification tag.
● to avoid the display or storage has been correctly received packets of
information.
● The received after 60-72 hours, information is automatically cleared from
memory. If the receiver
To more information than the storage capacity, the first of the information
is automatically cleared.
● When the error rate is more than 33%, the receiver does not store or display
the message information and information identification.
● The device's memory code information



12VDC Marine GPS Navigation Systems Class A Yacht Navigation Systems 0
