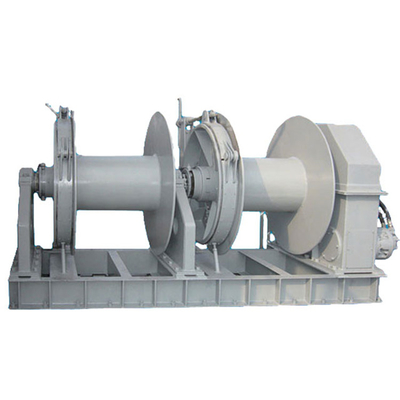

PP / Steel Wire Rope Rated Pull 125KN 150KN 250KN Electric Mooring Winch
|Place of Origin:||Chongqing of China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Delivery Time:||in stock|
|Payment Terms:||Western Union, MoneyGram, D/P, D/A, L/C, T/T|
|Name:||Electric Anchor Winch||Application:||Ship Marine Boat Vessel Yacht|
|Type 1:||Electric||Type 2:||Hydraulic|
|Type 3:||Diesel||Rope:||Pp / Steel Wire Rope|
|Warranty:||1 Year||Packing:||Wooden Packing|
125KN electric mooring winch,
150KN electric mooring winch,
250KN electric mooring winch
Marine Electric Winch Mooring Anchor Steel Wire PP Nylon Rope Tanker Bulker
|Rated pull||Rated speed||Drum capacity||Braking force||Motor power||Weight|
|(KN)||(m/min)||(mm x m)||(KN)||(KW)||(T)|
|20||12||15 x 200||60||11||2.5|
|30||12||16 x 200||90||15||3|
|50||12||22 x 220||150||22||3.5|
|80||12||28 x 220||240||37||4|
|100||12||30 x 220||300||45||5|
|125||12||32 x 220||375||55||5.5|
|150||12||36 x 220||450||75||6|
|200||10||39.5 x 350||600||75||9|
|250||10||43 x 450||750||90||12.5|
|320||8||47 x 550||960||90||18|
|400||8||52 x 600||1000||110||22|
|500||9||56 x 600||750||180||25|
Classification of winch
The winch includes construction hoist and coaxial hoist.
The main products are: JM electronically controlled slow-speed large-tonnage winch, JM electronically controlled slow-speed winch, JK electronically controlled high-speed winch, JKL hand-controlled fast-rolling winch, 2JKL hand-controlled double fast-rolling winch, electronic-controlled dual-use winch , JT speed-regulating winch, KDJ mini winch, etc., can only be used on the ground, and can be used on ships by modification. It is powered by a motor, through a flexible coupling, a three-stage enclosed gear reducer, a jaw coupling to drive the drum, and electromagnetic braking. The product has high versatility, compact structure, small size, light weight, heavy lifting, and convenient use and transfer. It is widely used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing, and can also be used as modern electronic control Supporting equipment for automatic operation line. JM series is a gear reducer drive hoist. It is suitable for civil construction and installation projects of construction and installation companies, mining areas and factories.
A device that drives the drum and winds the rope to complete the traction work by manpower or mechanical power.
Coaxial winch: (also called mini winch) The motor and the wire rope are on the same drive shaft, which is light and compact, saving space (its tonnage includes 200 kg, 250 kg, 300 kg, 500 kg, 750 kg, 1000 kg, etc.).
Electric winches are widely used in places with heavy work and large traction requirements. The electric motor of the single-drum electric winch (pictured) drives the drum through the reducer, and a brake is installed between the electric motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and rotation, there are also double drum and multi-drum winches.
Marine winches series: marine electric winches, marine pneumatic winches, marine ladder winches, marine hand-cranked winches, marine steel rope winches, and marine explosion-proof double drum winches.
