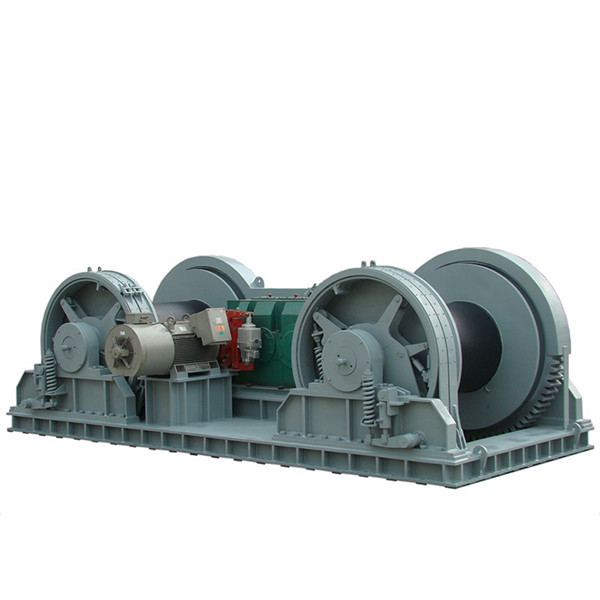

120mm Chain Windlass Mooring Marine Electric Winch

120mm Chain Windlass Mooring Marine Electric Winch

Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CCS, ABS, LR, RMRS, etc
Model Number: Marine Ship Mooring Winches

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: 12.5mm-120mm Marine Windlass Manufacturer Ship Anchor Windlass Mooring Winches Hydraulic Marine Electric Anchor Windlass Application: Boat, Ship, Vessel, Jetty, Port, Dock, Etc
Power Source: Electric/Hydraulic Voltage: AC 380V/220V, 50HZ/60HZ
Cable Dia. (mm): 28-100 Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, Etc
Workload (KN): 6.6-684 Anchor Speed (m/min): ≥9
Anchor Chain Dia.(mm): 12.5-120 Color: Customer Requirement, Blue, Matte Black Or Customer Requirement, Yellow, Black
High Light:

120mm Chain Marine Electric Winch

,

LR Marine Electric Winch

,

Windlass Marine Electric Winch

Product Description

120mm Chain Windlass Mooring Marine Electric Winch

12.5mm-120mm Marine Windlass Manufacturer Ship Anchor Windlass Mooring Winches Hydraulic Marine Electric Anchor Windlass



Specification of Marine Electric Anchor Winch



Deck Equipment Series 1.Mooring Rope/Cable Winch(Hydraulic/Electric)
2.Mooring Anchor Windlass/Winch(Hydraulic/Electric)
3.Mooring Towing Winch
4.Mooring Position Winch
5.Cargo Winch
6.Moving-Boat Winch
7.Scientific Research Winch
8.Linear Winch
9.Double Row Rope Winch
10.Winch Type Towing System
11.Military Bell Winch
12.Offshore Winch
Drive Power Electric /Hydraulic/ Manual/ Diesel
Warping Head,
Gypsy and Drum
Single/Double, Customized
Gypsy Size Dia. 12.5-127mm(U2,U3), Customized
Working Load 1 Ton to 350 Ton, Customized
Warping Head 10KN-100KN, Customized
Holding Load 68KN-3010KN, Customized
Power Required 4-132KW, Customized
Chain Speed ≥9m/min, Customized
Clutch Manual /Hydraulic Operated Jaw Clutch
Brake Spring Applied Pneumatically or Hydraulic Released Band Brake
Release Emergency Quick Release
Control Type Local Control Console and remote Control Panel
Options Drag Brake System;
Length and Tension Monitoring Systems Stainless Steel Brake Drum;
Chain Stopper;
Fairlead, etc
Advantages High quality with competitive prices
Much experience in production and exportion
Special design for different clients.
Short delivery time if clients need urgently
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS





Main Performance Parameters of Electric Windlass
Specification and Name Workload
(KN)
Anchor Speed
(m/min)
12.5mm Electric Windlass 6.6 ≥9
14mm Electric Windlass 8.3 ≥9
16mm Electric Windlass 10.9 ≥9
17.5mm Electric Windlass 13.0/14.6 ≥9
19mm Electric Windlass 15.3/17.2 ≥9
20.5mm Electric Windlass 17.9/20.0 ≥9
22mm Electric Windlass 20.6/23.0 ≥9
24mm Electric Windlass 24.5/27.4 ≥9
26mm Electric Windlass 28.7/32.1 ≥9
28mm Electric Windlass 33.3/37.2 ≥9
30mm Electric Windlass 38.3/42.8 ≥9
32mm Electric Windlass 43.5/48.6 ≥9
34mm Electric Windlass 49.1 / 54.9 ≥9
36mm Electric Windlass 55.1 / 61.6 ≥9
38mm Electric Windlass 61.4 / 68.9 ≥9
40mm Electric Windlass 68.0 / 76.0 ≥9
42mm Electric Windlass 75.0 / 83.8 ≥9
44mm Electric Windlass 82.3 / 92.0 ≥9
46mm Electric Windlass 89.9 / 100.5 ≥9
48mm Electric Windlass 97.9 / 109.4 ≥9
50mm Electric Windlass 106.3 / 118.8 ≥9
52mm Electric Windlass 114.9 / 128.4 ≥9
54mm Electric Windlass 123.9 / 138.5 ≥9
56mm Electric Windlass 133.3 / 149.0 ≥9
56mm Electric Windlass 143.0 / 159.8 ≥9
60mm Electric Windlass 153.0 / 171.0 ≥9
62mm Electric Windlass 163.4 / 182.6 ≥9
64mm Electric Windlass 174.1 / 194.6 ≥9
66mm Electric Windlass 185.1 / 206.9 ≥9
68mm Electric Windlass 196.5 / 219.6 ≥9
70mm Electric Windlass 208.3 / 232.8 ≥9
73mm Electric Windlass 226.5 / 253.1 ≥9
76mm Electric Windlass 245.5 / 274.4 ≥9
78mm Electric Windlass 258.6 / 289.0 ≥9
81mm Electric Windlass 311.7 ≥9
83mm Electric Windlass 327.2 ≥9
84mm Electric Windlass 335.2 ≥9
85mm Electric Windlass 343.2 ≥9
87mm Electric Windlass 359.5 ≥9
90mm Electric Windlass 384.8 ≥9
92mm Electric Windlass 402.0 ≥9
95mm Electric Windlass 428.7 ≥9
97mm Electric Windlass 446.9 ≥9
100mm Electric Windlass 475.0 ≥9
102mm Electric Windlass 494.2 ≥9
105mm Electric Windlass 523.7 ≥9
107mm Electric Windlass 543.8 ≥9
111mm Electric Windlass 585.3 ≥9
112mm Electric Windlass 595.8 ≥9
114mm Electric Windlass 617.3 ≥9
117mm Electric Windlass 650.2 ≥9
120mm Electric Windlass 684.0 ≥9



Main Performance Parameters of Hydraulic Windlass
Specification and Name Workload
AM2/AM3
(KN)
Anchor Speed
(m/min)
12.5mm Hydraulic Windlass 6.6 ≥9
14mm Hydraulic Windlass 8.3 ≥9
16mm Hydraulic Windlass 10.9 ≥9
17.5mm Hydraulic Windlass 13.0/14.6 ≥9
19mm Hydraulic Windlass 15.3/17.2 ≥9
20.5mm Hydraulic Windlass 17.9/20.0 ≥9
22mm Hydraulic Windlass 20.6/23.0 ≥9
24mm Hydraulic Windlass 24.5/27.4 ≥9
26mm Hydraulic Windlass 28.7/32.1 ≥9
28mm Hydraulic Windlass 33.3/37.2 ≥9
30mm Hydraulic Windlass 38.3/42.8 ≥9
32mm Hydraulic Windlass 43.5/48.6 ≥9
34mm Hydraulic Windlass 49.1/54.9 ≥9
36mm Hydraulic Windlass 55.1/61.6 ≥9
38mm Hydraulic Windlass 61.4/68.9 ≥9
40mm Hydraulic Windlass 68.0/76.0 ≥9
42mm Hydraulic Windlass 75.0/83.8 ≥9
44mm Hydraulic Windlass 82.3/92.0 ≥9
46mm Hydraulic Windlass 89.9/100.5 ≥9
48mm Hydraulic Windlass 97.9/109.4 ≥9
50mm Hydraulic Windlass 106.3/118.8 ≥9
52mm Hydraulic Windlass 114.9/128.4 ≥9
54mm Hydraulic Windlass 123.9/138.5 ≥9
56mm Hydraulic Windlass 133.3/149.0 ≥9
58mm Hydraulic Windlass 143.0/159.8 ≥9
60mm Hydraulic Windlass 153.0/171.0 ≥9
62mm Hydraulic Windlass 163.4/182.6 ≥9
64mm Hydraulic Windlass 174.1/194.6 ≥9
66mm Hydraulic Windlass 185.1/206.9 ≥9
68mm Hydraulic Windlass 196.5/219.6 ≥9
70mm Hydraulic Windlass 208/3/232.8 ≥9
73mm Hydraulic Windlass 226.5/253.1 ≥9
76mm Hydraulic Windlass 245.5/274.4 ≥9
78mm Hydraulic Windlass 258.6/289.0 ≥9
81mm Hydraulic Windlass 311.7 ≥9
83mm Hydraulic Windlass 327.2 ≥9
84mm Hydraulic Windlass 335.2 ≥9
85mm Hydraulic Windlass 343.2 ≥9
87mm Hydraulic Windlass 359.5 ≥9
90mm Hydraulic Windlass 384.8 ≥9
