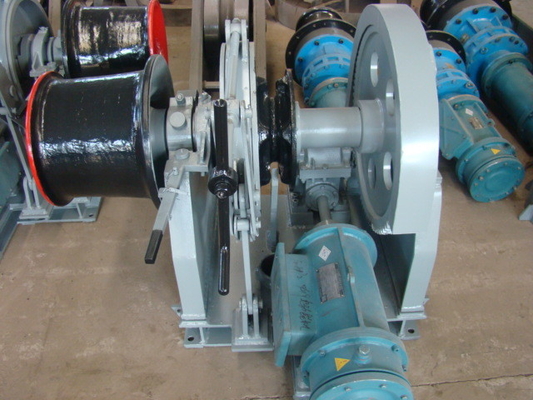

7000KN Ship Steel 64t Marine Towing Winch 12m/Min

7000KN Ship Steel 64t Marine Towing Winch 12m/Min

Product Details:

Place of Origin: China
Brand Name: JV
Certification: LR,CCS,ABS,BV,KR,IRS
Model Number: JVL-86

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Standard export package
Delivery Time: 45-65 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Application: Ship Power Source: Electric
Capacity: 30-7000KN Product Name: Electric Marine Capstan
Color: Matte Black Or Customer Requirement Material: Steel
Warranty: 1 Year Power: DC/AC
High Light:

64t Marine Towing Winch

,

7000KN Marine Towing Winch

,

12m/Min Marine Towing Winch

Product Description

7000KN Ship Steel 64t Marine Towing Winch 12m/Min

Marine Towing Winch 10-64ton Electric Winch Electric Power Winch



Main specification and parameter for Electric mooring winch
Specification of Electric Winch
Rated Pull
(kN)
Rated Speed
(m/min)
Drum Capacity
(m)
Motor Power
(kW)
5KN
5
≥12
Φ8x100
3/1.2
50KN
50
≥15
Φ20.5x180
30/30/22
100KN
100
≥15
Φ30x200
45/45/30
200KN
200
≥9.6
Φ41x250
60/60/45
400KN
400
≥7.8
Φ56x250
85/85/64
600KN
600
≥6
Φ64x250
85/85/65
1000KN
1000
≥4
Φ95x250
85/85/66
2000KN
2000
≥4
Φ100x250
180/180/135



7000KN Ship Steel 64t Marine Towing Winch 12m/Min 0



What are the contents of the annual regular inspection of electric winches?


(1) Check all the screws and nuts of the connecting parts. When they are loose, they must be tightened. If the cotter pins and locking iron wires are lost or damaged, they must be restored.
(2) Check the wear of each bearing, and replace excessively worn bearings.
(3) Check that all lubricating oil/grease pipelines should be free of leakage and blockage.
(4) Check the clutch mechanism and replace the worn parts.
(5) Check the wear of sprocket teeth and chain.
(6) Check the wear of the brake disc (brake hub) and the condition of the pipelines and joints of the cooling system.
(7) Check the wear of the brake blocks.
(8) Thoroughly clean the oil pool.
(9) Check the internal condition of the motor and check the alignment.
(10) Check the status of all pipelines, valves, and pressure gauge actuators of the air control system.
(11) Check all oil seals.





Maintenance and maintenance of electric winches:



1. Before winch maintenance starts, all power supply must be completely cut off. There should be no load in the system.

2. Before the maintenance work is allowed, we recommend users to operate under the work permit system to ensure that all explosion-proof hazards have been assessed by qualified persons.

3. Check the paint condition of the winch every month. If you want to ensure that the metal is not exposed or to prevent corrosion, you must also paint.

4. Make sure that all protective covers are in place.

5. Check the operation of all safety equipment, including the emergency stop system.

6. Check all electrical junction boxes to prevent loose connectors and water or condensate from entering.

7. Ensure that all bolts and screw connections are stable.



Winch:



A winch is a light and small lifting device that uses a reel to wind a steel wire rope or chain to lift or tow heavy objects, also known as a winch. The hoist can lift heavy objects vertically, horizontally, or tilt. There are three types of winches: manual winches, electric winches and hydraulic winches. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building and mine hoisting. It is widely used because of its simple operation, large rope winding volume and convenient displacement. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing.
