270KW Drum Cpacity 100x250m Marine Electric Winch For 10 Ton Tanker

270KW Drum Cpacity 100x250m Marine Electric Winch For 10 Ton Tanker

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Electric Winch Application: Ship Marine Boat Vessel Yacht
Type 1: Mooring Type 2: Anchor
Rated Speed: ≥12m/min Drum Cpacity: Up To ø100x250m
Power: Up To 270KW MOQ: 1 Set
High Light:

270KW Marine Electric Winch

,

100x250m Marine Electric Winch

,

270KW marine anchor winch

Product Description

270KW Drum Cpacity 100x250m Marine Electric Winch For 10 Ton Tanker

Electric Winch For Marine Davit Pulling Trailer 10 Ton Tanker


Specification

Drum Capacity (SWR)(mxmm) Clutch (T) (Txm/min) (Txm/min) (Kw)
500Xφ28 48 20×10 3.5×45 60
500Xφ 32 60 25×10 6.0×35 75
1000X φ32
1000X φ38 76 32×10 8.0×34 90
1000X φ38 96 40×10 10.0×31 110
1200X φ44
1200X φ48 120 50×8 12.0×28 110
1500X φ52 140 60×8 14.0×31 150
1500X φ60 180 75×8 17.0×31 180
1500X φ63 200 85×8 20.0×30 220

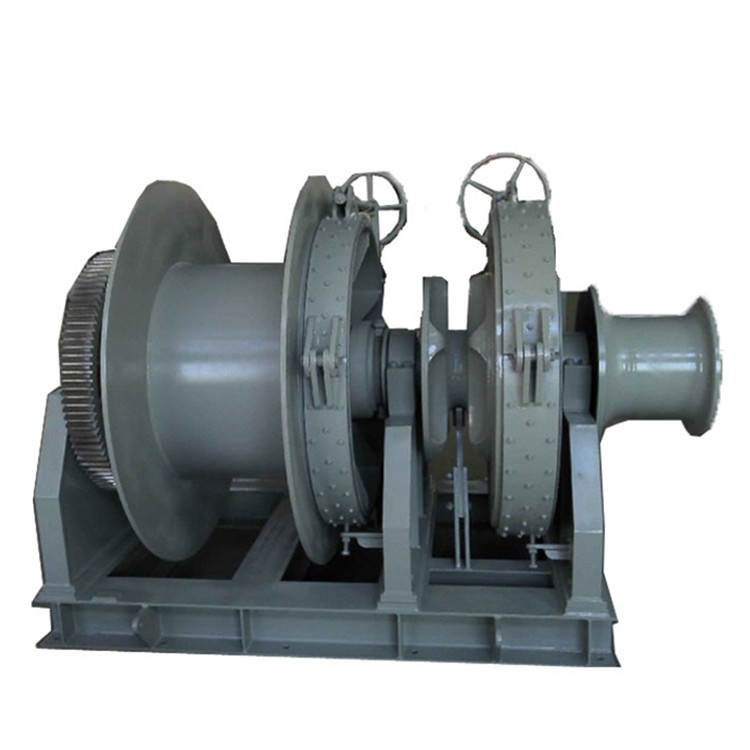

270KW Drum Cpacity 100x250m Marine Electric Winch For 10 Ton Tanker 0

Hydraulic winch

The hydraulic winch is mainly a winch with a larger rated load. Generally, the winch from 10T to 5000T is designed as a hydraulic winch.

Its structure is mainly composed of hydraulic motor (low speed or high speed motor), hydraulic normally closed multi-disc brake, planetary gear box, clutch (optional), reel, support shaft, frame, rope press (optional), etc.

The hydraulic motor has high mechanical efficiency, large starting torque, and can be equipped with different flow distributors according to the requirements of the working conditions.

The valve group can also be designed according to user needs and directly integrated into the motor oil distributor, such as with balance valve, overload valve, High-pressure shuttle valve, speed control valve or other valve groups, brakes, planetary gearboxes, etc. are directly installed in the reel.

The reel, support shaft, and frame are designed according to the mechanical requirements. The overall structure is simple and reasonable and has sufficient Strength and rigidity.

Therefore, this series of winches has the characteristics of compact structure, small size, light weight, beautiful appearance, etc.

In terms of performance, it has the characteristics of good safety, high efficiency, large starting torque, good low speed stability, low noise and reliable operation.

It is worth mentioning that the high volumetric efficiency of the hydraulic motor and the high-quality balance valve of the United States SUN company have solved the secondary sliding and empty hook jitter that are common in general winches, making the lifting, lowering and braking process of this series of hydraulic winches smooth.

The winch with clutch can also be released freely. The integrated valve block installed on the valve plate effectively simplifies the user's hydraulic system.

Because this series of winches has the above advantages, it is widely used in shipbuilding, railway, engineering machinery, petroleum, geological prospecting, metallurgy and other industries, and its excellent performance has been recognized by users.

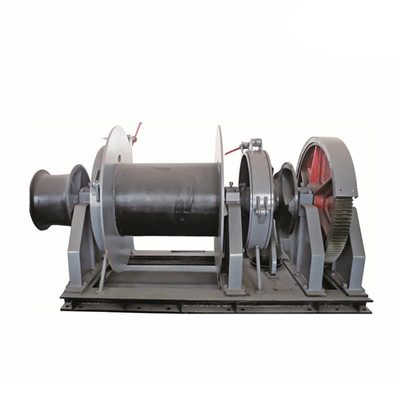

270KW Drum Cpacity 100x250m Marine Electric Winch For 10 Ton Tanker 1



JUVI Company



Our products have sold to regions as far away as Europe, North America and Asia, among others. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.
