22KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator

22KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: Marine Diesel Generator Set Model: For Cumminsdiesel Engine
Power 1: 28KVA - 1650KVA Power 2: 22KW - 1320KW
Cummins Engine Model: 4BT 6BT 6CT NT855 KTA19 KTA38 KTA50 Speed: 1500RPM/1800RPM
Alternator: Stamford,Leroy Somer Or Some Chinese Brand MOQ: 1 Set
High Light:

22KW cummins marine diesel generator

,

KTA50 cummins marine diesel generator

,

KTA19 cummins marine diesel generator

Product Description

22KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator

Marine Diesel Generator Set For Cummins Engine 22KW 1320KW 4BT 6CT KTA19 KTA50





Specification



Genset Technical Data
Genset Model WP-C60GF
Rated Voltage 380/220V(Can be adjusted)
Rated Frequency 50HZ
P.F(COS) 0.8
Prime Power 60KW
Standby Power 66KW
Cummins Engine Data
Engine Model 4BTA3.9-G11
Number of Cylinders 4 cylinders, Vertical in line
Aspiration Turbocharged and after water cooled
Bore×Stroke 102mm x120mm
Displacement 3.9L
Compression ratio 17.3:1
Prime Power/Speed 70KW / 1500rpm
Standby Power/Speed 80KW / 1500rpm
Speed Governor electrical
Cooling System Forced water cooling cycle
Fuel Consumption at 100% Load 208g/kw.h
Alternator Data
Optional brands Stamford/Leroy Somer/Marathon
Prime power 60KW
Frequency/speed 50Hz/1500rpm
Exciter type Single bearing, Brushless, Self-excited with AVR
Power factor 0.8
Voltage adjust range ≥5%
Voltage regulation NL-FL ≤±1%
Insulation Grade H
Protection Grade IP23
Control Panel
Optional brands Deespea/Smartgen/ComAp





Diesel Generator Set Searching Table
Search By Power
5-10kVA 11-15kVA 16-20KVA 21-30KVA
31-40kVA 41-60kVA 61-80kVA 81-100kVA
101-120kVA 121-150kVA 151-200kVA 201-300kVA
301-400kVA 401-500kVA 501-600kVA 601-800kVA
801-1000kVA 1001-2000kVA 2000kVA Above
Search By Engine
Cummins Perkins Yuchai MTU
Mitsubishi Kubota Lovol Volvo Penta
Ricardo Doosan Yangdong WeChai

22KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator 022KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator 122KW 1320KW 4BT 6CT KTA19 KTA50 Cummins Marine Diesel Generator 2



Diesel generator set



Diesel generator set is a kind of power generation equipment with diesel as the main fuel. The diesel engine is used as the motive force to drive the generator (ie electric bulb) to generate electricity, and the kinetic energy is converted into electrical and thermal energy. The complete diesel generator set is mainly divided into three parts:

1. Diesel engine.

2. Generator (ie electric bulb).

3. Controller.



Engine Features:



1. Genuine engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Component



Subdivided into: base, diesel engine, base fuel tank, generator set (ie electric bulb), controller (playing a control role and also protecting the set), radiator (air cooling: fan; water cooling: water tank ), silent box and other components.

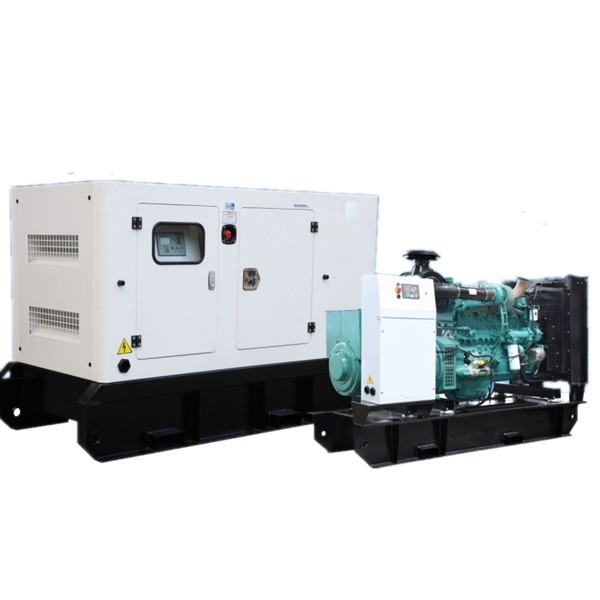

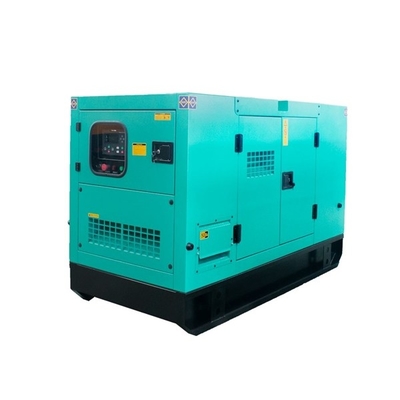

According to the different needs of different places, we divide the generator into fixed and movable trailers. In order to reduce the noise emitted by the generator set and reduce the impact on people's work and life, we have prompted designers to design a power generation with silent box The unit is to install a metal box outside the generator set with sound-absorbing material inside to protect the generator set. Doors are set on both sides of the box to facilitate the maintenance and control of the generator set.



The silent box not only reduces the noise generated by the generator set, but also can be placed outdoors. The box is like a house, sun-proof and rain-proof, saving people the trouble of having no place to build a machine room.



Parts



Diesel generators are composed of common generator sets and standby generator sets, and the power is divided into common power and standby power accordingly. The standard common power of each generator set is generally 80% of the standby power.



According to different needs, usually use the national grid, if you need it due to power failure, please use the standby diesel generator set; if you need to run for a long time, please choose the commonly used diesel generator set, if frequent maintenance, the commonly used diesel generator set runs every year The time can be more than 300 days.



The relationship between common power and standby power is: for example, the user needs a 100KW diesel generator set, and the common power of a 100KW diesel generator set is 100KW*80%=80KW. That is, the usual power of a spare 100KW diesel generator set is 80KW.



If the diesel generator set is equipped with a silent box, the power of the generator set will drop, generally by about 10%. Therefore, when the user chooses a diesel generator set, the power drop of the silent box should be considered.
