• DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set
  • DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set

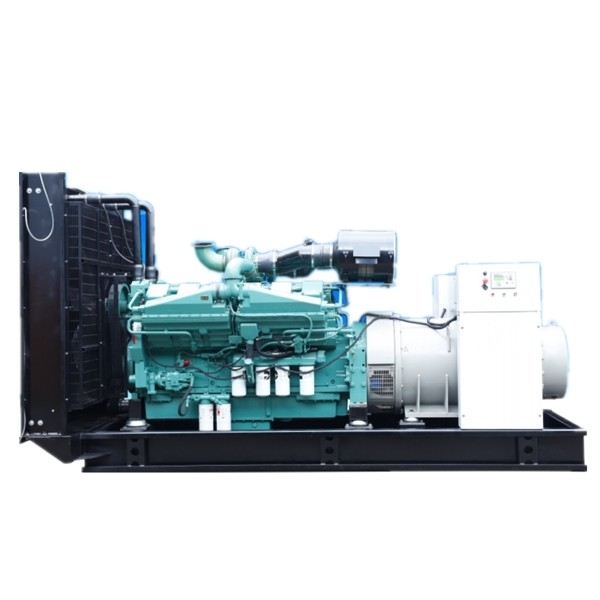

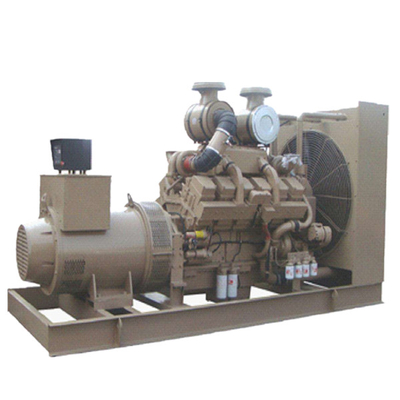

DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set

DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Certification: CCS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: Marine Diesel Generator Set Model: For Cummins Diesel Engine
Power 1: 28KVA - 1650KVA Power 2: 22KW - 1320KW
Cummins Engine Model: 4BT 6BT 6CT NT855 KTA19 KTA38 KTA50 Speed: 1500RPM/1800RPM
Alternator: 50hz 60hz MOQ: 1 Set
High Light:

300KW Marine Diesel Generator Set

,

375KVA Marine Diesel Generator Set

,

1800RPM Marine Diesel Generator Set

Product Description

DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set

Open Silent Boat Ship Diesel Engine Genset For Cummins DCEC CCEC 6BT NT855 KTA38





Specification



Diesel generator Details
Model JHK-300GF
Power 300KW|375KVA
Frequency 60HZ
Voltage 208/120v(voltage can be customized)
Optional Type Open
Size of Open type 3000*1050*1700mm
Weight of Open type 2600kg
With Diesel Engine
Brand&model Cummins NTA855-G1B
Prime Power 313KW
Standby Power 347KW
Bore*Stroke 140*152mm
Cylinders 6 in L arrangement
Displacement 14L
Speed Governor Electric
With Alternator
Optional Brands Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type Single bearing,brushless,Self-excited
Power factor 0.8
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
With Controller





Diesel Generator Set Searching Table
Search By Power
5-10kVA 11-15kVA 16-20KVA 21-30KVA
31-40kVA 41-60kVA 61-80kVA 81-100kVA
101-120kVA 121-150kVA 151-200kVA 201-300kVA
301-400kVA 401-500kVA 501-600kVA 601-800kVA
801-1000kVA 1001-2000kVA 2000kVA Above
Search By Engine
Cummins Perkins Yuchai MTU
Mitsubishi Kubota Lovol Volvo Penta
Ricardo Doosan Yangdong WeChai

DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set 0DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set 1DCEC CCEC 6BT NT855 KTA38 300KW 375KVA Cummins Marine Diesel Generator Set 2



Soundproof/Silent Box:



1. Excellent ventilation

2. Oil tank mounted on base frame for 10 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



Control Panel:



1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop



Optional:



1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system



Power calibration



Diesel generator set is a combination of diesel engine and synchronous alternator. The maximum power allowed by the diesel engine is limited by the mechanical load and thermal load of the parts. Therefore, it is necessary to specify the maximum power allowed for continuous operation as the rated power;



Diesel engines should not exceed the rated power, otherwise it will shorten their service life and may even cause accidents.



National standards stipulate that the rated power on the diesel engine nameplate is divided into the following four categories:



1) 15min power: the maximum power that the diesel engine is allowed to run for 15min. In a short period of time, it may be overloaded and require calibration power with acceleration performance, such as the calibration power of diesel engines such as automobiles and motorcycles.



2) 1h power: the maximum effective power that the diesel engine allows for continuous operation for 1h. Such as the calibrated power of diesel engines such as wheeled tractors, locomotives and ships.



3) 12h power: the maximum effective power that the diesel engine allows for continuous operation for 12h, which is the rated power we often say. Such as power station units, diesel engines for engineering machinery calibrated power.



Continuous power: the maximum power that the diesel engine allows for long-term continuous operation.
