• Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch
  • Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch

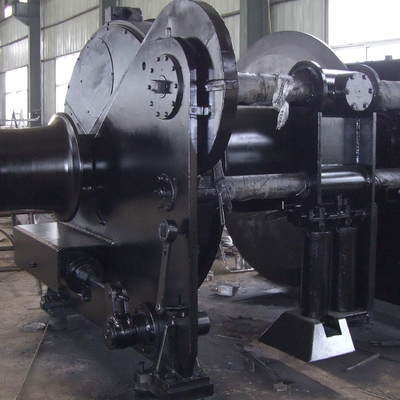

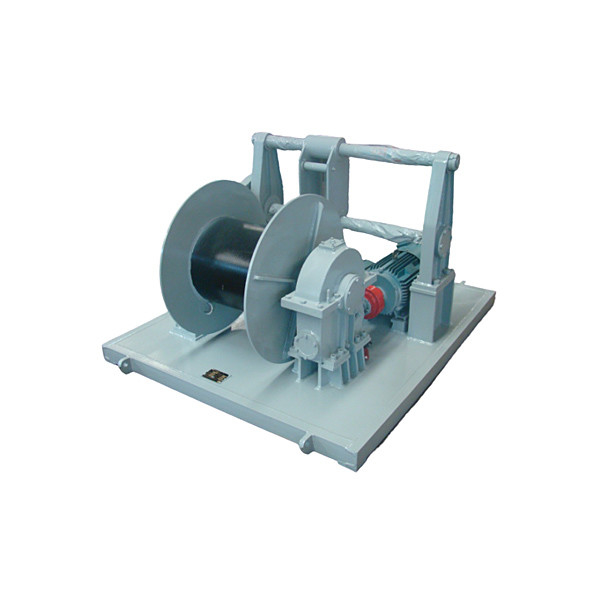

Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch

Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch

Product Details:

Place of Origin: China
Brand Name: JV
Certification: LR,CCS,ABS,BV
Model Number: JVL-19

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $1500-15000/Set
Packaging Details: Standard export package
Delivery Time: 45-65 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Application: Ship Power Source: Electric
Capacity: 60-7500KN Product Name: Electric Mooring Winch
Color: Customer Requirement Material: Steel
Warranty: 1 Year Power: 12v/24v
High Light:

160KN Marine Electric Winch

,

200KN Marine Electric Winch

,

160KN wire rope winch

Product Description

Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch

High-Speed Electric Winch 160KN Electric Wire Rope Winch Mooring Electric Winch





Application feature 1:



Simple operation. As far as the application of hydraulic winches is concerned, when everyone must use it to carry out the actual lifting and lowering of materials, they can perform the lifting and lower of materials based on relatively simple actual operations. You can see this type of hydraulic motor winch machinery and equipment. At the application level, it can present the characteristics of simple operation.



Application feature 2:



Easy to use. Because hydraulic winches often have good acceptability for the types of materials and application scenarios, they can lift and lower a variety of different materials in a variety of different application scenarios. Therefore, when everyone uses machinery and equipment, they can start lifting materials anytime and anywhere in many different natural environments. Therefore, it can be seen that this type of machinery and equipment is in use, showing the characteristics of ease of use.



The hidden danger of winch



The winch has the advantages of large carrying capacity, stable and reliable hosting, and a wide range of operating speeds. It is widely used. However, due to the lack of awareness and effective methods for the safe use of the winch, production accidents are often caused.



The hoist is not firmly fixed and the ground anchor is not firmly set, causing the hoist to shift and overturn.



There is no protective device on the drum to prevent the wire rope from slipping off or the protective device is set unreasonably and unreliably, causing the wire rope to leave the hoist.



The end of the wire rope is not fixed or the fixing does not meet the requirements, causing the wire rope to fall off.



The winch brake failed and could not be positioned.



Inaccurate positioning of the shaft end of the rope drum causes fatigue fracture of the shaft.



Main specification and parameter for Electric mooring winch
Specification of Electric Winch
Rated Pull
(kN)
Rated Speed
(m/min)
Drum Capacity
(m)
Motor Power
(Kw)
5KN
5
≥12
Φ8x100
3/1.2
50KN
50
≥15
Φ20.5x180
30/30/22
100KN
100
≥15
Φ30x200
45/45/30
200KN
200
≥9.6
Φ41x250
60/60/45
400KN
400
≥7.8
Φ56x250
85/85/64
600KN
600
≥6
Φ64x250
85/85/65
1000KN
1000
≥4
Φ95x250
85/85/66
2000KN
2000
≥4
Φ100x250
180/180/135



Motor Power 60Kw High Speed 160KN 200KN Marine Electric Winch 0
