Dia 57mm Cylinder Liner Kit Marine Engine Spare Parts For Wechai / Cummins

Dia 57mm Cylinder Liner Kit Marine Engine Spare Parts For Wechai / Cummins

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Marine Engine Spare Parts Application: Ship Marine Boat Vessel Yacht
Product Name: Cylinder Liner Kit Engine Type:: Diesel / 6 Cylinders
Engine: Wechai/ Cummins/ Yuchai/ Zichai/ / Etc. Cylinder: Block: Cylinder Liner, Oil Seal, Crankshaft, Main Bearing
Camshaft:: Camshaft, Gear, Cam Follower, Rocker Lever Cover Cyliner Head:: Intake/exhaust Valve, Guide, Spring
High Light:

57mm Marine Engine Spare Parts

,

TS16949 Marine Engine Spare Parts

,

57mm Cylinder Liner Kit

Product Description

Dia 57mm Cylinder Liner Kit Marine Engine Spare Parts For Wechai / Cummins

Cylinder Liner Kit For Wechai Cummins Yuchai Zichai Diesel Engine Repair





Specification



Size: Standard Size
Type: Cylinder liner
Certification: TS16949 & IS09002
Diameter: 57mm
Car Model: Yuchai YC6105ZQC
CO NO.: 1131311-1305-011
Structure: Digital Cylinder
Body Material: Aluminum
Engine Type: Diesel / 6 Cylinders
Power: Hydraulic
SPECIALLY: Engine Cylinder Liner



Main spare parts list
Gaskets: upper/lower gaskets, pump/turbocharger repair kits
Filter: oil filter, air filter, fuel filter, water filter
Pump: water pump,fuel pump, oil pump, sea water pump
Cylinder Block: cylinder liner, oil seal, crankshaft, main bearing
Camshaft: camshaft, gear, cam follower, rocker lever cover
Cyliner Head: intake/exhaust valve, guide, spring
Connecting Rod And Piston: piston, piston ring, piston pin,connecting rod bearing
Starter, alternator
Fan, fan hub, fan belt, fan spacer
Oil pan, exhaust manifold, connection, hose
Injector and injector parts

Turbocharger, flywheel, belt

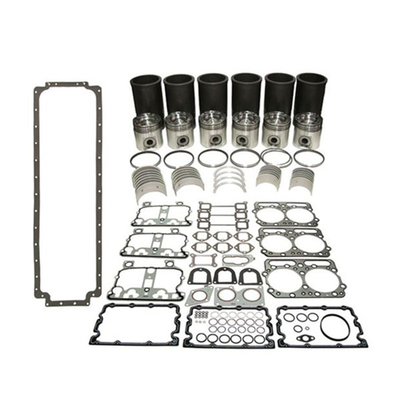

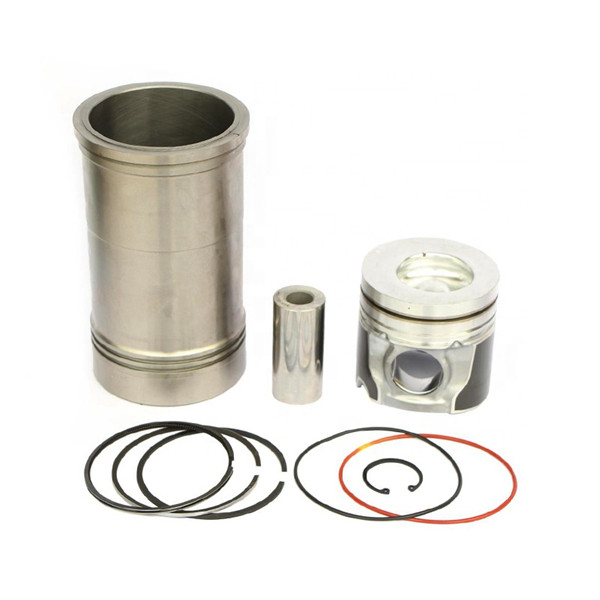

Dia 57mm Cylinder Liner Kit Marine Engine Spare Parts For Wechai / Cummins 0Dia 57mm Cylinder Liner Kit Marine Engine Spare Parts For Wechai / Cummins 1



Cylinder liner



The cylinder liner is a cylindrical part, which is placed in the cylinder body hole of the engine block, and is pressed and fixed by the cylinder head. The piston reciprocates in its inner hole and is cooled by cooling water outside.



The function of the cylinder liner



1. Together with the cylinder head and the piston, the cylinder working space is formed.

2. The cylinder liner of the cylindrical piston diesel engine bears the thrust of the piston side and becomes the lead of the reciprocating movement of the piston.

3. Transfer the heat of the piston assembly and itself to the cooling water to make it work at a proper temperature.

4. The cylinder liner of the two-stroke diesel engine is equipped with gas ports, which are opened and closed by the piston to realize gas distribution.



Working conditions of cylinder liner



The inner surface of the cylinder liner is directly affected by the high temperature and high pressure gas, and always has high-speed sliding friction with the piston ring and piston skirt. The surface is in contact with the cooling water, causing severe thermal stress under a large temperature difference, and being corroded by the cooling water. The side thrust of the piston on the cylinder liner not only intensifies the friction of the inner surface, but also causes it to bend. When the side thrust changes direction, the piston also hits the cylinder liner. In addition, it is subject to greater installation preload.



The gas pressure causes the cylinder wall to produce tangential tensile stress and radial compressive stress, and the inner surface is the largest. This stress is a high-frequency pulsating stress.



Due to the extreme thermal stress caused by the temperature difference between the inside and outside of the cylinder wall, compressive stress is generated on the inner surface and tensile stress exists on the cooling surface at general temperature. However, under extremely high temperatures, the metal near the inner surface creeps plastically, and after cooling, residual tensile stress is formed on the inner surface. This low-frequency stress caused by changes in starting and stopping will cause material fatigue.
